COMPONENTS (REMOVAL)

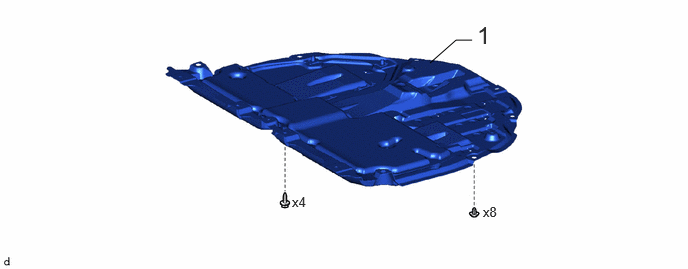

Fig 1: Water Pump Removal Components (1 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Procedure		Part Name Code	Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
1	NO. 1 ENGINE UNDER COVER ASSEMBLY	51410	-	-	-

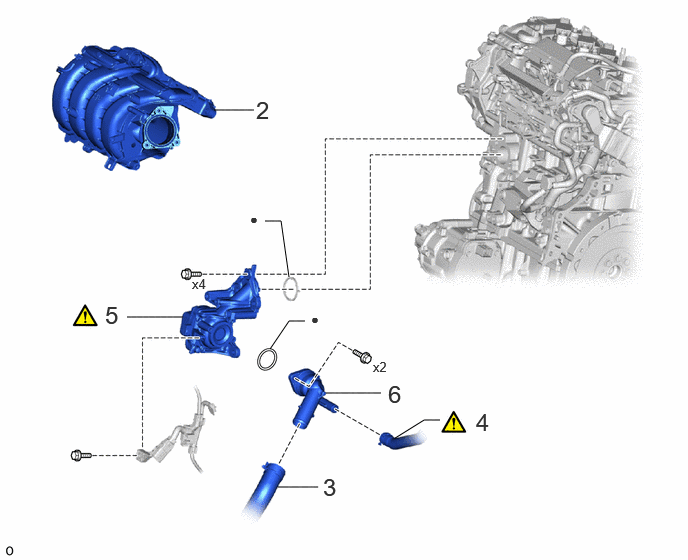

Fig 2: Water Pump Removal Components (2 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Procedure		Part Name Code	Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2	INTAKE MANIFOLD	17111	-	-	-
3	NO. 2 RADIATOR HOSE	16572D	-	-	-
4	NO. 7 WATER BY-PASS HOSE	-	See step 4	-	-
5	ENGINE WATER PUMP ASSEMBLY (WATER INLET HOUSING)	16032	See step 5	-	-
6	WATER INLET WITH THERMOSTAT SUB-ASSEMBLY	16031	-	-	-

•

Non-reusable part

The necessary procedures (adjustment, calibration, initialization or registration) that must be performed after parts are removed and installed, or replaced during engine water pump assembly (water inlet housing) removal/installation are shown below.

NECESSARY PROCEDURES AFTER PARTS REMOVED/INSTALLED/REPLACED

Replaced Part or Performed Procedure	Necessary Procedure	Effect/Inoperative Function when Necessary Procedure not Performed	Link
Replacement of throttle body with motor assembly Cleaning the deposits from the throttle body with motor assembly Gas leak from exhaust system is repaired	Inspection After Repair	Poor idle, etc. Engine start function, etc.	Refer to INITIALIZATION [11/2022 - ]

HINT:

When the cable is disconnected/reconnected to the auxiliary battery terminal, systems temporarily stop operating. However, each system has a function that completes learning the first time the system is used.

Learning completes when vehicle is driven

Effect/Inoperative Function When Necessary Procedures are not Performed	Necessary Procedures	Link
Front Camera System	Drive the vehicle straight ahead at 15 km/h (10 mph) or more for 1 second or more.	Refer to INITIALIZATION [11/2022 - ]

Learning completes when vehicle is operated normally

Effect/Inoperative Function When Necessary Procedures are not Performed	Necessary Procedures	Link
Power door lock control system Back door opener	Perform door unlock operation with door control switch or electrical key transmitter sub-assembly switch.	Refer to INITIALIZATION [11/2022 - ]
Power back door system	Fully close the back door by hand. HINT: Initialization is not necessary if the above procedures are performed while the back door is closed.	Refer to INITIALIZATION [09/2021 - ]
Air conditioning system	After the ignition switch is turned to ON, the servo motor standard position is recognized.	-
