Components [11/2022 - ]

WARNING: This page is about a different car, the 2025 Toyota Corolla Cross, 2024 Toyota Corolla Cross, and 2023 Toyota Corolla Cross. However, it is still accessible from the selected car via links, so may be relevant.

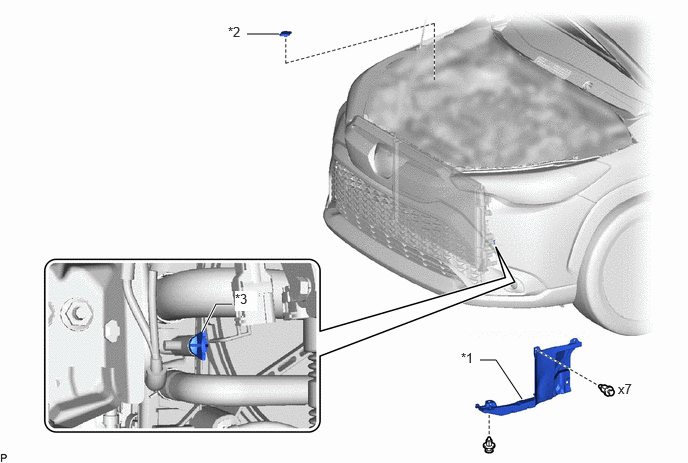

Fig 1: Coolant (For Engine Coolant) Replacement Components
GTY1105598Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
*1 REAR ENGINE UNDER COVER LH *2 RADIATOR CAP SUB-ASSEMBLY
*3 RADIATOR DRAIN COCK PLUG - -
