COMPONENTS (REMOVAL)

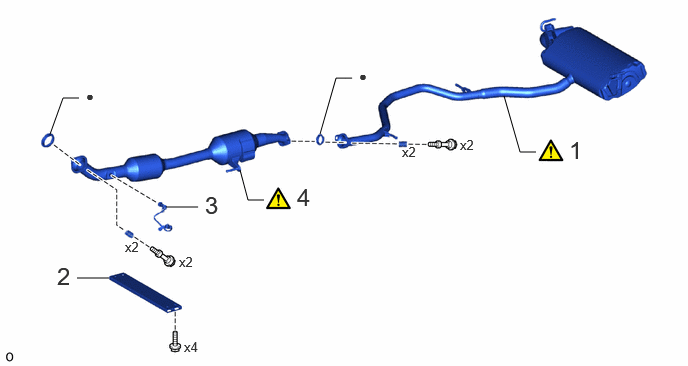

Fig 1: Exhaust Pipe Removal Components

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Procedure		Part Name Code	Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
1	TAIL EXHAUST PIPE ASSEMBLY	17430	See step 1	-	-
2	FRONT FLOOR CENTER BRACE	57533B	-	-	-
3	NO. 2 AIR FUEL RATIO SENSOR	89467B	-	-	-
4	FRONT EXHAUST PIPE ASSEMBLY	17410	See step 4	-	-

•

Non-reusable part

The necessary procedures (adjustment, calibration, initialization or registration) that must be performed after parts are removed and installed, or replaced during front exhaust pipe assembly (TWC: Rear Catalyst) and tail exhaust pipe assembly removal/installation are shown below.

NECESSARY PROCEDURES AFTER PARTS REMOVED/INSTALLED/REPLACED

Replaced Part or Performed Procedure	Necessary Procedure	Effect/Inoperative Function when Necessary Procedure not Performed	Link
Gas leak from exhaust system is repaired	Inspection after repair	Poor idle, etc. Engine start function, etc.	Refer to INITIALIZATION [11/2022 - ]

WARNING:

To prevent burns, do not touch the engine, exhaust pipe or other high temperature components while the engine is hot.
