COMPONENTS (REMOVAL)

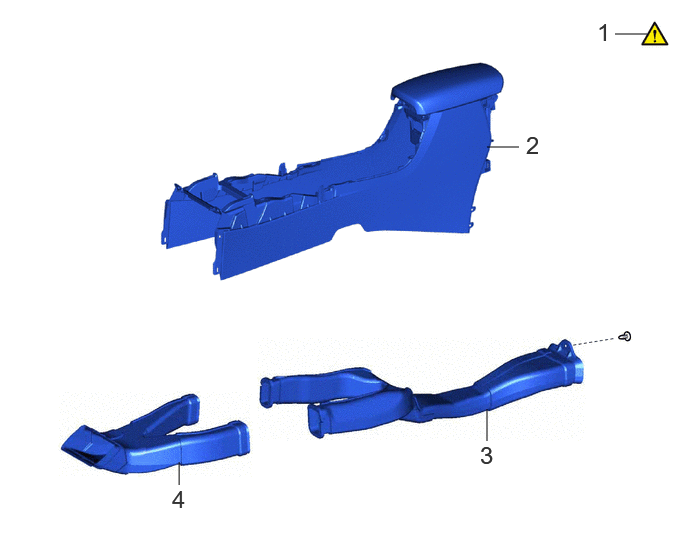

Fig 1: Transmission Control Cable Removal Components (1 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Procedure		Part Name Code	Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
1	SECURE VEHICLE	-	See step 1	-	-
2	CONSOLE BOX ASSEMBLY	58810J	-	-	-
3	NO. 2 CONSOLE BOX DUCT	58862B	-	-	-
4	NO. 1 CONSOLE BOX DUCT	58861B	-	-	-

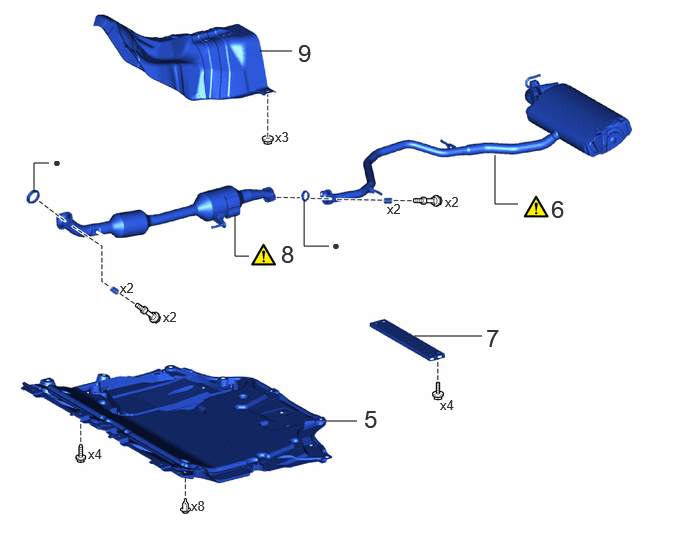

Fig 2: Transmission Control Cable Removal Components (2 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Procedure		Part Name Code	Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
5	NO. 1 ENGINE UNDER COVER ASSEMBLY	51410	-	-	-
6	TAIL EXHAUST PIPE ASSEMBLY	17430	See step 6	-	-
7	FRONT FLOOR CENTER BRACE	57533B	-	-	-
8	FRONT EXHAUST PIPE ASSEMBLY	17410	See step 8	-	-
9	FRONT NO. 1 FLOOR HEAT INSULATOR	58151	-	-	-

•

Non-reusable part

Fig 3: Transmission Control Cable Removal Components (3 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Procedure		Part Name Code	Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
10	DISCONNECT TRANSMISSION CONTROL CABLE ASSEMBLY (Shift Lever Side)	33820B	See step 10	-	-
11	DISCONNECT TRANSMISSION CONTROL CABLE ASSEMBLY (Transaxle Side)	33820B	See step 11	-	-
12	TRANSMISSION CONTROL CABLE ASSEMBLY	33820B	See step 12	-	-

•

Non-reusable part

The necessary procedures (adjustment, calibration, initialization or registration) that must be performed after parts are removed and installed, or replaced during transmission control cable assembly removal/installation are shown below.

NECESSARY PROCEDURES AFTER PARTS REMOVED/INSTALLED/REPLACED

Replaced Part or Performed Procedure	Necessary Procedure	Effect/Inoperative Function when Necessary Procedure not Performed	Link
Gas leak from exhaust system is repaired	Inspection After Repair	Poor idle, etc. Engine start function, etc.	Refer to INITIALIZATION [11/2022 - ]

WARNING:

To prevent burns, do not touch the engine, exhaust pipe or other high temperature components while the engine is hot.
