Removal [11/2022 - ]: Procedure

1. Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   1. Fully apply the parking brake and chock a wheel.
      WARNING:

      • Make sure to apply the parking brake and chock a wheel before performing this procedure.
      • If the vehicle is not secure and the shift lever is moved to N, the vehicle may suddenly move, possibly resulting in an accident or serious injury.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

NOTE: Be careful not to damage the shift lock release button cover and position indicator housing assembly.

1. Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

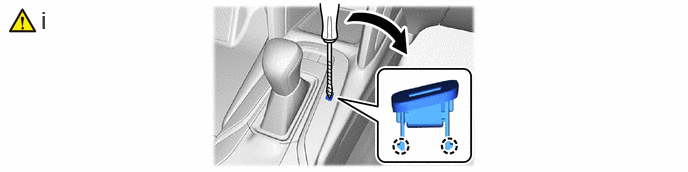

   1. Using a screwdriver with its tip wrapped with protective tape, disengage the 2 claws to remove the shift lock release button cover from the position indicator housing assembly.

Refer to PROCEDURE - Step 15 [11/2022 - 11/2023] , or refer to PROCEDURE - Step 14 [11/2023 - ]

Refer to PROCEDURE - Step 22

Refer to PROCEDURE - Step 23

1. Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *a	Stopper	*b	Nut
   *c	Turn approximately 180°	-	-

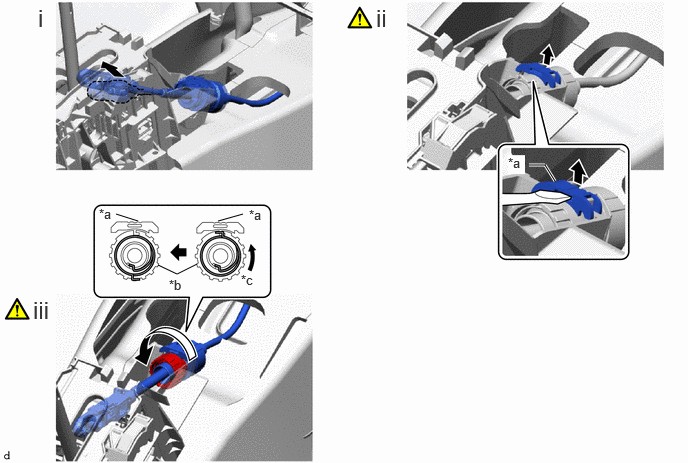

   1. Disconnect the end of the transmission control cable assembly from the transmission floor shift assembly.
   2. Using a screwdriver, pull out the stopper of the transmission control cable assembly.
      NOTE:

      Do not remove the stopper. If it is removed, reinstall it to its original position.

   3. Rotate the nut of the transmission control cable assembly approximately 180° counterclockwise and, while holding the nut in that position, disconnect the transmission control cable assembly from the transmission floor shift assembly.
      NOTE:

      • Do not turn the nut excessively as the internal spring may come off and the transmission control cable assembly will not be reusable.
      • Do not forcibly pull the transmission control select cable assembly into the cabin.

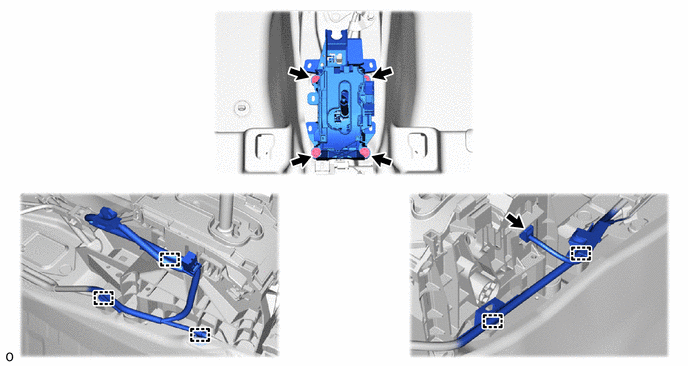

1. Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
