Inspection [11/2022 - ]: Procedure
WARNING: This page is about a different car, the 2025 Toyota Corolla Cross, 2024 Toyota Corolla Cross, and 2023 Toyota Corolla Cross. However, it is still accessible from the selected car via links, so may be relevant.
- INSPECT SHIFT LOCK CONTROL ECU
HINT:
If the results of the following inspections are as specified but a malfunction has occurred, replace the shift lock control unit assembly.
- Inspect wire harness:
- Disconnect the shift lock control ECU connector.
- Measure the voltage according to the value(s) in the table below.

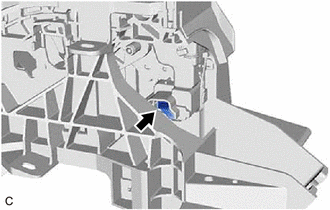

*a Front view of wire harness connector
(to Shift Lock Control ECU)Standard Voltage
Tester Connection Condition Specified Condition 5 (IG) - Body ground Ignition switch ON 11 to 14 V Ignition switch off Below 1 V If the result is not as specified, repair or replace the shift lock control ECU wire harness.
- Measure the voltage according to the value(s) in the table below.
*a Front view of wire harness connector
(to Shift Lock Control ECU)Standard Voltage
Tester Connection Condition Specified Condition 4 (STP) - Body ground Ready ON, brake pedal depressed 11 to 14 V Ready ON, brake pedal released Below 1 V If the result is not as specified, repair or replace the wire harness or connector or replace the hybrid vehicle control ECU assembly.
- Measure the resistance according to the value(s) in the table below.
Standard Resistance
Tester Connection Condition Specified Condition 1 (E) - Body ground Always Below 1 Ω *a Front view of wire harness connector
(to Shift Lock Control ECU)If the result is not as specified, repair or replace the shift lock control ECU wire harness.
- Disconnect the shift lock control ECU connector.
- Inspect shift lock solenoid:
- Disconnect the shift lock solenoid connector.
- Measure the resistance according to the value(s) in the table below.

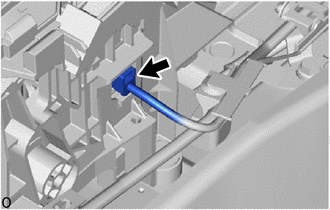

*a Front view of wire harness connector
(to Shift Lock Solenoid)Standard Resistance
Tester Connection Condition Specified Condition 4 (P) - 3 (E2) Shift lever in P 10 kΩ or higher Shift lever not in P Below 1 Ω If the result is not as specified, replace the shift lock control unit assembly.
- Measure the resistance according to the value(s) in the table below.
*a Front view of wire harness connector
(to Shift Lock Solenoid)Standard Resistance
Tester Connection Condition Specified Condition 1 (SLS+) - 2 (SLS-) Always 112 Ω If the result is not as specified, replace the shift lock control unit assembly.
- Disconnect the shift lock solenoid connector.
- Inspect wire harness:
