Removal [11/2022 - ]: Procedure

WARNING: This page is about a different car, the 2025 Toyota Corolla Cross, 2024 Toyota Corolla Cross, and 2023 Toyota Corolla Cross. However, it is still accessible from the selected car via links, so may be relevant.
  1. REMOVE SHIFT LEVER KNOB SUB-ASSEMBLY

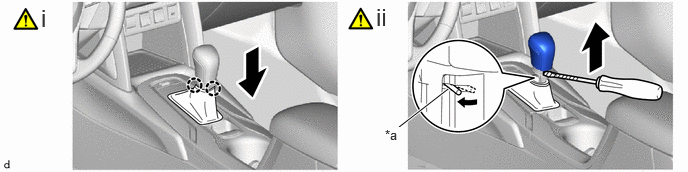

    1. GTY1112208Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Clip - -
      1. Disengage the 2 claws to disconnect the shifting hole cover sub-assembly as shown in the illustration.
      2. Using a screwdriver with its tip wrapped with protective tape, expand the LH side clip and pull out the shift lever knob sub-assembly from the transmission floor shift assembly as shown in the illustration.
        NOTE:

        Be careful not to damage the shift lever knob sub-assembly.
