COMPONENTS (REMOVAL)
| Procedure | Part Name Code | ||||
|---|---|---|---|---|---|

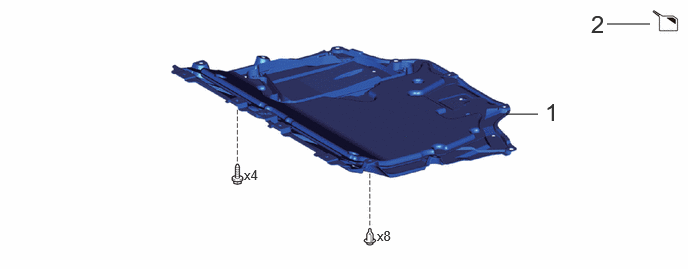

| 1 | NO. 1 ENGINE UNDER COVER ASSEMBLY | 51410 | - | - | - |
| 2 | DRAIN COOLANT (for Inverter) | - | - | - | |
| Procedure | Part Name Code | ||||
|---|---|---|---|---|---|

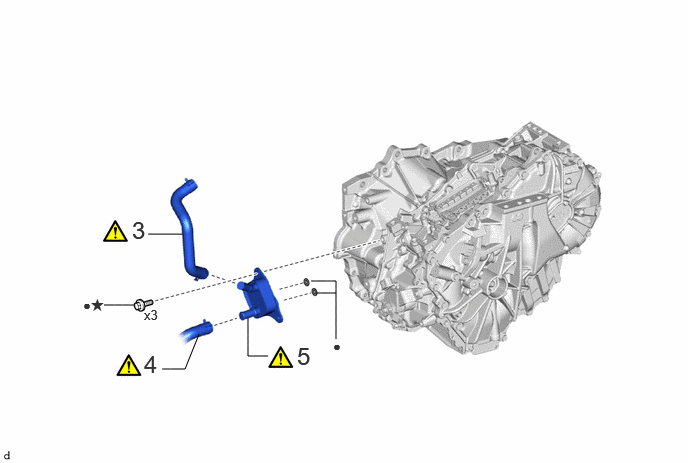

| 3 | NO. 1 INVERTER COOLING OUTLET HOSE | G922C | See step 4 | - | - |
| 4 | NO. 2 INVERTER COOLING OUTLET HOSE | G922D | See step 2 | - | - |
| 5 | MOTOR COOLING COOLER | G125AA | See step 3 | - | - |
| • | Non-reusable part | * | Precoated part |
The necessary procedures (adjustment, calibration, initialization, or registration) that must be performed after parts are removed and installed, or replaced during motor cooling cooler removal/installation are shown below.
NECESSARY PROCEDURES AFTER PARTS REMOVED/INSTALLED/REPLACED
| Replaced Part or Performed Procedure | Necessary Procedure | Effect/Inoperative Function when Necessary Procedure not Performed | Link |
|---|---|---|---|
| Replacement of inverter with converter assembly | Resolver learning |
|
Refer to UTILITY [11/2022 - ] |
WARNING:
- This vehicle has contains high voltage circuits standardized with orange colored wiring and connectors, so follow the instructions in appropriate service information
to perform the procedures correctly.
Refer to PRECAUTION [11/2022 - 12/2024] , or refer to PRECAUTION [12/2024 - ]
- If the correct procedures are not followed according to the instructions in appropriate service information , there is a danger of electric shock from the high voltage circuits.
- Be sure to wear insulating gloves when working on high voltage wiring or components.
- If work is performed without wearing insulating gloves, there is a danger of electric shock.
HINT:
When the cable is disconnected / reconnected to the auxiliary battery terminal, systems temporarily stop operating. However, each system has a function that completes learning the first time the system is used.
- Learning completes when vehicle is driven
Effect/Inoperative Function When Necessary Procedures are not Performed Necessary Procedures Link Front Camera System Drive the vehicle straight ahead at 15 km/h (10 mph) or more for 5 second or more. Refer to INITIALIZATION [11/2022 - ] - Learning completes when vehicle is operated normally
Effect/Inoperative Function When Necessary Procedures are not Performed Necessary Procedures Link Power door lock control system - Back door opener
Perform door unlock operation with door control switch or electrical key transmitter sub-assembly switch. Refer to INITIALIZATION [11/2022 - ] Power back door system Fully close the back door by hand.
