Replacement [11/2022 - ]: Procedure

WARNING: This page is about a different car, the 2025 Toyota Corolla Cross, 2024 Toyota Corolla Cross, and 2023 Toyota Corolla Cross. However, it is still accessible from the selected car via links, so may be relevant.
  1. REMOVE FRONT DRIVE SHAFT ASSEMBLY

    Refer to REMOVAL [11/2022 - ]

  2. REMOVE FRONT DRIVE SHAFT OIL SEAL LH
    1. Using SST, remove the front drive shaft oil seal LH from the hybrid vehicle transaxle assembly.

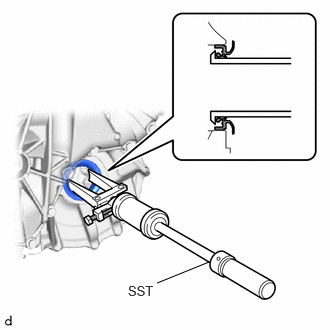

      GTY1117093Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      • SST: 09308-00010
      NOTE:

      Be careful not to damage the hybrid vehicle transaxle assembly.

  3. REMOVE FRONT DRIVE SHAFT OIL SEAL RH
    1. Using SST, remove the front drive shaft oil seal RH from the hybrid vehicle transaxle assembly.

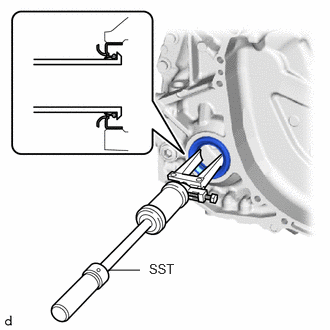

      GTY1110667Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      • SST: 09308-00010
      NOTE:

      Be careful not to damage the hybrid vehicle transaxle assembly.

  4. INSTALL FRONT DRIVE SHAFT OIL SEAL RH
    1. Using SST and a hammer, install a new front drive shaft oil seal RH to the hybrid vehicle transaxle assembly.

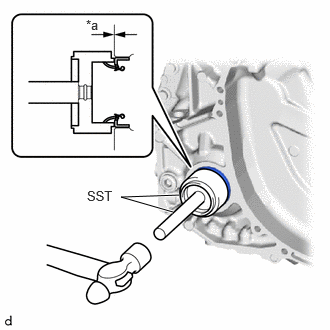

      GTY1118188Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Depth
      • SST: 09316-1001009950-70010
        1. 09951-07100

      Standard Depth

      -0.5 to 0.5 mm (-0.0197 to 0.0197 in.)

      NOTE:
      • Make sure that the outer lip of the front drive shaft oil seal RH is not pinched by SST.
      • Do not allow foreigh matter to attach to the inner lip and outer lip of the front drive shaft oil seal RH.
      • Do not install the front drive shaft oil seal RH at an angle.
      • Do not remove the grease from the inner lip and outer lip of the front drive shaft oil seal RH.
      GTY1119118Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Correct
      *b Incorrect
      *c Outer Lip
  5. INSTALL FRONT DRIVE SHAFT OIL SEAL LH
    1. Using SST and a hammer, install a new front drive shaft oil seal LH to the hybrid vehicle transaxle assembly.
      • SST: 09316-2001109517-30010

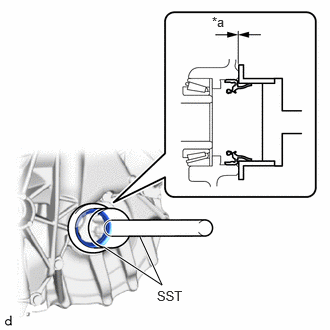

      GTY1118583Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Depth

      Standard Depth

      -0.5 to 0.5 mm (-0.0197 to 0.0197 in.)

      NOTE:
      • Make sure that the outer lip of the front drive shaft oil seal LH is not pinched by SST.
      • Do not allow foreigh matter to attach to the inner lip and outer lip of the front drive shaft oil seal LH.
      • Do not install the front drive shaft oil seal LH at an angle.
      • Do not remove the grease from the inner lip and outer lip of the front drive shaft oil seal LH.
      GTY1116266Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Correct
      *b Incorrect
      *c Outer Lip
  6. INSTALL FRONT DRIVE SHAFT ASSEMBLY

    Refer to INSTALLATION [11/2022 - ]
