Parts Location [11/2022 - ]: Illustration
WARNING: This page is about a different car, the 2025 Toyota Corolla Cross, 2024 Toyota Corolla Cross, and 2023 Toyota Corolla Cross. However, it is still accessible from the selected car via links, so may be relevant.
 Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
|

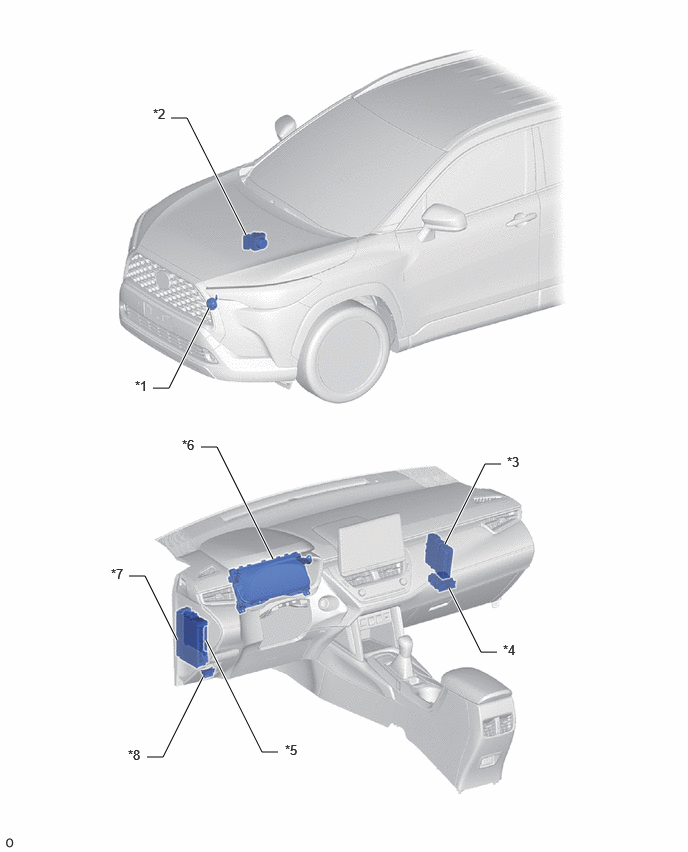

| *1 |
VEHICLE APPROACHING SPEAKER ASSEMBLY |
*2 |
SKID CONTROL ECU (BRAKE ACTUATOR ASSEMBLY) |
| *3 |
HYBRID VEHICLE CONTROL ECU |
*4 |
VEHICLE APPROACHING SPEAKER CONTROLLER |
| *5 |
MAIN BODY ECU (MULTIPLEX NETWORK BODY ECU) |
*6 |
COMBINATION METER ASSEMBLY |
| *7 |
POWER DISTRIBUTION BOX ASSEMBLY
- ECU-IG1 NO. 2 FUSE |
*8 |
DLC3 |
