Check Bus 5 Line [12/2024 - ]: Wiring Diagram

WARNING: This page is about a different car, the 2025 Toyota Corolla Cross, 2024 Toyota Corolla Cross, and 2023 Toyota Corolla Cross. However, it is still accessible from the selected car via links, so may be relevant.
  1. w/ AFS

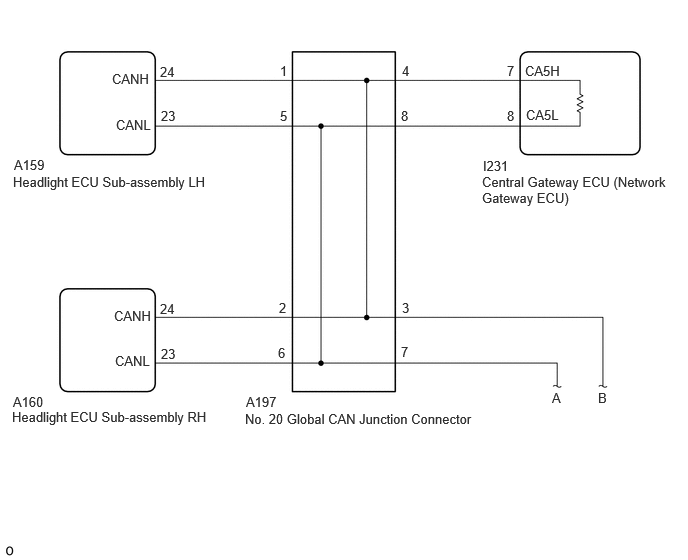

    GTY1115062Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

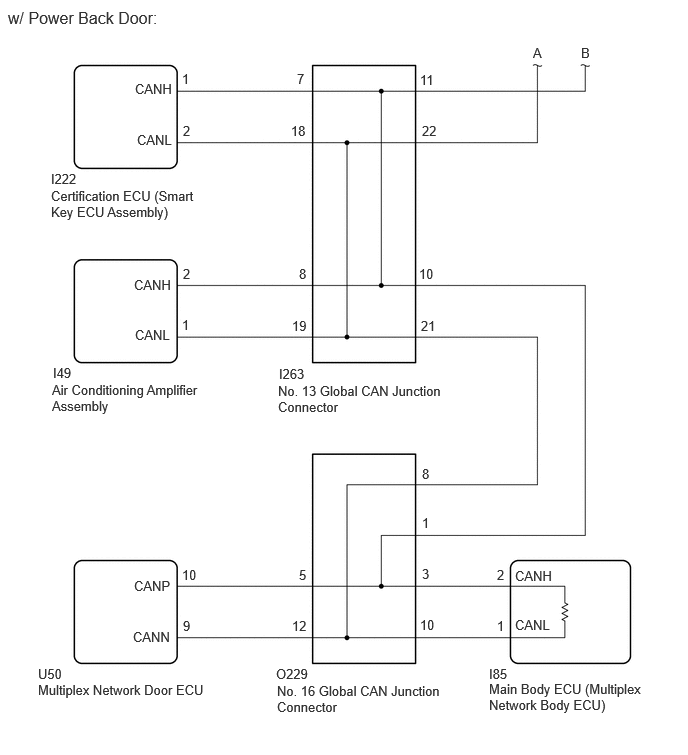

    GTY1251265Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

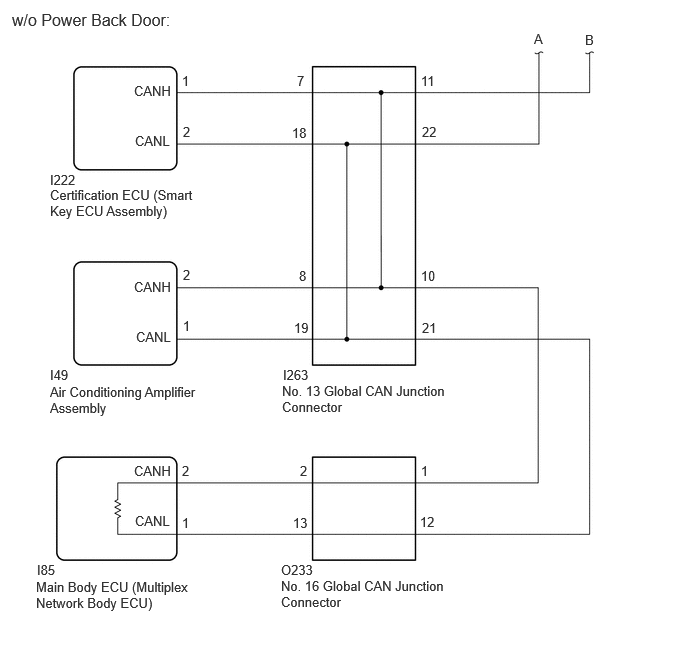

    GTY1113193Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. w/o AFS

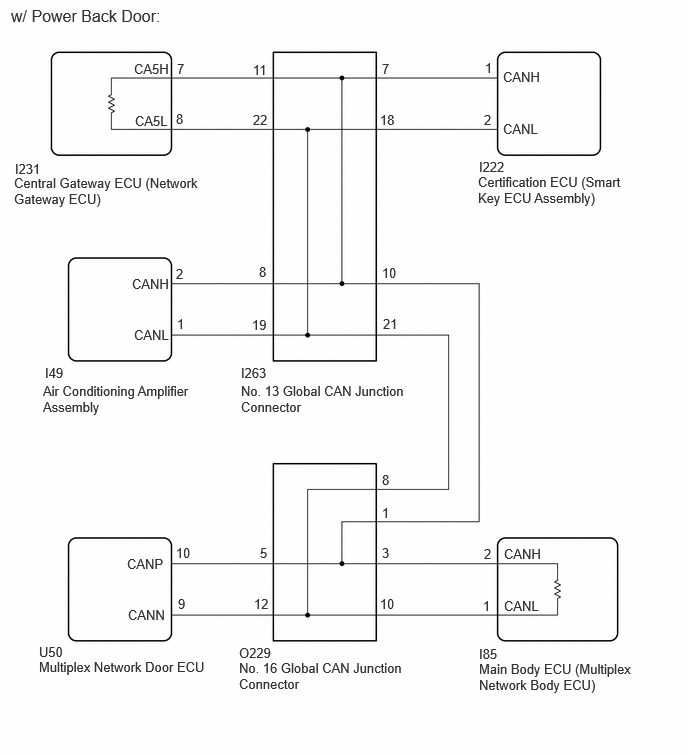

    GTY1251078Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

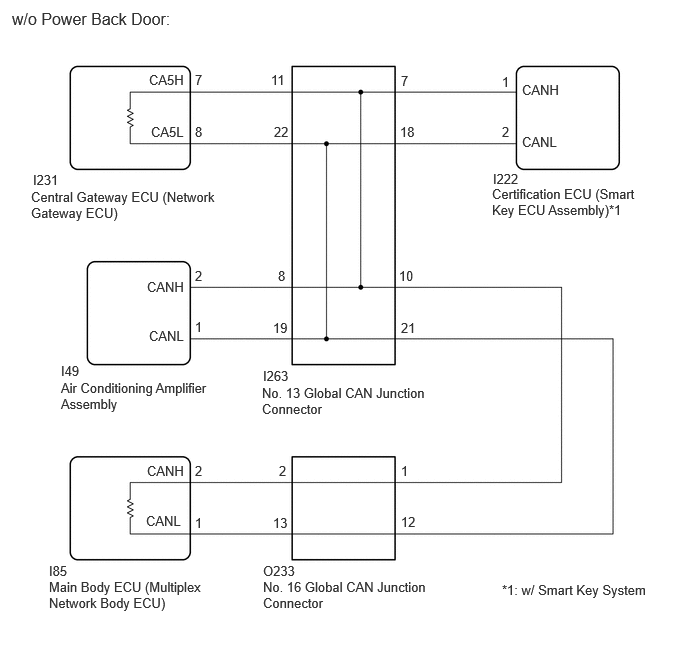

    GTY1115570Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
