Removal [11/2022 - ]: Procedure
WARNING: This page is about a different car, the 2025 Toyota Corolla Cross, 2024 Toyota Corolla Cross, and 2023 Toyota Corolla Cross. However, it is still accessible from the selected car via links, so may be relevant.
- REMOVE FUEL SUCTION TUBE WITH PUMP AND GAUGE ASSEMBLY
Refer to REMOVAL [11/2022 - ]
- DRAIN FUEL
- REMOVE TAIL EXHAUST PIPE ASSEMBLY

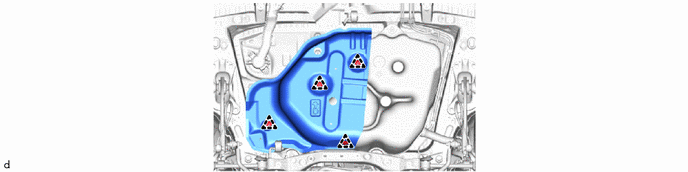

Refer to REMOVAL [11/2022 - ] - REMOVE NO. 1 FUEL TANK PROTECTOR
- DISCONNECT FUEL TANK VENT HOSE SUB-ASSEMBLY

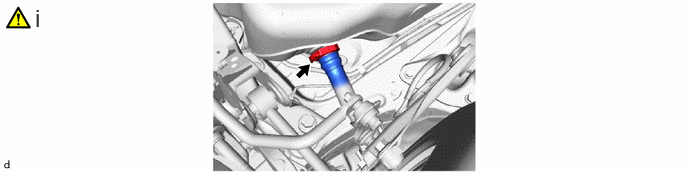

- Disconnect the fuel tank vent hose sub-assembly from the fuel vapor containment valve (fuel tank solenoid main valve assembly).
Refer to PRECAUTION [11/2022 - ]
- Disconnect the fuel tank vent hose sub-assembly from the fuel vapor containment valve (fuel tank solenoid main valve assembly).
- DISCONNECT FUEL TANK FILLER PIPE ASSEMBLY

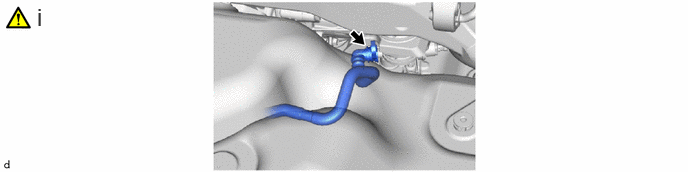

- Disconnect the fuel tank filler pipe assembly from the fuel tank assembly.
Refer to PRECAUTION [11/2022 - ]
- Disconnect the fuel tank filler pipe assembly from the fuel tank assembly.

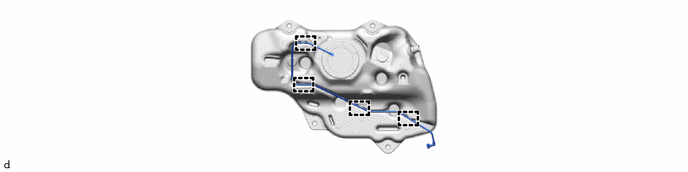

- DISCONNECT FUEL TANK MAIN TUBE SUB-ASSEMBLY

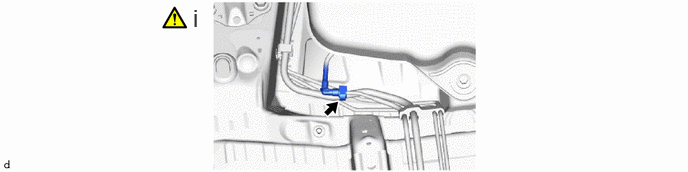

- Disconnect the fuel tank main tube sub-assembly from the fuel pipe.
Refer to PRECAUTION [11/2022 - ]
- Disconnect the fuel tank main tube sub-assembly from the fuel pipe.
- REMOVE FUEL TANK ASSEMBLY WARNING:
The fuel tank assembly is very heavy. Be sure to follow the procedure described in the appropriate service information , or the fuel tank assembly may fall off the engine lifter.

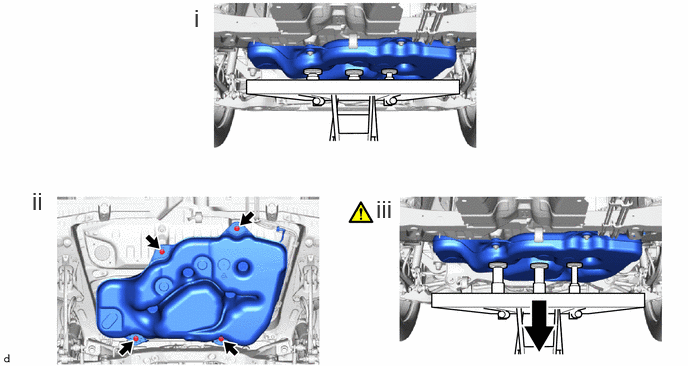

- Support the fuel tank assembly using an engine lifter.
HINT:
Using height adjustment attachments and plate lift attachments, keep the fuel tank assembly horizontal.
- Remove the 4 bolts.
- Lower the engine lifter to remove the fuel tank assembly.NOTE:
- Be careful not to drop the fuel tank assembly.
- When removing the fuel tank assembly, tilt it slightly to prevent it from interfering with the surrounding parts.
- Support the fuel tank assembly using an engine lifter.
- REMOVE FUEL TANK MAIN TUBE SUB-ASSEMBLY
- REMOVE FUEL TANK VENT HOSE SUB-ASSEMBLY
