COMPONENTS (REMOVAL)

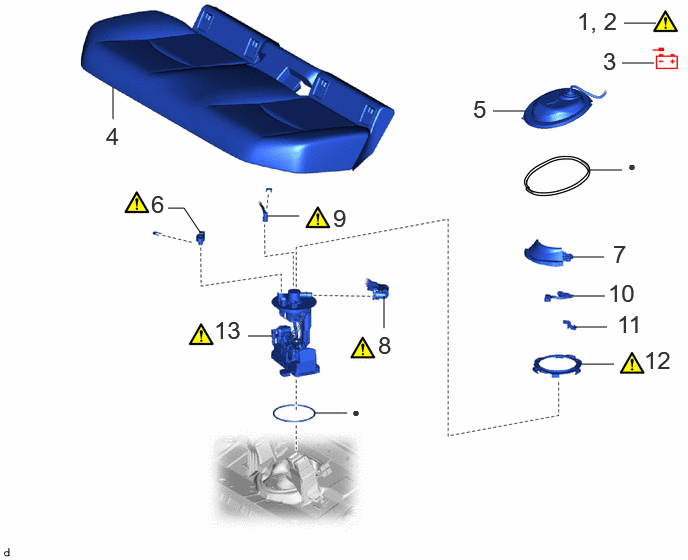

Fig 1: Fuel Pump Removal Components

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Procedure		Part Name Code	Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
1	PRECAUTION	-	See step 1	-	-
2	DISCHARGE FUEL SYSTEM PRESSURE	-	See step 2	-	-
3	DISCONNECT CABLE FROM NEGATIVE AUXILIARY BATTERY TERMINAL	-	-	-	-
4	REAR SEAT ASSEMBLY	-	-	-	-
5	REAR FLOOR SERVICE HOLE COVER	58325M	-	-	-
6	FUEL TANK PRESSURE SENSOR (VAPOR PRESSURE SENSOR)	89461	See step 6	-	-
7	NO. 1 FUEL TUBE CLAMP	77285J	-	-	-
8	FUEL TANK VENT HOSE SUB-ASSEMBLY	77404A	See step 8	-	-
9	FUEL TANK MAIN TUBE SUB-ASSEMBLY	77209F	See step 9	-	-
10	FUEL GAUGE WIRE	82412	-	-	-
11	NO. 4 FUEL TUBE CLAMP	77289C	-	-	-
12	FUEL PUMP GAUGE RETAINER	77144	See step 12	-	-
13	FUEL SUCTION TUBE WITH PUMP AND GAUGE ASSEMBLY	77020A	See step 13	-	-

•

Non-reusable part

The necessary procedures (adjustment, calibration, initialization or registration) that must be performed after parts are removed and installed, or replaced during fuel pump with motor and bracket assembly removal/installation are shown below.

NECESSARY PROCEDURES AFTER PARTS REMOVED/INSTALLED/REPLACED

Replaced Part or Performed Procedure	Necessary Procedure	Effect/Inoperative Function when Necessary Procedure not Performed	Link
Replacement of fuel pump	Inspection after repair	Poor idle, etc. Engine start function, etc.	Refer to INITIALIZATION [11/2022 - ]

WARNING:

Never perform work on fuel system components near any possible ignition sources.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Vaporized fuel could ignite, resulting in a serious accident.

Do not perform work on fuel system components without first disconnecting the cable from the negative (-) auxiliary battery terminal.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Sparks could cause vaporized fuel to ignite, resulting in a serious accident.

NOTE:

After the ignition switch is turned off, the radio and display receiver assembly records various types of memory and settings. As a result, after turning the ignition switch off, make sure to wait at least 120 seconds before disconnecting the cable from the negative (-) auxiliary battery terminal.

HINT:

When the cable is disconnected/reconnected to the auxiliary battery terminal, systems temporarily stop operating. However, each system has a function that completes learning the first time the system is used.

Learning completes when vehicle is driven

Effect/Inoperative Function When Necessary Procedures are not Performed	Necessary Procedures	Link
Front Camera System	Drive the vehicle straight ahead at 15 km/h (10 mph) or more for 1 second or more.	Refer to INITIALIZATION [11/2022 - ]

Learning completes when vehicle is operated normally

Effect/Inoperative Function When Necessary Procedures are not Performed	Necessary Procedures	Link
Power door lock control system Back door opener	Perform door unlock operation with door control switch or electrical key transmitter sub-assembly switch.	Refer to INITIALIZATION [11/2022 - ]
Power back door system	Fully close the back door by hand. HINT: Initialization is not necessary if the above procedures are performed while the back door is closed.	Refer to INITIALIZATION [09/2021 - ]
Air conditioning system	After the ignition switch is turned to ON, the servo motor standard position is recognized.	-
