Reassembly [11/2022 - ]: Procedure

WARNING: This page is about a different car, the 2025 Toyota Corolla Cross, 2024 Toyota Corolla Cross, and 2023 Toyota Corolla Cross. However, it is still accessible from the selected car via links, so may be relevant.
  1. INSTALL FUEL PUMP SPACER
    1. GTY1104961Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 O-ring *2 Fuel Pump Spacer
      1. Apply gasoline to a new O-ring. Then install the O-ring and fuel pump spacer to the fuel pump.
  2. INSTALL FUEL PUMP HARNESS
    GTY993405Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    NOTE:

    Do not damage the wire harness.

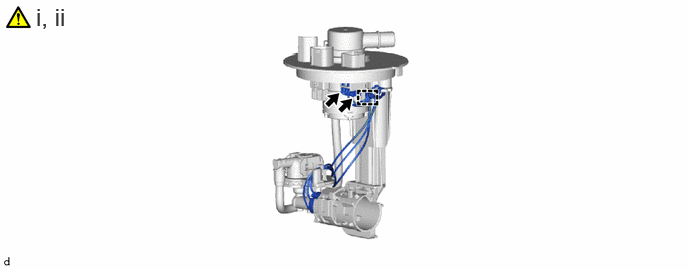

    1. GTY1107472Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Connect the 2 fuel pump harness connectors and install the fuel pump harness to the fuel suction plate sub-assembly.
        NOTE:

        When disengaging each wire harness from the clamp, disengage one wire at a time.

      2. Engage the clamp.
  3. INSTALL FUEL PUMP
    GTY993405Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    NOTE:

    Perform "Inspection After Repair" after replacing the fuel pump.

    Refer to INITIALIZATION [11/2022 - ]
    1. GTY1108564Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Install the fuel pump to the fuel tube supporter.
        NOTE:

        Make sure that the O-ring is not cut or pinched during installation.

  4. INSTALL NO. 2 FUEL SUCTION SUPPORT
  5. INSTALL FUEL SUCTION PLATE SUB-ASSEMBLY

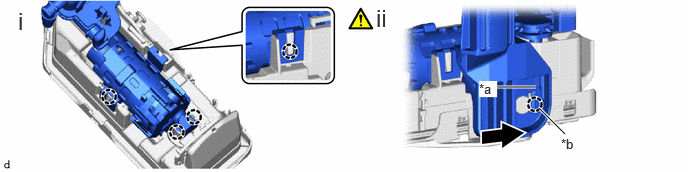

    1. GTY1108059Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Protrusion *b Installation Hole
      Slide - -
      1. Engage the 4 claws to install the fuel suction plate sub-assembly to the fuel sub-tank sub-assembly.
      2. Align the protrusion of the fuel sub-tank sub-assembly with the installation hole of the fuel suction plate sub-assembly and then slide the fuel suction plate sub-assembly to install the fuel sub-tank sub-assembly.
  6. INSTALL FUEL SENDER GAUGE ASSEMBLY
    GTY993405Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    		 See step  1
