Disassembly [11/2022 - ]: Procedure

WARNING: This page is about a different car, the 2025 Toyota Corolla Cross, 2024 Toyota Corolla Cross, and 2023 Toyota Corolla Cross. However, it is still accessible from the selected car via links, so may be relevant.
  1. REMOVE FUEL SENDER GAUGE ASSEMBLY
    GTY993405Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    		 See step  2
  2. REMOVE FUEL SUCTION PLATE SUB-ASSEMBLY

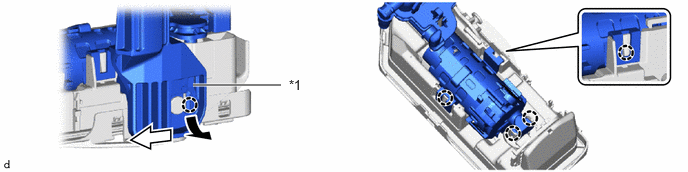

    1. GTY1108568Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 Fuel Suction Plate Sub-assembly - -
      Pull Slide
  3. REMOVE NO. 2 FUEL SUCTION SUPPORT

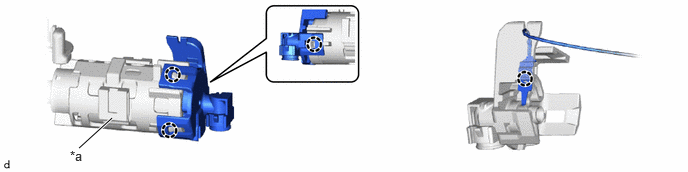

    1. GTY1106788Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Fuel Tube Supporter - -
  4. REMOVE FUEL PUMP

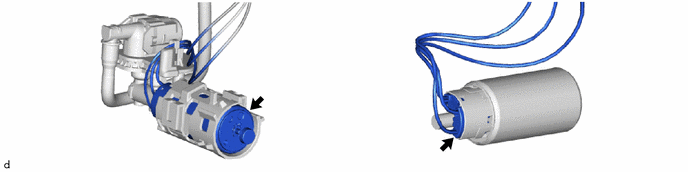

    1. GTY1108774Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  5. REMOVE FUEL PUMP HARNESS
    GTY993405Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    NOTE:

    Do not damage the wire harness.

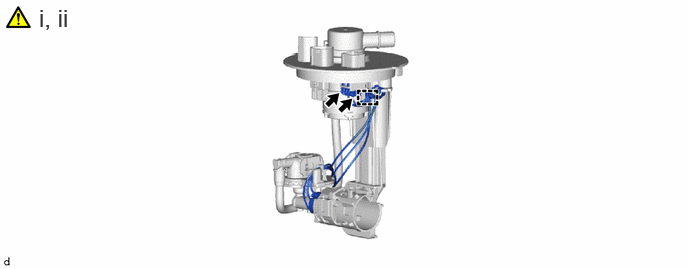

    1. GTY1107473Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Disengage the clamp.
        NOTE:

        When disengaging each wire harness from the clamp, disengage one wire at a time.

      2. Disconnect the 2 fuel pump harness connectors and remove the fuel pump harness from the fuel suction plate sub-assembly.
  6. REMOVE FUEL PUMP SPACER
    1. GTY1105086Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 O-ring *2 Fuel Pump Spacer
