COMPONENTS (DISASSEMBLY)

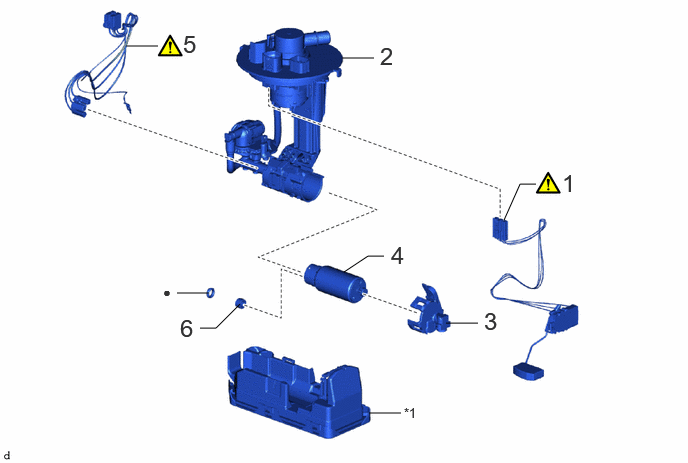

Fig 1: Fuel Pump Disassembly Components

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Procedure		Part Name Code	Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
1	FUEL SENDER GAUGE ASSEMBLY	83320	See step 1	-	-
2	FUEL SUCTION PLATE SUB-ASSEMBLY	77024A	-	-	-
3	NO. 2 FUEL SUCTION SUPPORT	77175	-	-	-
4	FUEL PUMP	23221	-	-	-
5	FUEL PUMP HARNESS	77785	See step 5	-	-
6	FUEL PUMP SPACER	23225A	-	-	-

*1	FUEL SUB-TANK SUB-ASSEMBLY	-	-
•	Non-reusable part	-	-

NOTE:

Do not disconnect the tube shown in the illustration when disassembling the fuel suction tube with pump and gauge assembly. Doing so will cause reassembly of the fuel suction tube with pump and gauge assembly to be impossible as the tube is pressed into the fuel suction plate sub-assembly.

Tube
