Removal [11/2022 - ]: Procedure

WARNING: This page is about a different car, the 2025 Toyota Corolla Cross, 2024 Toyota Corolla Cross, and 2023 Toyota Corolla Cross. However, it is still accessible from the selected car via links, so may be relevant.

REMOVE DECK TRIM SIDE PANEL ASSEMBLY LH
Refer to REMOVAL [11/2022 - ]

REMOVE FUEL PUMP CONTROL ECU

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

NOTE:

Do not reuse the fuel pump control ECU if it has been dropped or subjected to a severe impact.
If a malfunction such as pump lock occurs and the fuel pump is damaged, excessive current may be continuously applied to the fuel pump control ECU, damaging its internal parts. Make sure to replace the fuel pump control ECU at the same time when replacing the fuel pump.

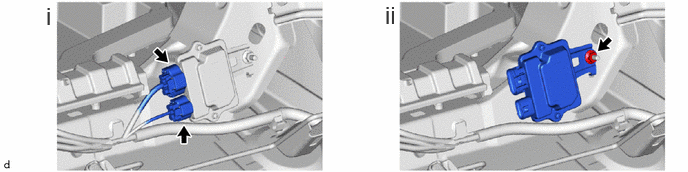

Disconnect the 2 fuel pump control ECU connectors.
Remove the nut and fuel pump control ECU from the vehicle body.

REMOVE FUEL PUMP CONTROL ECU BRACKET
