Caution / Notice / Hint
WARNING: This page is about a different car, the 2025 Toyota Corolla Cross, 2024 Toyota Corolla Cross, and 2023 Toyota Corolla Cross. However, it is still accessible from the selected car via links, so may be relevant.

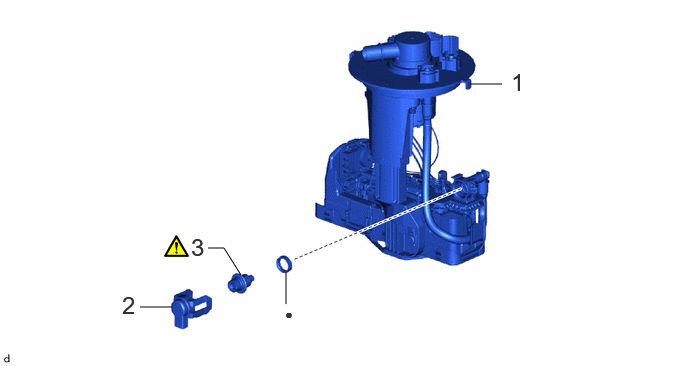

COMPONENTS (REMOVAL)
| Procedure | Part Name Code | ||||
|---|---|---|---|---|---|
| 1 | FUEL SUCTION TUBE WITH PUMP AND GAUGE ASSEMBLY | 77020A | - | - | - |
| 2 | FUEL PRESSURE REGULATOR HOLDER | 23283B | - | - | - |
| 3 | FUEL MAIN VALVE ASSEMBLY | 23070 | See step 3 | - | - |
| • | Non-reusable part | - | - |
WARNING:
HINT:
When the cable is disconnected/reconnected to the auxiliary battery terminal, systems temporarily stop operating. However, each system has a function that completes learning the first time the system is used.
- Learning completes when vehicle is driven
Effect/Inoperative Function When Necessary Procedures are not Performed Necessary Procedures Link Front Camera System Drive the vehicle straight ahead at 15 km/h (10 mph) or more for 1 second or more. Refer to INITIALIZATION [11/2022 - ] - Learning completes when vehicle is operated normally
Effect/Inoperative Function When Necessary Procedures are not Performed Necessary Procedures Link Power door lock control system - Back door opener
Perform door unlock operation with door control switch or electrical key transmitter sub-assembly switch. Refer to INITIALIZATION [11/2022 - ] Power back door system Fully close the back door by hand.
HINT:
Initialization is not necessary if the above procedures are performed while the back door is closed.Refer to INITIALIZATION [09/2021 - ] Air conditioning system After the ignition switch is turned to ON, the servo motor standard position is recognized. -
