Removal [11/2022 - ]: Procedure

WARNING: This page is about a different car, the 2025 Toyota Corolla Cross, 2024 Toyota Corolla Cross, and 2023 Toyota Corolla Cross. However, it is still accessible from the selected car via links, so may be relevant.

REMOVE HYBRID VEHICLE TRANSAXLE ASSEMBLY
Refer to REMOVAL [11/2022 - ]

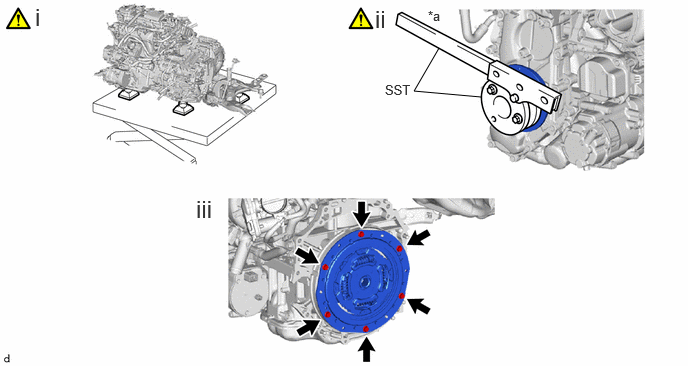

REMOVE TRANSMISSION INPUT DAMPER ASSEMBLY

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Hold

Using height adjustment attachments and plate lift attachments, place the engine assembly on a flat level surface.
NOTE:
- Using height adjustment attachments and plate lift attachments, keep the engine assembly level.
- To prevent the oil pan sub-assembly from deforming, do not place any attachments under the oil pan sub-assembly of the engine assembly.
- Using an engine sling device and engine lift, secure the engine assembly before servicing.
Using SST, hold the crankshaft pulley assembly.
- SST: 09213-54015
- SST: 09330-00021
Remove the 6 bolts and transmission input damper assembly from the flywheel sub-assembly.

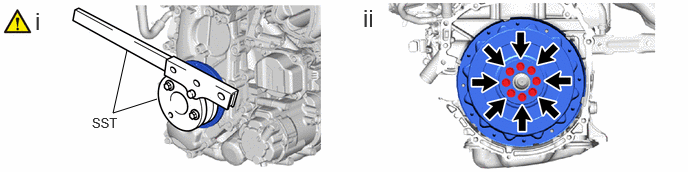

REMOVE FLYWHEEL SUB-ASSEMBLY

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Using SST, hold the crankshaft pulley assembly.
- SST: 09213-54015
- SST: 09330-00021
Remove the 8 bolts and flywheel sub-assembly from the crankshaft.

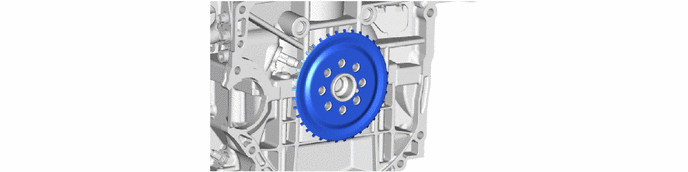

REMOVE NO. 1 CRANKSHAFT POSITION SENSOR PLATE

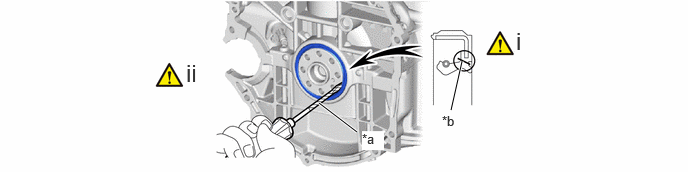

REMOVE REAR ENGINE OIL SEAL

Protective Tape

Cut Position

Using a knife, cut off the lip of the rear engine oil seal.
Using a screwdriver, pry out the rear engine oil seal.
NOTE:
Do not damage the surface of the rear engine oil seal press fit hole or the crankshaft.

HINT:

Tape the screwdriver tip before use.
