HINT:
When the cable is disconnected/reconnected to the auxiliary battery terminal, systems temporarily stop operating. However, each system has a function that completes learning the first time the system is used.
- Learning completes when vehicle is driven
Effect/Inoperative Function When Necessary Procedures are not Performed Necessary Procedures Link Front Camera System Drive the vehicle straight ahead at 15 km/h (10 mph) or more for 1 second or more. Refer to INITIALIZATION [11/2022 - ] - Learning completes when vehicle is operated normally
Effect/Inoperative Function When Necessary Procedures are not Performed Necessary Procedures Link Power door lock control system - Back door opener
Perform door unlock operation with door control switch or electrical key transmitter sub-assembly switch. Refer to INITIALIZATION [11/2022 - ] Power back door system Fully close the back door by hand.
HINT:
Initialization is not necessary if the above procedures are performed while the back door is closed.Refer to INITIALIZATION [09/2021 - ] Air conditioning system After the ignition switch is turned to ON, the servo motor standard position is recognized. -

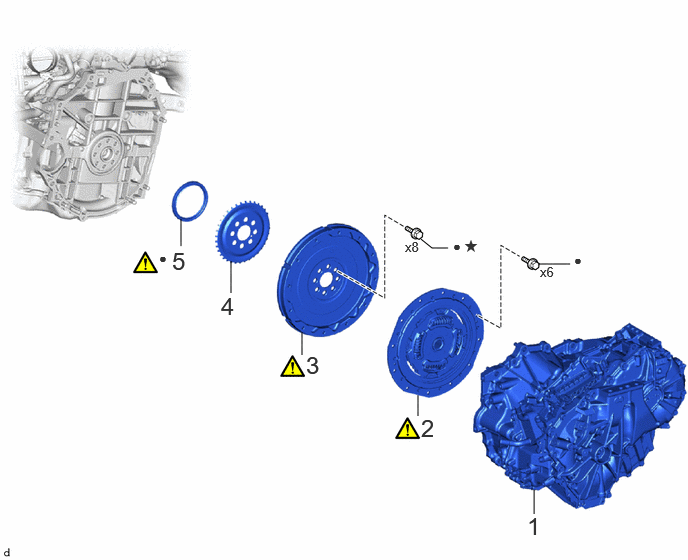

COMPONENTS (REMOVAL)
| Procedure | Part Name Code | ||||
|---|---|---|---|---|---|
| 1 | HYBRID VEHICLE TRANSAXLE ASSEMBLY | 30900 | - | - | - |
| 2 | TRANSMISSION INPUT DAMPER ASSEMBLY | 31270 | See step 2 | - | - |
| 3 | FLYWHEEL SUB-ASSEMBLY | 13405 | See step 3 | - | - |
| 4 | NO. 1 CRANKSHAFT POSITION SENSOR PLATE | 19315 | - | - | - |
| 5 | REAR ENGINE OIL SEAL | 11401L | See step 5 | - | - |
| • | Non-reusable part | * | Precoated part |
