Removal [11/2022 - ]: Procedure

WARNING: This page is about a different car, the 2025 Toyota Corolla Cross, 2024 Toyota Corolla Cross, and 2023 Toyota Corolla Cross. However, it is still accessible from the selected car via links, so may be relevant.
  1. REMOVE WHEEL ASSEMBLY

    Refer to REMOVAL [09/2021 - ]

  2. REMOVE NO. 1 ENGINE UNDER COVER ASSEMBLY

    See step  7

  3. REMOVE REAR ENGINE UNDER COVER RH

    See step  9

  4. REMOVE CRANKSHAFT PULLEY ASSEMBLY
    GTY993405Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    		 Refer to PROCEDURE - Step 14
  5. REMOVE TIMING CHAIN COVER OIL SEAL

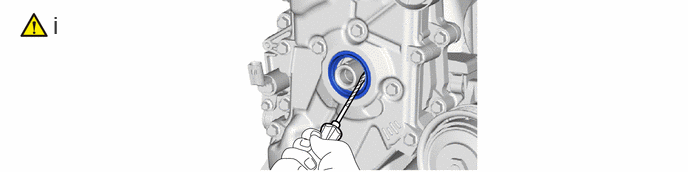

    1. GTY1104016Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Using a screwdriver, pry out the timing chain cover oil seal.
        NOTE:

        Do not damage the surface of the timing chain cover oil seal press fit hole or the crankshaft.

        HINT:

        Tape the screwdriver tip before use.
