COMPONENTS (REMOVAL)

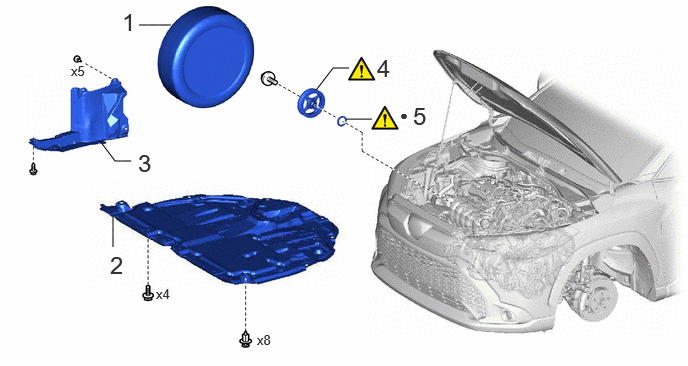

Fig 1: Front Crankshaft Oil Seal Removal Components

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Procedure		Part Name Code	Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
1	WHEEL ASSEMBLY	-	-	-	-
2	NO. 1 ENGINE UNDER COVER ASSEMBLY	51410	-	-	-
3	REAR ENGINE UNDER COVER RH	51443C	-	-	-
4	CRANKSHAFT PULLEY ASSEMBLY	13470	See step 4	-	-
5	TIMING CHAIN COVER OIL SEAL	11301C	See step 5	-	-

•

Non-reusable part
