Main Body ECU Communication Stop Mode [11/2022 - ]: Wiring Diagram

WARNING: This page is about a different car, the 2025 Toyota Corolla Cross, 2024 Toyota Corolla Cross, and 2023 Toyota Corolla Cross. However, it is still accessible from the selected car via links, so may be relevant.

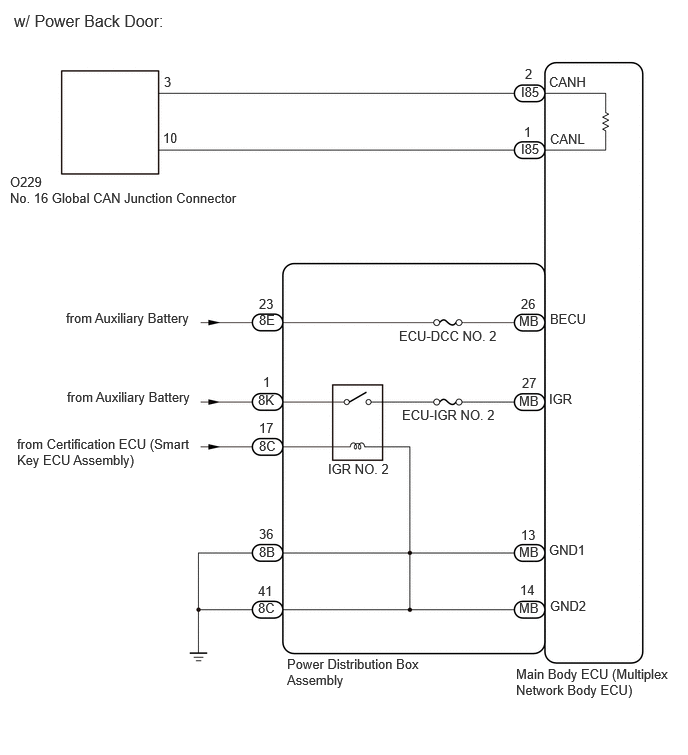

  1. w/ Smart Key System
    GTY1114789Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    GTY1114792Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

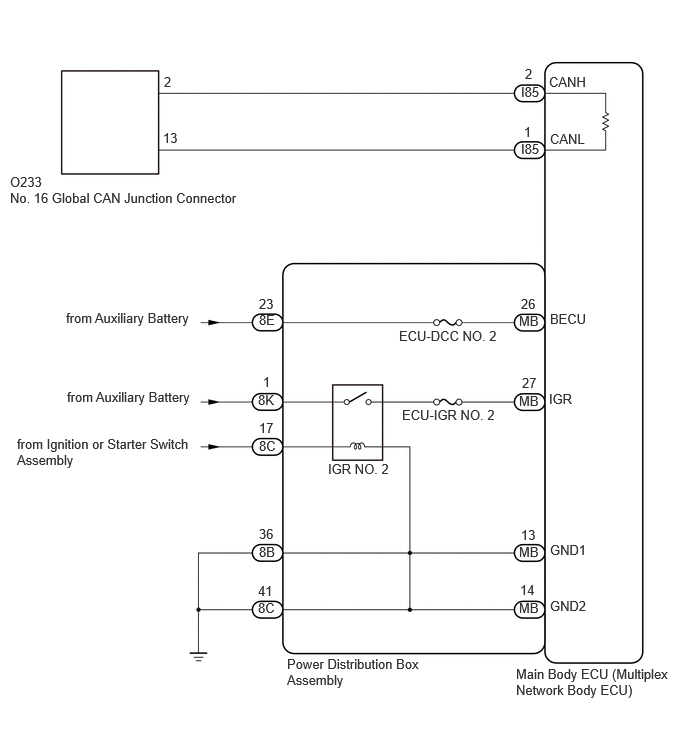

  2. w/o Smart Key System
    GTY1118817Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
