Engine Stop and Start ECU Communication Stop Mode [11/2022 - ]: Procedure

WARNING: This page is about a different car, the 2025 Toyota Corolla Cross, 2024 Toyota Corolla Cross, and 2023 Toyota Corolla Cross. However, it is still accessible from the selected car via links, so may be relevant.
  1. CHECK FOR OPEN IN CAN BUS LINES (ENGINE STOP AND START ECU BRANCH LINE)
    1. Disconnect the cable from the negative (-) auxiliary battery terminal.
    2. Disconnect the engine stop and start ECU connector.
    3. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      I230-13 (CANH) - I230-14 (CANL) Cable disconnected from negative (-) auxiliary battery terminal 54 to 69 Ω
      GTY1113702Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Front view of wire harness connector
      (to Engine Stop and Start ECU)

      Result

      Proceed to
      OK
      NG

    Result:

    NG

    REPAIR OR REPLACE CAN BRANCH LINES OR CONNECTOR (ENGINE STOP AND START ECU)

    Result:

    OK

    See step  2

  2. CHECK HARNESS AND CONNECTOR (POWER SOURCE CIRCUIT)
    1. Disconnect the engine stop and start ECU connector.
    2. Measure the resistance according to the value(s) in the table below.

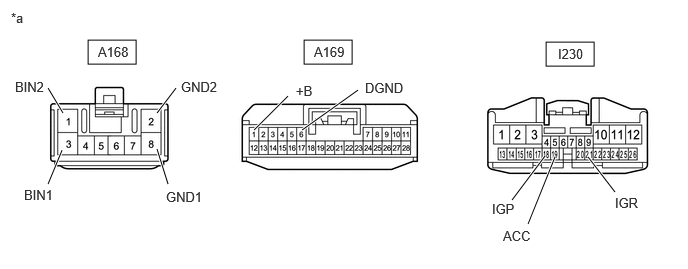

      GTY1112455Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Front view of wire harness connector
      (to Engine Stop and Start ECU)      		 - -

      Standard Resistance

      Tester Connection Condition Specified Condition
      A168-8 (GND1) - Body ground Cable disconnected from negative (-) auxiliary battery terminal Below 1 Ω
      A168-2 (GND2) - Body ground Cable disconnected from negative (-) auxiliary battery terminal Below 1 Ω
      A169-6 (DGND) - Body ground Cable disconnected from negative (-) auxiliary battery terminal Below 1 Ω
    3. Reconnect the cable to the negative (-) auxiliary battery terminal.
    4. Measure the voltage according to the value(s) in the table below.

      Standard Voltage

      Tester Connection Switch Condition Specified Condition
      A168-3 (BIN1) - Body ground Always 9.5 to 14 V
      A168-1 (BIN2) - Body ground Always 9.5 to 14 V
      A169-1 (+B) - Body ground Ignition switch ON 9.5 to 14 V
      I230-21 (IGR) - Body ground Ignition switch ON 9.5 to 14 V
      I230-18 (IGP) - Body ground Ignition switch ON 9.5 to 14 V
      I230-19 (ACC) - Body ground Ignition switch ACC 9.5 to 14 V

      Result

      Proceed to
      OK
      NG

    Result:

    OK

    REPLACE ENGINE STOP AND START ECU

    Refer to REMOVAL [11/2022 - ]

    Result:

    NG

    REPAIR OR REPLACE HARNESS OR CONNECTOR (POWER SOURCE CIRCUIT)
