DTC U1170-87: Lost Communication with Brake System Control Module (ch2) Missing Message [11/2023 - ]: Procedure

WARNING: This page is about a different car, the 2025 Toyota Corolla Cross, 2024 Toyota Corolla Cross, and 2023 Toyota Corolla Cross. However, it is still accessible from the selected car via links, so may be relevant.
  1. CHECK FOR OPEN IN CAN MAIN BUS LINES
    1. Disconnect the cable from the negative (-) auxiliary battery terminal.
    2. Measure the resistance according to the value(s) in the table below.
      GTY1113507Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Component with harness connected
      (No. 9 Global CAN Junction Connector)      		 - -

      Standard Resistance

      Tester Connection Condition Specified Condition
      A193-1 (CANH) - A193-12 (CANL) Cable disconnected from negative (-) auxiliary battery terminal Below 70 Ω

      Result

      Proceed to
      OK
      NG

    Result:

    NG

    See step  23

    Result:

    OK

    See step  2

  2. CHECK FOR SHORT IN CAN BUS LINES
    1. Measure the resistance according to the value(s) in the table below.
      GTY1113507Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Component with harness connected
      (No. 9 Global CAN Junction Connector)      		 - -

      Standard Resistance

      Tester Connection Condition Specified Condition
      A193-1 (CANH) - A193-12 (CANL) Cable disconnected from negative (-) auxiliary battery terminal 54 Ω or higher

      Result

      Proceed to
      OK
      NG

    Result:

    NG

    See step  17

    Result:

    OK

    See step  3

  3. CHECK FOR SHORT TO +B IN CAN BUS LINE
    1. Measure the resistance according to the value(s) in the table below.
      GTY1115584Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 DLC3 - -
      *a Component with harness connected
      (No. 9 Global CAN Junction Connector)      		 - -

      Standard Resistance

      Tester Connection Condition Specified Condition
      A193-1 (CANH) - I26-16 (BAT) Cable disconnected from negative (-) auxiliary battery terminal 6 kΩ or higher
      A193-12 (CANL) - I26-16 (BAT)

      Result

      Proceed to
      OK
      NG

    Result:

    NG

    See step  11

    Result:

    OK

    See step  4

  4. CHECK FOR SHORT TO GND IN CAN BUS LINE
    1. Measure the resistance according to the value(s) in the table below.
      GTY1118981Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 DLC3 - -
      *a Component with harness connected
      (No. 9 Global CAN Junction Connector)      		 - -

      Standard Resistance

      Tester Connection Condition Specified Condition
      A193-1 (CANH) - I26-4 (CG) Cable disconnected from negative (-) auxiliary battery terminal 200 Ω or higher
      A193-12 (CANL) - I26-4 (CG)

      Result

      Proceed to
      OK
      NG

    Result:

    OK

    INSPECT FOR INTERMITTENT PROBLEMS

    Refer to HOW TO PROCEED WITH TROUBLESHOOTING [09/2021 - ]

    Result:

    NG

    See step  5

  5. CHECK FOR SHORT TO GND IN CAN BUS LINE (NO. 9 GLOBAL CAN JUNCTION CONNECTOR - BRAKE ACTUATOR ASSEMBLY)
    1. Disconnect the No. 9 global CAN junction connector.
    2. Measure the resistance according to the value(s) in the table below.
      GTY1110773Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 DLC3 - -
      *a Front view of wire harness connector
      (to No. 9 Global CAN Junction Connector)      		 *b to Brake Actuator Assembly

      Standard Resistance

      Tester Connection Condition Specified Condition
      A193-1 (CANH) - I26-4 (CG) Cable disconnected from negative (-) auxiliary battery terminal 200 Ω or higher
      A193-12 (CANL) - I26-4 (CG)

      Result

      Proceed to
      OK
      NG

    Result:

    NG

    See step  8

    Result:

    OK

    See step  6

  6. CHECK FOR SHORT TO GND IN CAN BUS LINE (NO. 9 GLOBAL CAN JUNCTION CONNECTOR - ENGINE STOP AND START ECU)
    1. Measure the resistance according to the value(s) in the table below.
      GTY1110776Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 DLC3 - -
      *a Front view of wire harness connector
      (to No. 9 Global CAN Junction Connector)      		 *b to Engine Stop and Start ECU

      Standard Resistance

      Tester Connection Condition Specified Condition
      A193-3 (CANH) - I26-4 (CG) Cable disconnected from negative (-) auxiliary battery terminal 200 Ω or higher
      A193-14 (CANL) - I26-4 (CG)

      Result

      Proceed to
      OK
      NG

    Result:

    NG

    See step  9

    Result:

    OK

    See step  7

  7. CHECK FOR SHORT TO GND IN CAN BUS LINE (NO. 9 GLOBAL CAN JUNCTION CONNECTOR - ECM)
    1. Measure the resistance according to the value(s) in the table below.
      GTY1110777Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 DLC3 - -
      *a Front view of wire harness connector
      (to No. 9 Global CAN Junction Connector)      		 *b to ECM

      Standard Resistance

      Tester Connection Condition Specified Condition
      A193-2 (CANH) - I26-4 (CG) Cable disconnected from negative (-) auxiliary battery terminal 200 Ω or higher
      A193-13 (CANL) - I26-4 (CG)

      Result

      Proceed to
      OK
      NG

    Result:

    OK

    REPLACE NO. 9 GLOBAL CAN JUNCTION CONNECTOR

    Result:

    NG

    See step  10

  8. CHECK FOR SHORT TO GND IN CAN BUS LINE (NO. 9 GLOBAL CAN JUNCTION CONNECTOR - BRAKE ACTUATOR ASSEMBLY)
    1. Disconnect the A151 brake actuator assembly connector.
    2. Measure the resistance according to the value(s) in the table below.
      GTY1110773Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 DLC3 - -
      *a Front view of wire harness connector
      (to No. 9 Global CAN Junction Connector)      		 *b to Brake Actuator Assembly

      Standard Resistance

      Tester Connection Condition Specified Condition
      A193-1 (CANH) - I26-4 (CG) Cable disconnected from negative (-) auxiliary battery terminal 200 Ω or higher
      A193-12 (CANL) - I26-4 (CG)

      Result

      Proceed to
      OK
      NG

    Result:

    OK

    REPLACE BRAKE ACTUATOR ASSEMBLY

    Refer to REMOVAL [11/2022 - ]

    Result:

    NG

    REPAIR OR REPLACE CAN MAIN BUS LINE OR CONNECTOR (NO. 9 GLOBAL CAN JUNCTION CONNECTOR - BRAKE ACTUATOR ASSEMBLY)

  9. CHECK FOR SHORT TO GND IN CAN BUS LINE (NO. 9 GLOBAL CAN JUNCTION CONNECTOR - ENGINE STOP AND START ECU)
    1. Disconnect the I230 engine stop and start ECU connector.
    2. Measure the resistance according to the value(s) in the table below.
      GTY1110776Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 DLC3 - -
      *a Front view of wire harness connector
      (to No. 9 Global CAN Junction Connector)      		 *b to Engine Stop and Start ECU

      Standard Resistance

      Tester Connection Condition Specified Condition
      A193-3 (CANH) - I26-4 (CG) Cable disconnected from negative (-) auxiliary battery terminal 200 Ω or higher
      A193-14 (CANL) - I26-4 (CG)

      Result

      Proceed to
      OK
      NG

    Result:

    OK

    REPLACE ENGINE STOP AND START ECU

    Refer to REMOVAL [11/2022 - ]

    Result:

    NG

    REPAIR OR REPLACE CAN BRANCH LINE OR CONNECTOR (NO. 9 GLOBAL CAN JUNCTION CONNECTOR - ENGINE STOP AND START ECU)

  10. CHECK FOR SHORT TO GND IN CAN BUS LINE (NO. 9 GLOBAL CAN JUNCTION CONNECTOR - ECM)
    1. Disconnect the A199 ECM connector.
    2. Measure the resistance according to the value(s) in the table below.
      GTY1110777Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 DLC3 - -
      *a Front view of wire harness connector
      (to No. 9 Global CAN Junction Connector)      		 *b to ECM

      Standard Resistance

      Tester Connection Condition Specified Condition
      A193-2 (CANH) - I26-4 (CG) Cable disconnected from negative (-) auxiliary battery terminal 200 Ω or higher
      A193-13 (CANL) - I26-4 (CG)

      Result

      Proceed to
      OK
      NG

    Result:

    OK

    REPLACE ECM

    Refer to REMOVAL [11/2023 - ]

    Result:

    NG

    REPAIR OR REPLACE CAN MAIN BUS LINE OR CONNECTOR (NO. 9 GLOBAL CAN JUNCTION CONNECTOR - ECM)

  11. CHECK FOR SHORT TO +B IN CAN BUS LINE (NO. 9 GLOBAL CAN JUNCTION CONNECTOR - BRAKE ACTUATOR ASSEMBLY)
    1. Disconnect the No. 9 global CAN junction connector.
    2. Measure the resistance according to the value(s) in the table below.
      GTY1110774Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 DLC3 - -
      *a Front view of wire harness connector
      (to No. 9 Global CAN Junction Connector)      		 *b to Brake Actuator Assembly

      Standard Resistance

      Tester Connection Condition Specified Condition
      A193-1 (CANH) - I26-16 (BAT) Cable disconnected from negative (-) auxiliary battery terminal 6 kΩ or higher
      A193-12 (CANL) - I26-16 (BAT)

      Result

      Proceed to
      OK
      NG

    Result:

    NG

    See step  14

    Result:

    OK

    See step  12

  12. CHECK FOR SHORT TO +B IN CAN BUS LINE (NO. 9 GLOBAL CAN JUNCTION CONNECTOR - ENGINE STOP AND START ECU)
    1. Measure the resistance according to the value(s) in the table below.
      GTY1110775Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 DLC3 - -
      *a Front view of wire harness connector
      (to No. 9 Global CAN Junction Connector)      		 *b to Engine Stop and Start ECU

      Standard Resistance

      Tester Connection Condition Specified Condition
      A193-3 (CANH) - I26-16 (BAT) Cable disconnected from negative (-) auxiliary battery terminal 6 kΩ or higher
      A193-14 (CANL) - I26-16 (BAT)

      Result

      Proceed to
      OK
      NG

    Result:

    NG

    See step  15

    Result:

    OK

    See step  13

  13. CHECK FOR SHORT TO +B IN CAN BUS LINE (NO. 9 GLOBAL CAN JUNCTION CONNECTOR - ECM)
    1. Measure the resistance according to the value(s) in the table below.
      GTY1110771Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 DLC3 - -
      *a Front view of wire harness connector
      (to No. 9 Global CAN Junction Connector)      		 *b to ECM

      Standard Resistance

      Tester Connection Condition Specified Condition
      A193-2 (CANH) - I26-16 (BAT) Cable disconnected from negative (-) auxiliary battery terminal 6 kΩ or higher
      A193-13 (CANL) - I26-16 (BAT)

      Result

      Proceed to
      OK
      NG

    Result:

    OK

    REPLACE NO. 9 GLOBAL CAN JUNCTION CONNECTOR

    Result:

    NG

    See step  16

  14. CHECK FOR SHORT TO +B IN CAN BUS LINE (NO. 9 GLOBAL CAN JUNCTION CONNECTOR - BRAKE ACTUATOR ASSEMBLY)
    1. Disconnect the A151 brake actuator assembly connector.
    2. Measure the resistance according to the value(s) in the table below.
      GTY1110774Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 DLC3 - -
      *a Front view of wire harness connector
      (to No. 9 Global CAN Junction Connector)      		 *b to Brake Actuator Assembly

      Standard Resistance

      Tester Connection Condition Specified Condition
      A193-1 (CANH) - I26-16 (BAT) Cable disconnected from negative (-) auxiliary battery terminal 6 kΩ or higher
      A193-12 (CANL) - I26-16 (BAT)

      Result

      Proceed to
      OK
      NG

    Result:

    OK

    REPLACE BRAKE ACTUATOR ASSEMBLY

    Refer to REMOVAL [11/2022 - ]

    Result:

    NG

    REPAIR OR REPLACE CAN MAIN BUS LINE OR CONNECTOR (NO. 9 GLOBAL CAN JUNCTION CONNECTOR - BRAKE ACTUATOR ASSEMBLY)

  15. CHECK FOR SHORT TO +B IN CAN BUS LINE (NO. 9 GLOBAL CAN JUNCTION CONNECTOR - ENGINE STOP AND START ECU)
    1. Disconnect the I230 engine stop and start ECU connector.
    2. Measure the resistance according to the value(s) in the table below.
      GTY1110775Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 DLC3 - -
      *a Front view of wire harness connector
      (to No. 9 Global CAN Junction Connector)      		 *b to Engine Stop and Start ECU

      Standard Resistance

      Tester Connection Condition Specified Condition
      A193-3 (CANH) - I26-16 (BAT) Cable disconnected from negative (-) auxiliary battery terminal 6 kΩ or higher
      A193-14 (CANL) - I26-16 (BAT)

      Result

      Proceed to
      OK
      NG

    Result:

    OK

    REPLACE ENGINE STOP AND START ECU

    Refer to REMOVAL [11/2022 - ]

    Result:

    NG

    REPAIR OR REPLACE CAN BRANCH LINE OR CONNECTOR (NO. 9 GLOBAL CAN JUNCTION CONNECTOR - ENGINE STOP AND START ECU)

  16. CHECK FOR SHORT TO +B IN CAN BUS LINE (NO. 9 GLOBAL CAN JUNCTION CONNECTOR - ECM)
    1. Disconnect the A199 ECM connector.
    2. Measure the resistance according to the value(s) in the table below.
      GTY1110771Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 DLC3 - -
      *a Front view of wire harness connector
      (to No. 9 Global CAN Junction Connector)      		 *b to ECM

      Standard Resistance

      Tester Connection Condition Specified Condition
      A193-2 (CANH) - I26-16 (BAT) Cable disconnected from negative (-) auxiliary battery terminal 6 kΩ or higher
      A193-13 (CANL) - I26-16 (BAT)

      Result

      Proceed to
      OK
      NG

    Result:

    OK

    REPLACE ECM

    Refer to REMOVAL [11/2023 - ]

    Result:

    NG

    REPAIR OR REPLACE CAN MAIN BUS LINE OR CONNECTOR (NO. 9 GLOBAL CAN JUNCTION CONNECTOR - ECM)

  17. CHECK FOR SHORT IN CAN BUS LINES (NO. 9 GLOBAL CAN JUNCTION CONNECTOR - BRAKE ACTUATOR ASSEMBLY)
    1. Disconnect the No. 9 global CAN junction connector.
    2. Measure the resistance according to the value(s) in the table below.
      GTY1110005Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Front view of wire harness connector
      (to No. 9 Global CAN Junction Connector)      		 *b to Brake Actuator Assembly

      Standard Resistance

      Tester Connection Condition Specified Condition
      A193-1 (CANH) - A193-12 (CANL) Cable disconnected from negative (-) auxiliary battery terminal 108 to 132 Ω

      Result

      Proceed to
      OK
      NG

    Result:

    NG

    See step  20

    Result:

    OK

    See step  18

  18. CHECK FOR SHORT IN CAN BUS LINES (NO. 9 GLOBAL CAN JUNCTION CONNECTOR - ENGINE STOP AND START ECU)
    1. Measure the resistance according to the value(s) in the table below.
      GTY1110006Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Front view of wire harness connector
      (to No. 9 Global CAN Junction Connector)      		 *b to Engine Stop and Start ECU

      Standard Resistance

      Tester Connection Condition Specified Condition
      A193-3 (CANH) - A193-14 (CANL) Cable disconnected from negative (-) auxiliary battery terminal 200 Ω or higher

      Result

      Proceed to
      OK
      NG

    Result:

    NG

    See step  21

    Result:

    OK

    See step  19

  19. CHECK FOR SHORT IN CAN BUS LINES (NO. 9 GLOBAL CAN JUNCTION CONNECTOR - ECM)
    1. Measure the resistance according to the value(s) in the table below.
      GTY1110007Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Front view of wire harness connector
      (to No. 9 Global CAN Junction Connector)      		 *b to ECM

      Standard Resistance

      Tester Connection Condition Specified Condition
      A193-2 (CANH) - A193-13 (CANL) Cable disconnected from negative (-) auxiliary battery terminal 108 to 132 Ω

      Result

      Proceed to
      OK
      NG

    Result:

    OK

    REPLACE NO. 9 GLOBAL CAN JUNCTION CONNECTOR

    Result:

    NG

    See step  22

  20. CHECK FOR SHORT IN CAN BUS LINES (NO. 9 GLOBAL CAN JUNCTION CONNECTOR - BRAKE ACTUATOR ASSEMBLY)
    1. Disconnect the A151 brake actuator assembly connector.
    2. Measure the resistance according to the value(s) in the table below.
      GTY1110005Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Front view of wire harness connector
      (to No. 9 Global CAN Junction Connector)      		 *b to Brake Actuator Assembly

      Standard Resistance

      Tester Connection Condition Specified Condition
      A193-1 (CANH) - A193-12 (CANL) Cable disconnected from negative (-) auxiliary battery terminal 1 MΩ or higher

      Result

      Proceed to
      OK
      NG

    Result:

    OK

    REPLACE BRAKE ACTUATOR ASSEMBLY

    Refer to REMOVAL [11/2022 - ]

    Result:

    NG

    REPAIR OR REPLACE CAN MAIN BUS LINES OR CONNECTOR (NO. 9 GLOBAL CAN JUNCTION CONNECTOR - BRAKE ACTUATOR ASSEMBLY)

  21. CHECK FOR SHORT IN CAN BUS LINES (NO. 9 GLOBAL CAN JUNCTION CONNECTOR - ENGINE STOP AND START ECU)
    1. Disconnect the I230 engine stop and start ECU connector.
    2. Measure the resistance according to the value(s) in the table below.
      GTY1110006Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Front view of wire harness connector
      (to No. 9 Global CAN Junction Connector)      		 *b to Engine Stop and Start ECU

      Standard Resistance

      Tester Connection Condition Specified Condition
      A193-3 (CANH) - A193-14 (CANL) Cable disconnected from negative (-) auxiliary battery terminal 1 MΩ or higher

      Result

      Proceed to
      OK
      NG

    Result:

    OK

    REPLACE ENGINE STOP AND START ECU

    Refer to REMOVAL [11/2022 - ]

    Result:

    NG

    REPAIR OR REPLACE CAN BRANCH LINES OR CONNECTOR (NO. 9 GLOBAL CAN JUNCTION CONNECTOR - ENGINE STOP AND START ECU)

  22. CHECK FOR SHORT IN CAN BUS LINES (NO. 9 GLOBAL CAN JUNCTION CONNECTOR - ECM)
    1. Disconnect the A199 ECM connector.
    2. Measure the resistance according to the value(s) in the table below.
      GTY1110007Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Front view of wire harness connector
      (to No. 9 Global CAN Junction Connector)      		 *b to ECM

      Standard Resistance

      Tester Connection Condition Specified Condition
      A193-2 (CANH) - A193-13 (CANL) Cable disconnected from negative (-) auxiliary battery terminal 1 MΩ or higher

      Result

      Proceed to
      OK
      NG

    Result:

    OK

    REPLACE ECM

    Refer to REMOVAL [11/2023 - ]

    Result:

    NG

    REPAIR OR REPLACE CAN MAIN BUS LINES OR CONNECTOR (NO. 9 GLOBAL CAN JUNCTION CONNECTOR - ECM)

  23. CHECK FOR OPEN IN CAN MAIN BUS LINES (BRAKE ACTUATOR ASSEMBLY)
    1. Disconnect the brake actuator assembly connector.
    2. Measure the resistance according to the value(s) in the table below.
      GTY1033479Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Front view of wire harness connector
      (to Brake Actuator Assembly)

      Standard Resistance

      Tester Connection Condition Specified Condition
      A151-11 (CA2H) - A151-25 (CA2L) Cable disconnected from negative (-) auxiliary battery terminal 108 to 132 Ω

      Result

      Proceed to
      OK
      NG

    Result:

    OK

    REPLACE BRAKE ACTUATOR ASSEMBLY

    Refer to REMOVAL [11/2022 - ]

    Result:

    NG

    See step  24

  24. CHECK FOR OPEN IN CAN MAIN BUS LINES (NO. 9 GLOBAL CAN JUNCTION CONNECTOR - BRAKE ACTUATOR ASSEMBLY)
    1. Reconnect the A151 brake actuator assembly connector.
    2. Disconnect the No. 9 global CAN junction connector.
    3. Measure the resistance according to the value(s) in the table below.
      GTY1110005Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Front view of wire harness connector
      (to No. 9 Global CAN Junction Connector)      		 *b to Brake Actuator Assembly

      Standard Resistance

      Tester Connection Condition Specified Condition
      A193-1 (CANH) - A193-12 (CANL) Cable disconnected from negative (-) auxiliary battery terminal 108 to 132 Ω

      Result

      Proceed to
      OK
      NG

    Result:

    NG

    REPAIR OR REPLACE CAN MAIN BUS LINES OR CONNECTOR (NO. 9 GLOBAL CAN JUNCTION CONNECTOR - BRAKE ACTUATOR ASSEMBLY)

    Result:

    OK

    See step  25

  25. CHECK FOR OPEN IN CAN MAIN BUS LINES (NO. 9 GLOBAL CAN JUNCTION CONNECTOR - ECM)
    1. Measure the resistance according to the value(s) in the table below.
      GTY1110006Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Front view of wire harness connector
      (to No. 9 Global CAN Junction Connector)      		 *b to ECM

      Standard Resistance

      Tester Connection Condition Specified Condition
      A193-2 (CANH) - A193-13 (CANL) Cable disconnected from negative (-) auxiliary battery terminal 108 to 132 Ω

      Result

      Proceed to
      OK
      NG

    Result:

    OK

    REPLACE NO. 9 GLOBAL CAN JUNCTION CONNECTOR

    Result:

    NG

    See step  26

  26. CHECK FOR OPEN IN CAN MAIN BUS LINES (ECM)
    1. Reconnect the A193 No. 9 global CAN junction connector.
    2. Disconnect the ECM connector.
    3. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      A199-6 (CACH) - A199-7 (CACL) Cable disconnected from negative (-) auxiliary battery terminal 108 to 132 Ω

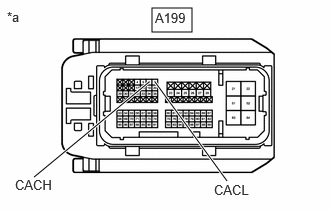

      GTY1179376Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Front view of wire harness connector
      (to ECM)

      Result

      Proceed to
      OK
      NG

    Result:

    OK

    REPLACE ECM

    Refer to REMOVAL [11/2023 - ]

    Result:

    NG

    REPAIR OR REPLACE CAN MAIN BUS LINES OR CONNECTOR (NO. 9 GLOBAL CAN JUNCTION CONNECTOR - ECM)

scientia non olet · About LEMON Manuals
