Reassembly [11/2022 - ]: Procedure

WARNING: This page is about a different car, the 2025 Toyota Corolla Cross, 2024 Toyota Corolla Cross, and 2023 Toyota Corolla Cross. However, it is still accessible from the selected car via links, so may be relevant.

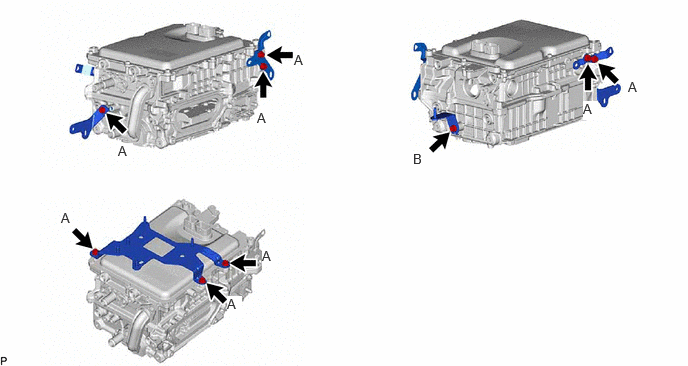

  1. INSTALL WIRE HARNESS CLAMP BRACKET
    1. GTY1103155Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Bolt A

      Torque: 10 N.m (102 kgf/cm, 7 ft.lbf)

      Bolt B

      Torque: 8.0 N.m (82 kgf/cm, 71 in.lbf)

  2. INSTALL FUEL HOSE BRACKET

    Torque: 13 N.m (133 kgf/cm, 10 ft.lbf)

  3. INSTALL HV AIR CONDITIONING WIRE
    GTY993405Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    WARNING:

    Be sure to wear insulated gloves.

    NOTE:
    • Do not allow any foreign matter or water to enter the inverter with converter assembly.
    • Do not touch the waterproof seal or terminals of the connector.
    • Do not damage the terminals, connector housing or inverter with converter assembly when connecting the connector.

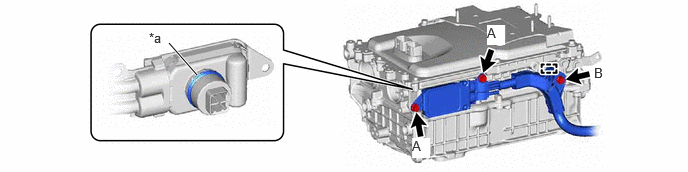

    1. GTY1103815Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Waterproof Seal - -

      Bolt A

      Torque: 8.0 N.m (82 kgf/cm, 71 in.lbf)

      Bolt B

      Torque: 10 N.m (102 kgf/cm, 7 ft.lbf)

  4. INSTALL NO. 3 ENGINE WIRE
    GTY993405Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    WARNING:

    Be sure to wear insulated gloves.

    NOTE:
    • Do not allow any foreign matter or water to enter the inverter with converter assembly.
    • Perform this procedure when it is necessary to replace the inverter with converter assembly and the No. 3 engine wire.

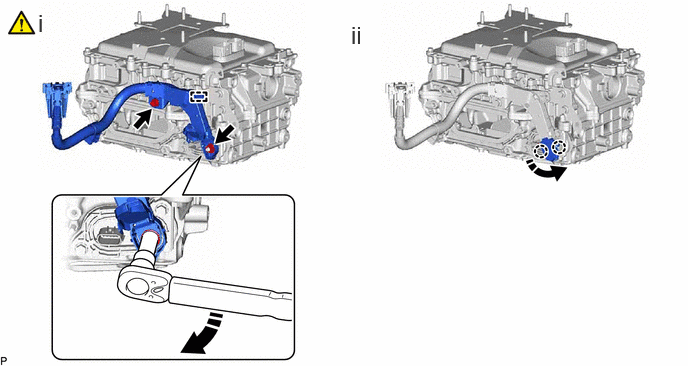

    1. GTY1104615Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Engage the clamp and connect the engine wire to the inverter with converter assembly with bolt and nut.

        Bolt

        Torque: 10 N.m (102 kgf/cm, 7 ft.lbf)

        Nut

        Torque: 16 N.m (163 kgf/cm, 12 ft.lbf)

        NOTE:
        • Move the tool in the downward direction to tighten the nut as shown in the illustration.
        • To avoid damaging the threads, be sure to perform the procedure by hand.
      2. Engage the 2 claws.
  5. INSTALL NO. 2 INVERTER BRACKET
    GTY993405Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    NOTE:

    Make sure to support the inverter with converter assembly at the positions shown in the illustration, otherwise it may be damaged.

    GTY1108542Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. *a: Bottom of Inverter with Converter Assembly

      *b: Support

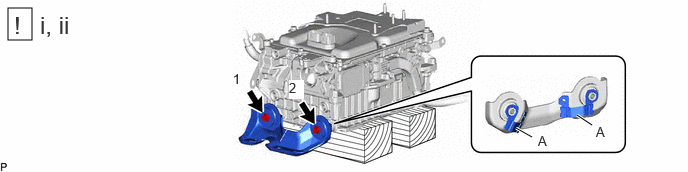

    1. Fig 1: No. 2 Inverter Bracket Tightening Sequence
      GTY1107458Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Set the inverter with converter assembly on wooden blocks.
      2. Temporarily install the No. 2 inverter bracket to the inverter with converter assembly with the 2 bolts.
        NOTE:

        Do not touch portion (A) of the No. 2 inverter bracket.

      3. Fully tighten the 2 bolts in the order shown in the illustration.

        Torque: 15 N.m (153 kgf/cm, 11 ft.lbf)

  6. INSTALL NO. 1 INVERTER BRACKET

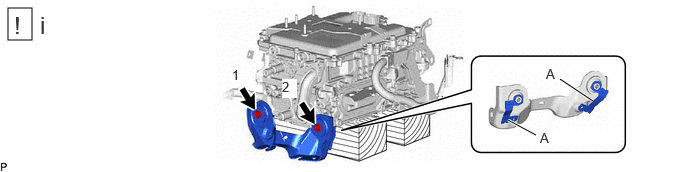

    1. Fig 2: No. 1 Inverter Bracket Bolts Tightening Sequence
      GTY1103737Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Temporarily install the No. 1 inverter bracket to the inverter with converter assembly with the 2 bolts.
        NOTE:

        Do not touch portion (A) of the No. 1 inverter bracket.

      2. Fully tighten the 2 bolts in the order shown in the illustration.

        Torque: 15 N.m (153 kgf/cm, 11 ft.lbf)
