Caution / Notice / Hint

WARNING: This page is about a different car, the 2025 Toyota Corolla Cross, 2024 Toyota Corolla Cross, and 2023 Toyota Corolla Cross. However, it is still accessible from the selected car via links, so may be relevant.

COMPONENTS (REASSEMBLY)

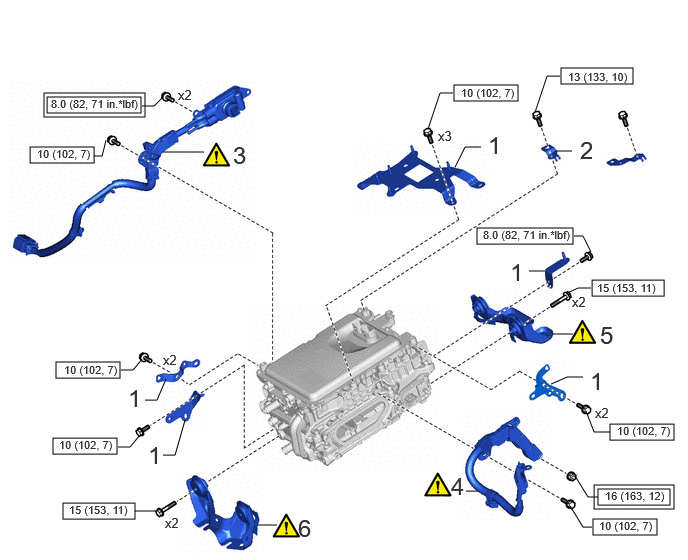

Fig 1: Inverter With Converter Reassembly Components With Torque Specifications

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002© TOYOTA, LICENSE AGREEMENT TMS1002

Callout - Procedure		Part Name Code	Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
1	WIRE HARNESS CLAMP BRACKET	-	-	-	-
2	FUEL HOSE BRACKET	23881B	-	-	-
3	HV AIR CONDITIONING WIRE	821H2	See step 3	-	-
4	NO. 3 ENGINE WIRE	82123	See step 4	-	-
5	NO. 2 INVERTER BRACKET	G9215	See step 5	-	-
6	NO. 1 INVERTER BRACKET	G9214	See step 6	-	-

Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping" : N.m (kgf/cm, ft.lbf)

N.m (kgf/cm, ft.lbf): Specified torque
