Disassembly [11/2022 - ]: Procedure

WARNING: This page is about a different car, the 2025 Toyota Corolla Cross, 2024 Toyota Corolla Cross, and 2023 Toyota Corolla Cross. However, it is still accessible from the selected car via links, so may be relevant.
  1. REMOVE NO. 1 INVERTER BRACKET
    GTY993405Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    NOTE:

    Make sure to support the inverter with converter assembly at the positions shown in the illustration, otherwise it may be damaged.

    GTY1108542Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. *a: Bottom of Inverter with Converter Assembly

      *b: Support

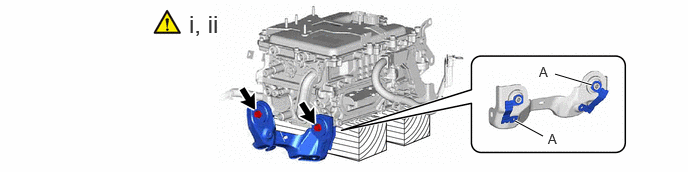

    1. GTY1108164Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Set the inverter with converter assembly on wooden blocks.
      2. Remove the 2 bolts and No. 1 inverter bracket from the inverter with converter assembly.
        NOTE:

        Do not touch portion (A) of the No. 1 inverter bracket.

  2. REMOVE NO. 2 INVERTER BRACKET

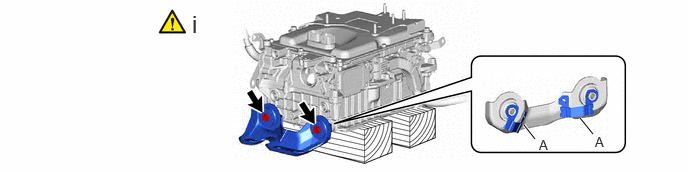

    1. GTY1109080Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Remove the 2 bolts and No. 2 inverter bracket from the inverter with converter assembly.
        NOTE:

        Do not touch portion (A) of the No. 2 inverter bracket.

  3. REMOVE NO. 3 ENGINE WIRE
    GTY993405Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    WARNING:

    Be sure to wear insulated gloves.

    NOTE:
    • Do not allow any foreign matter or water to enter the inverter with converter assembly.
    • Perform this procedure when it is necessary to replace the inverter with converter assembly or the No. 3 engine wire.

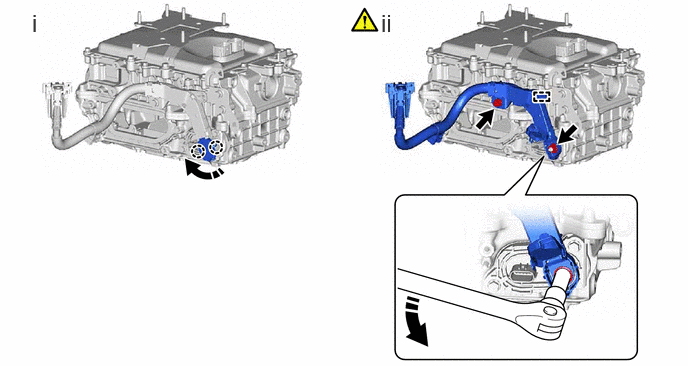

    1. GTY1108904Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Disengage the 2 claws and open the cover.
      2. Remove the bolt, nut, clamp and disconnect the no. 3 engine wire from the inverter with converter assembly.
        NOTE:

        Move the tool in the downward direction to loosen the nut as shown in the illustration.

  4. REMOVE HV AIR CONDITIONING WIRE
    GTY993405Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    WARNING:

    Be sure to wear insulated gloves.

    NOTE:
    • Do not touch the waterproof seal or terminals of the connector.
    • Do not damage the terminals, connector housing or inverter with converter assembly during disconnection.
    • Cover the hole where the cable was connected with tape (non-residue type) or equivalent to prevent entry of foreign matter.
    • Do not allow any foreign matter or water to enter the inverter with converter assembly.
    • Insulate the disconnected terminals with insulating tape.

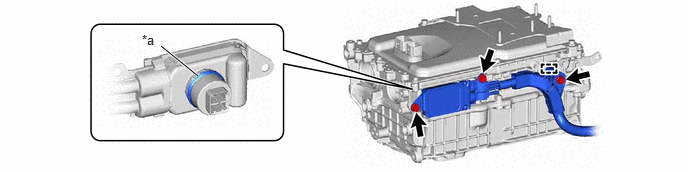

    1. GTY1103814Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Waterproof Seal - -
  5. REMOVE FUEL HOSE BRACKET

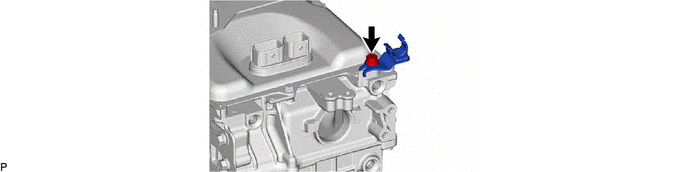

    1. GTY1106598Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  6. REMOVE WIRE HARNESS CLAMP BRACKET

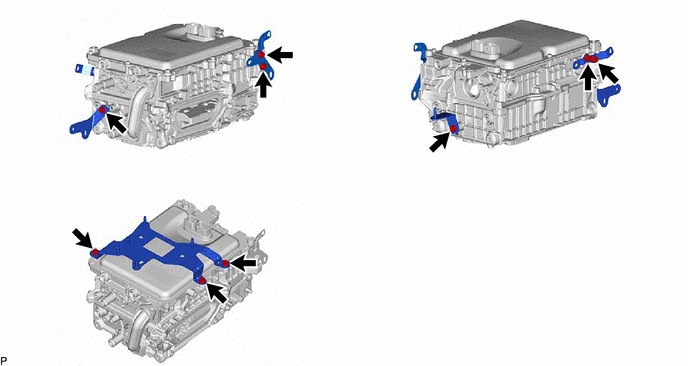

    1. GTY1104787Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
