COMPONENTS (REMOVAL)
| Callout - Procedure | Part Name Code | ||||
|---|---|---|---|---|---|
| 1 | PRECAUTION | - | See step 1 | - | - |
| 2 | READ VALUE USING GTS | - | See step 2 | - | - |
| 3 | SERVICE PLUG GRIP | G3834 | - | - | - |
| 4 | REMOVE CONNECTOR COVER ASSEMBLY | - | See step 4 | - | - |
| 5 | TERMINAL VOLTAGE | - | See step 5 | - | - |
| 6 | INSTALL CONNECTOR COVER ASSEMBLY | - | See step 6 | - | - |
| Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping" : N.m (kgf/cm, ft.lbf) | N.m (kgf/cm, ft.lbf): Specified torque |

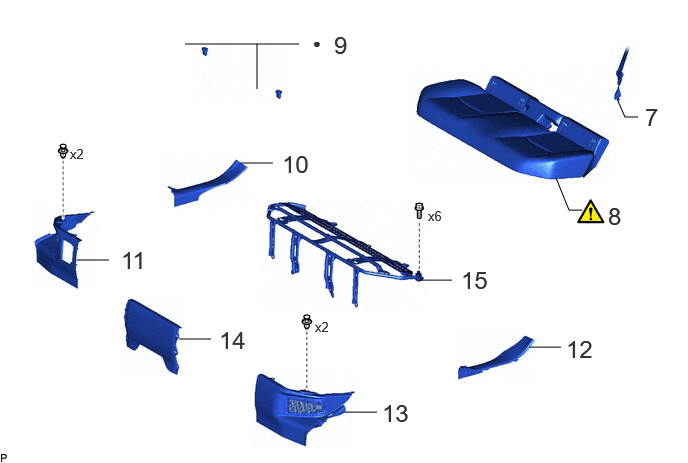

| Procedure | Part Name Code | ||||
|---|---|---|---|---|---|
| 7 | REAR CENTER SEAT OUTER BELT ASSEMBLY | 73350C | - | - | - |
| 8 | BENCH TYPE REAR SEAT CUSHION ASSEMBLY | - | See step 8 | - | - |
| 9 | REAR SEAT CUSHION LOCK HOOK | 72693 | - | - | - |
| 10 | REAR DOOR SCUFF PLATE RH | 67917A | - | - | - |
| 11 | REAR UNDER SIDE COVER RH | 76973F | - | - | - |
| 12 | REAR DOOR SCUFF PLATE LH | 67918A | - | - | - |
| 13 | REAR UNDER SIDE COVER LH | 76974F | - | - | - |
| 14 | REAR UNDER COVER | 76971G | - | - | - |
| 15 | REAR SEAT CUSHION LEG SUB-ASSEMBLY | 71033 | - | - | - |

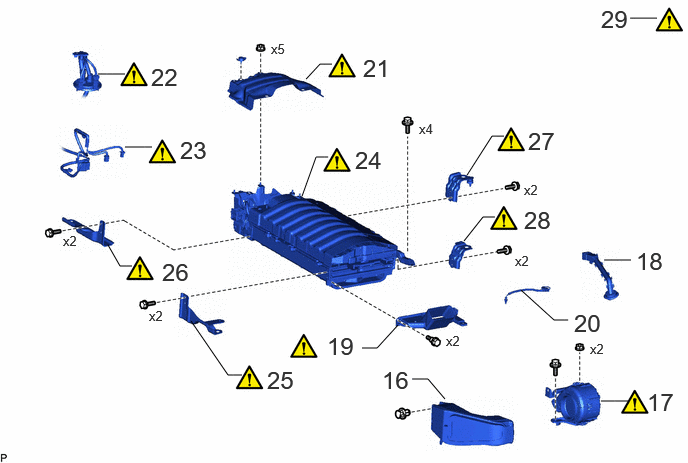

| Procedure | Part Name Code | ||||
|---|---|---|---|---|---|
| 16 | NO. 1 EV BATTERY INTAKE DUCT | G92D1A | - | - | - |
| 17 | BATTERY COOLING BLOWER ASSEMBLY | G9230 | See step 17 | - | - |
| 18 | HYBRID BATTERY HOSE ASSEMBLY | G9290A | - | - | - |
| 19 | NO. 2 HYBRID BATTERY INTAKE DUCT | G92D2 | See step 19 | - | - |
| 20 | NO. 3 HV BATTERY PACK WIRE | G92X3 | - | - | - |
| 21 | NO. 1 HYBRID BATTERY SHIELD SUB-ASSEMBLY | G920Q | See step 21 | - | - |
| 22 | FLOOR UNDER WIRE | 821H1 | See step 22 | - | - |
| 23 | FLOOR WIRE | 82161 | See step 23 | - | - |
| 24 | HV SUPPLY BATTERY ASSEMBLY | G9510 | See step 24 | - | - |
| 25 | NO. 1 HV BATTERY CARRIER BRACKET SUB-ASSEMBLY | G920B | See step 25 | - | - |
| 26 | NO. 2 HYBRID BATTERY CARRIER BRACKET | G92K4 | See step 26 | - | - |
| 27 | NO. 3 HV BATTERY CARRIER BRACKET | G92K5 | See step 27 | - | - |
| 28 | NO. 4 HV BATTERY CARRIER BRACKET | G92K6 | See step 28 | - | - |
| 29 | RECOVERY INSPECTION | - | See step 29 | - | - |
The necessary procedures (adjustment, calibration, initialization, or registration) that must be performed after parts are removed and installed, or replaced during HV battery removal/installation are shown below.
NECESSARY PROCEDURES AFTER PARTS REMOVED/INSTALLED/REPLACED
| Replaced Part or Performed Procedure | Necessary Procedures | Effect/Inoperative Function when Necessary Procedure not Performed | Link |
|---|---|---|---|
| Replacement of HV battery |
|
HV battery status information cannot be updated | Refer to UTILITY [11/2022 - ] |
| Replacement of hybrid battery terminal block | Perform high voltage fuse accumulated load history reset | DTCs are stored | See step 15 |
WARNING:
- Orange wire harnesses and connectors indicate high-voltage circuits. To prevent electric shock, always follow the procedure described in the appropriate service information
.
Refer to PRECAUTION [11/2022 - 12/2024] , or refer to PRECAUTION [12/2024 - ]
- To prevent electric shock, wear insulated gloves when working on wire harnesses and components of the high voltage system.
HINT:
- When disposing of an HV battery, make sure to return it through an authorized collection agent who is capable of handling it safely. If the HV battery is returned via the manufacturer specified route, it will be returned properly and in a safe manner by an authorized collection agent.
- When the cable is disconnected / reconnected to the auxiliary battery terminal, systems temporarily stop operating. However, each system has a function that completes learning the first time the system is used.
- Learning completes when vehicle is driven.
Effect/Inoperative Function When Necessary Procedures are not Performed Necessary Procedures Link Front Camera System Drive the vehicle straight ahead at 15 km/h (10 mph) or more for 1 second or more. Refer to INITIALIZATION [11/2022 - ] - Learning completes when vehicle is operated normally
Effect/Inoperative Function When Necessary Procedures are not Performed Necessary Procedures Link Power door lock control system - Back door opener
Perform door unlock operation with door control switch or electrical key transmitter sub-assembly switch. Refer to INITIALIZATION [11/2022 - ] Power back door system Fully close the back door by hand.
HINT:
Initialization is not necessary if the above procedures are performed while the back door is closed.Refer to INITIALIZATION [09/2021 - ] Air conditioning system After the ignition switch is turned to ON, the servo motor standard position is recognized. -
