Caution / Notice / Hint

WARNING: This page is about a different car, the 2025 Toyota Corolla Cross, 2024 Toyota Corolla Cross, and 2023 Toyota Corolla Cross. However, it is still accessible from the selected car via links, so may be relevant.

COMPONENTS (REMOVAL)

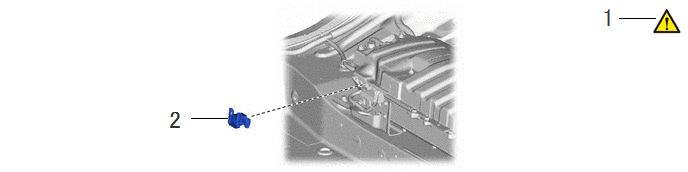

Fig 1: Frame Wire Removal Components (1 Of 5)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Procedure		Part Name Code	Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
1	PRECAUTION	-	See step 1	-	-
2	SERVICE PLUG GRIP	G3834	-	-	-

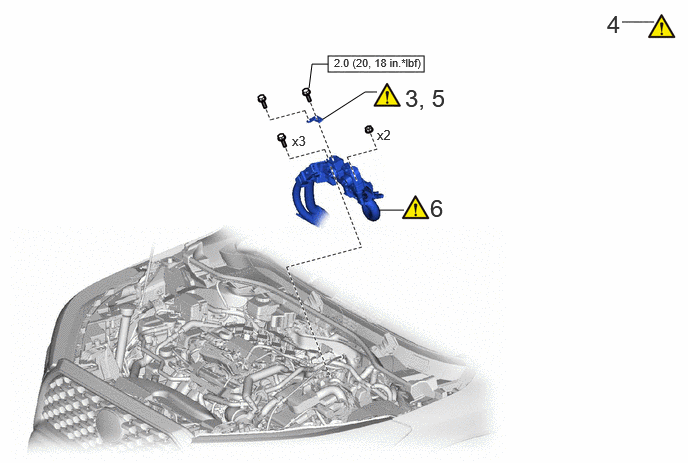

Fig 2: Frame Wire Removal Components With Torque Specifications (2 Of 5)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002© TOYOTA, LICENSE AGREEMENT TMS1002

Callout - Procedure		Part Name Code	Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3	REMOVE CONNECTOR COVER ASSEMBLY	-	See step 3	-	-
4	TERMINAL VOLTAGE	-	See step 4	-	-
5	TEMPORARILY INSTALL CONNECTOR COVER ASSEMBLY	-	See step 5	-	-
6	FLOOR UNDER WIRE	821H1	See step 6	-	-

N.m (kgf/cm, ft.lbf): Specified torque

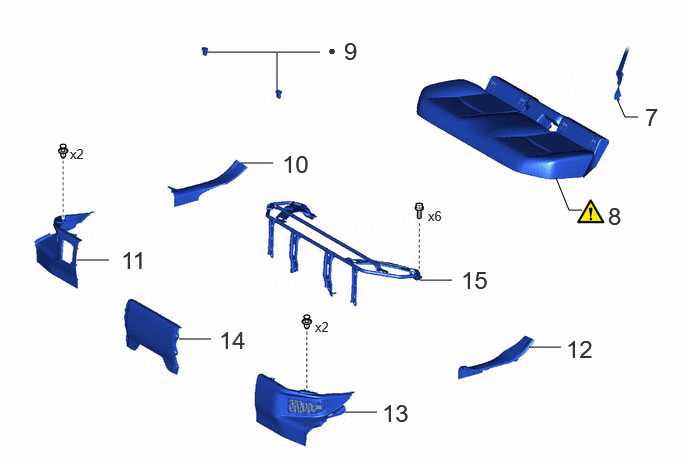

Fig 3: Frame Wire Removal Components (3 Of 5)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Procedure		Part Name Code	Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
7	REAR CENTER SEAT OUTER BELT ASSEMBLY	73350C	-	-	-
8	BENCH TYPE REAR SEAT CUSHION ASSEMBLY	-	See step 8	-	-
9	REAR SEAT CUSHION LOCK HOOK	72693	-	-	-
10	REAR DOOR SCUFF PLATE RH	67917A	-	-	-
11	REAR UNDER SIDE COVER RH	76973F	-	-	-
12	REAR DOOR SCUFF PLATE LH	67918A	-	-	-
13	REAR UNDER SIDE COVER LH	76974F	-	-	-
14	REAR UNDER COVER	76971G	-	-	-
15	REAR SEAT CUSHION LEG SUB-ASSEMBLY	71033	-	-	-

•

Non-reusable part

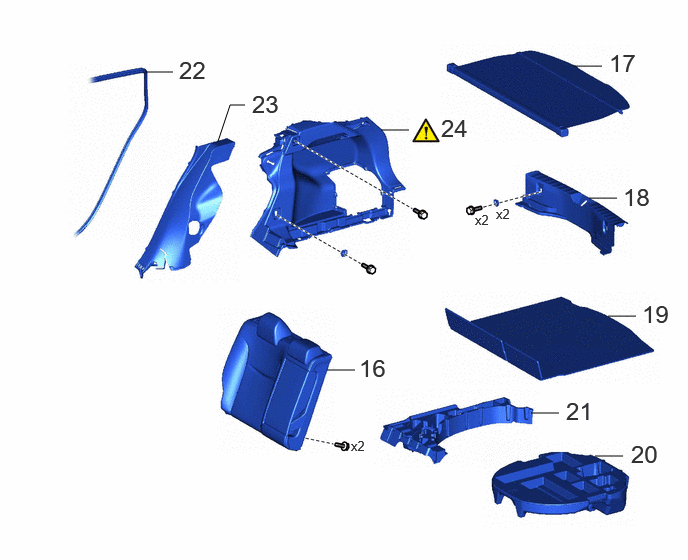

Fig 4: Frame Wire Removal Components (4 Of 5)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Procedure		Part Name Code	Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
16	REAR SEATBACK ASSEMBLY RH	-	-	-	-
17	TONNEAU COVER ASSEMBLY	64910J	-	-	-
18	REAR DECK TRIM COVER	64716D	-	-	-
19	DECK BOARD ASSEMBLY	58410B	-	-	-
20	SPARE WHEEL CUSHION	64777J	-	-	-
21	DECK FLOOR BOX RH	64995	-	-	-
22	REAR DOOR OPENING TRIM WEATHERSTRIP RH	62331A	-	-	-
23	REAR SEAT SIDE GARNISH RH	62551F	-	-	-
24	DECK TRIM SIDE PANEL ASSEMBLY RH	64730B	See step 24	-	-

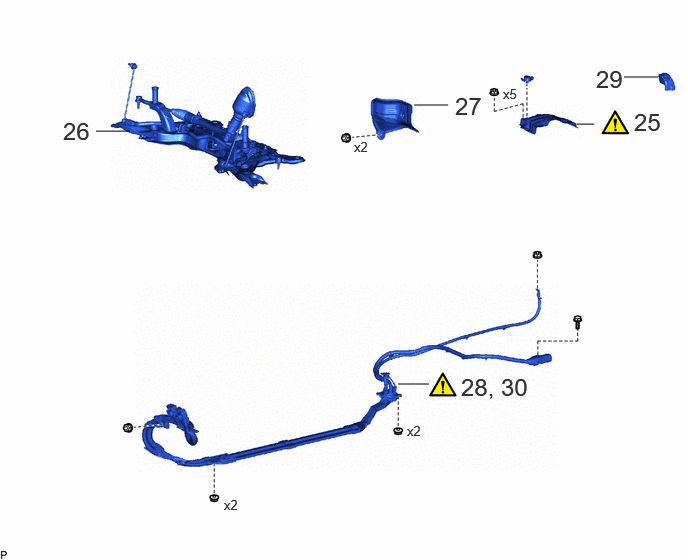

Fig 5: Frame Wire Removal Components (5 Of 5)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Procedure		Part Name Code	Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
25	NO. 1 HYBRID BATTERY SHIELD SUB-ASSEMBLY	G920Q	See step 25	-	-
26	FRONT SUSPENSION CROSSMEMBER SUB-ASSEMBLY	51201	-	-	-
27	DASH PANEL HEAT INSULATOR	55225C	-	-	-
28	DISCONNECT FLOOR UNDER WIRE	821H1	See step 28	-	-
29	BATTERY TERMINAL CONNECTOR COVER	28800D	-	-	-
30	REMOVE FLOOR UNDER WIRE	821H1	See step 30	-	-

WARNING:

Orange wire harnesses and connectors indicate high-voltage circuits. To prevent electric shock, always follow the procedure described in the appropriate service information .

Refer to PRECAUTION [11/2022 - 12/2024] , or refer to PRECAUTION [12/2024 - ]

To prevent electric shock, wear insulated gloves when working on wire harnesses and components of the high voltage system.

HINT:

When the cable is disconnected / reconnected to the auxiliary battery terminal, systems temporarily stop operating. However, each system has a function that completes learning the first time the system is used.

Learning completes when vehicle is driven.

Effect/Inoperative Function When Necessary Procedures are not Performed	Necessary Procedures	Link
Front Camera System	Drive the vehicle straight ahead at 15 km/h (10 mph) or more for 1 second or more.	Refer to INITIALIZATION [11/2022 - ]

Learning completes when vehicle is operated normally

Effect/Inoperative Function When Necessary Procedures are not Performed	Necessary Procedures	Link
Power door lock control system Back door opener	Perform door unlock operation with door control switch or electrical key transmitter sub-assembly switch.	Refer to INITIALIZATION [11/2022 - ]
Power back door system	Fully close the back door by hand. HINT: Initialization is not necessary if the above procedures are performed while the back door is closed.	Refer to INITIALIZATION [09/2021 - ]
Air conditioning system	After the ignition switch is turned to ON, the servo motor standard position is recognized.	-
