COMPONENTS (REMOVAL)
| Callout - Procedure | Part Name Code | ||||
|---|---|---|---|---|---|
| 1 | PRECAUTION | - | See step 1 | - | - |
| 2 | WHEN REPLACING BATTERY ECU ASSEMBLY | - | See step 2 | - | - |

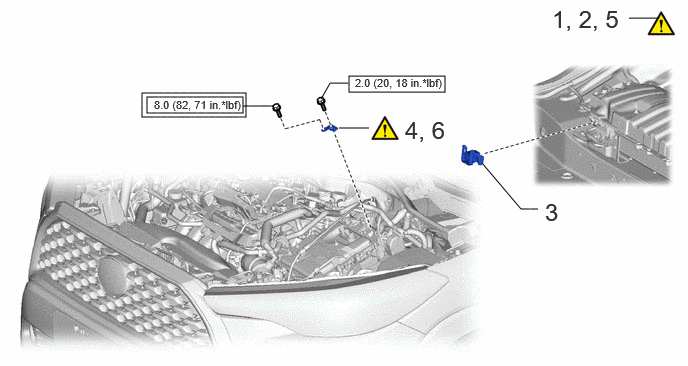

| 3 | SERVICE PLUG GRIP | G3834 | - | - | - |
| 4 | REMOVE CONNECTOR COVER ASSEMBLY | - | See step 4 | - | - |
| 5 | TERMINAL VOLTAGE | - | See step 5 | - | - |
| 6 | INSTALL CONNECTOR COVER ASSEMBLY | - | See step 6 | - | - |
| Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping" : N.m (kgf/cm, ft.lbf) | N.m (kgf/cm, ft.lbf): Specified torque |
| Procedure | Part Name Code | ||||
|---|---|---|---|---|---|

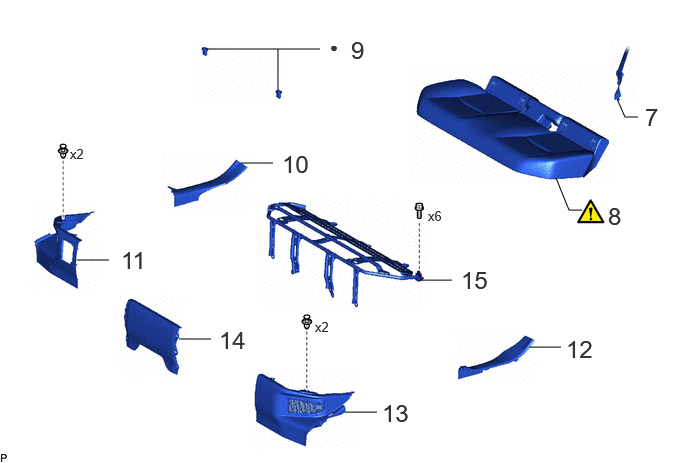

| 7 | REAR CENTER SEAT OUTER BELT ASSEMBLY | 73350C | - | - | - |
| 8 | BENCH TYPE REAR SEAT CUSHION ASSEMBLY | - | See step 8 | - | - |
| 9 | REAR SEAT CUSHION LOCK HOOK | 72693 | - | - | - |
| 10 | REAR DOOR SCUFF PLATE RH | 67917A | - | - | - |
| 11 | REAR UNDER SIDE COVER RH | 76973F | - | - | - |
| 12 | REAR DOOR SCUFF PLATE LH | 67918A | - | - | - |
| 13 | REAR UNDER SIDE COVER LH | 76974F | - | - | - |
| 14 | REAR UNDER COVER | 76971G | - | - | - |
| 15 | REAR SEAT CUSHION LEG SUB-ASSEMBLY | 71033 | - | - | - |
| • | Non-reusable part | - | - |
| Procedure | Part Name Code | ||||
|---|---|---|---|---|---|

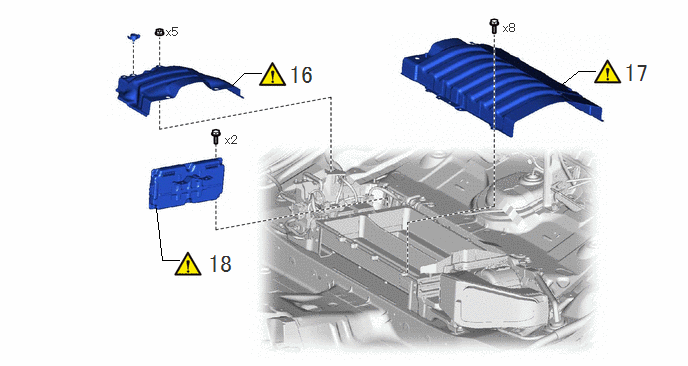

| 16 | NO. 1 HYBRID BATTERY SHIELD SUB-ASSEMBLY | G920Q | See step 16 | - | - |
| 17 | UPPER HV BATTERY COVER SUB-ASSEMBLY | - | See step 17 | - | - |
| 18 | BATTERY ECU ASSEMBLY | 89890A | See step 18 | - | - |
The necessary procedures (adjustment, calibration, initialization, or registration) that must be performed after parts are removed and installed, or replaced during battery ECU assembly removal/installation are shown below.
NECESSARY PROCEDURES AFTER PARTS REMOVED/INSTALLED/REPLACED
| Replaced Part or Performed Procedure | Necessary Procedures | Effect/Inoperative Function when Necessary Procedure not Performed | Link |
|---|---|---|---|
| Replacement of battery ECU assembly | Current sensor offset learning | DTCs are stored | See step 15 |
WARNING:
- Orange wire harnesses and connectors indicate high-voltage circuits. To prevent electric shock, always follow the procedure described in the appropriate service information
.
Refer to PRECAUTION [11/2022 - 12/2024] , or refer to PRECAUTION [12/2024 - ]
- To prevent electric shock, wear insulated gloves when working on wire harnesses and components of the high voltage system.
NOTE:
- The type of battery ECU assembly to be used varies depending on the vehicle model.
- The type of battery ECU assembly to be used varies depending on the vehicle model.
- If the wrong type of battery ECU assembly is installed, the ignition switch cannot be turned on (READY).
- After installing the battery ECU assembly, perform the following to check that the ignition switch can be turned on (READY).
- Turn the ignition switch to ON (READY).
- Turn the ignition switch off and wait for 30 seconds or more.
- Turn the ignition switch on (READY) again.
HINT:
When the cable is disconnected/reconnected to the auxiliary battery terminal, systems temporarily stop operating. However, each system has a function that completes learning the first time the system is used.
- Learning completes when vehicle is driven.
Effect/Inoperative Function When Necessary Procedures are not Performed Necessary Procedures Link Front Camera System Drive the vehicle straight ahead at 15 km/h (10 mph) or more for 1 second or more. Refer to INITIALIZATION [11/2022 - ] - Learning completes when vehicle is operated normally
Effect/Inoperative Function When Necessary Procedures are not Performed Necessary Procedures Link Power door lock control system - Back door opener
Perform door unlock operation with door control switch or electrical key transmitter sub-assembly switch. Refer to INITIALIZATION [11/2022 - ] Power back door system Fully close the back door by hand.
HINT:
Initialization is not necessary if the above procedures are performed while the back door is closed.Refer to INITIALIZATION [09/2021 - ] Air conditioning system After the ignition switch is turned to ON, the servo motor standard position is recognized. -
