COMPONENTS (REMOVAL)

Fig 1: Battery Blower Removal Components (1 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Procedure		Part Name Code	Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
1	REAR CENTER SEAT OUTER BELT ASSEMBLY	73350C	-	-	-
2	BENCH TYPE REAR SEAT CUSHION ASSEMBLY	-	See step 2	-	-
3	REAR SEAT CUSHION LOCK HOOK	72693	-	-	-
4	REAR DOOR SCUFF PLATE RH	67917A	-	-	-
5	REAR UNDER SIDE COVER RH	76973F	-	-	-
6	REAR DOOR SCUFF PLATE LH	67918A	-	-	-
7	REAR UNDER SIDE COVER LH	76974F	-	-	-
8	REAR UNDER COVER	76971G	-	-	-
9	REAR SEAT CUSHION LEG SUB-ASSEMBLY	71033	-	-	-

•

Non-reusable part

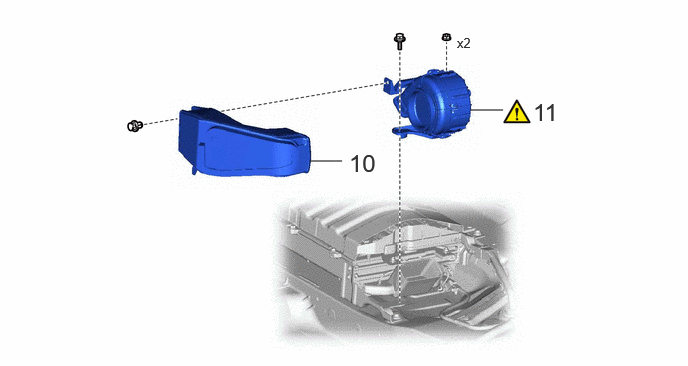

Fig 2: Battery Blower Removal Components (2 Of 2)

Procedure		Part Name Code	Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
10	NO. 1 EV BATTERY INTAKE DUCT	G92D1A	-	-	-
11	BATTERY COOLING BLOWER ASSEMBLY	G9230	-	-	-
