Parts Location [11/2022 - ]: Illustration
WARNING: This page is about a different car, the 2025 Toyota Corolla Cross, 2024 Toyota Corolla Cross, and 2023 Toyota Corolla Cross. However, it is still accessible from the selected car via links, so may be relevant.

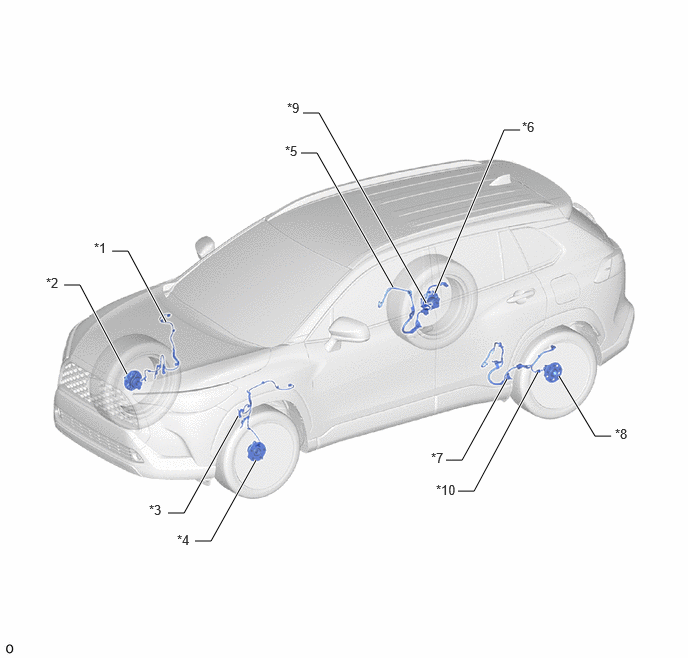

Fig 1: Electronically Controlled Brake System (For Hev Model) Replacement Components (1 Of 3) [11/2022 - ]
| *1 | FRONT SPEED SENSOR RH | *2 | FRONT AXLE HUB SUB-ASSEMBLY RH - FRONT SPEED SENSOR ROTOR RH |
| *3 | FRONT SPEED SENSOR LH | *4 | FRONT AXLE HUB SUB-ASSEMBLY LH - FRONT SPEED SENSOR ROTOR LH |
| *5 | NO. 1 PARKING BRAKE WIRE ASSEMBLY - SKID CONTROL SENSOR WIRE RH |
*6 | REAR AXLE HUB AND BEARING ASSEMBLY RH - REAR SPEED SENSOR ROTOR RH |
| *7 | NO. 2 PARKING BRAKE WIRE ASSEMBLY - SKID CONTROL SENSOR WIRE LH |
*8 | REAR AXLE HUB AND BEARING ASSEMBLY LH - REAR SPEED SENSOR ROTOR LH |
| *9 | REAR SPEED SENSOR RH | *10 | REAR SPEED SENSOR LH |

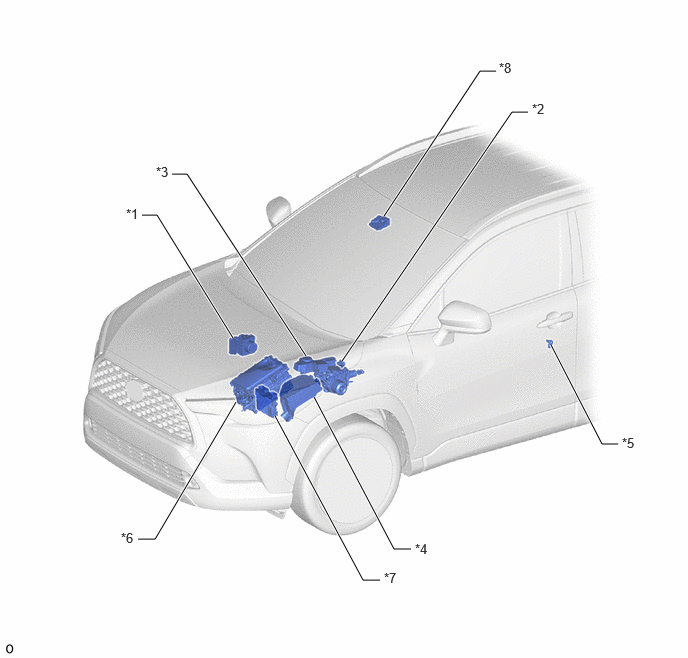

Fig 1: Electronically Controlled Brake System (For Hev Model) Replacement Components (2 Of 3) [11/2022 - ]
| *1 | BRAKE ACTUATOR ASSEMBLY - SKID CONTROL ECU |
*2 | BRAKE BOOSTER WITH MASTER CYLINDER ASSEMBLY - ELECTRIC BRAKE BOOSTER - MOTOR ROTATION ANGLE SENSOR - RELATIVE DISPLACEMENT SENSOR - MOTOR |
| *3 | BRAKE MASTER CYLINDER RESERVOIR ASSEMBLY - BRAKE FLUID LEVEL WARNING SWITCH |
*4 | NO. 1 ENGINE ROOM RELAY BLOCK AND NO. 1 JUNCTION BLOCK ASSEMBLY - ABS NO. 1 FUSE - ABS NO. 2 FUSE - ABS MAIN FUSE - CAPACITOR FUSE |
| *5 | FRONT DOOR COURTESY LIGHT SWITCH ASSEMBLY (FOR DRIVER SIDE) | *6 | INVERTER WITH CONVERTER ASSEMBLY |
| *7 | ECM | *8 | FORWARD RECOGNITION CAMERA |

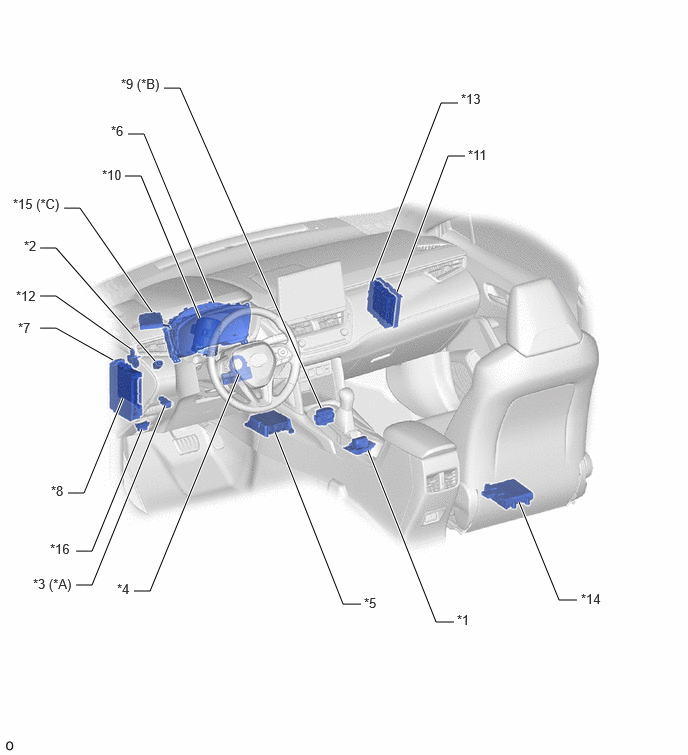

Fig 1: Electronically Controlled Brake System (For Hev Model) Replacement Components (3 Of 3) [11/2022 - ]
| *A | for Instrument Panel Side | *B | for Console Box |
| *C | w/ Parking Support Brake System | - | - |
| *1 | ELECTRIC PARKING BRAKE SWITCH ASSEMBLY - BRAKE HOLD SWITCH |
*2 | STOP LIGHT SWITCH ASSEMBLY - STOP LIGHT CONTROL RELAY |
| *3 | VSC OFF SWITCH | *4 | STEERING SENSOR |
| *5 | AIRBAG ECU ASSEMBLY - YAW RATE AND ACCELERATION SENSOR |
*6 | COMBINATION METER ASSEMBLY - ABS WARNING LIGHT - BRAKE SYSTEM WARNING LIGHT (RED INDICATOR) - BRAKE SYSTEM WARNING LIGHT (YELLOW INDICATOR) - SLIP INDICATOR LIGHT - VSC OFF INDICATOR LIGHT - BRAKE HOLD STANDBY INDICATOR LIGHT - BRAKE HOLD OPERATED INDICATOR LIGHT - MULTI-INFORMATION DISPLAY (TRACTION CONTROL TURNED OFF) - METER BUZZER |
| *7 | POWER DISTRIBUTION BOX ASSEMBLY - STOP FUSE - ECU-DCC NO. 1 FUSE - ECU-IGR NO. 4 FUSE - A/BAG-IGR FUSE |
*8 | MAIN BODY ECU (MULTIPLEX NETWORK BODY ECU) |
| *9 | COMBINATION SWITCH ASSEMBLY - VSC OFF SWITCH |
*10 | POWER STEERING ECU ASSEMBLY |
| *11 | CERTIFICATION ECU (SMART KEY ECU ASSEMBLY) | *12 | BRAKE PEDAL STROKE SENSOR ASSEMBLY |
| *13 | HYBRID VEHICLE CONTROL ECU | *14 | BRAKE CONTROL POWER SUPPLY ASSEMBLY |
| *15 | CLEARANCE WARNING ECU ASSEMBLY | *16 | DLC3 |
