Removal [11/2023 - ]: Procedure

WARNING: This page is about a different car, the 2025 Toyota Corolla Cross and 2024 Toyota Corolla Cross. However, it is still accessible from the selected car via links, so may be relevant.
  1. REMOVE TRANSMISSION VALVE BODY ASSEMBLY

    Refer to REMOVAL [11/2023 - ]

  2. REMOVE TRANSMISSION WIRE

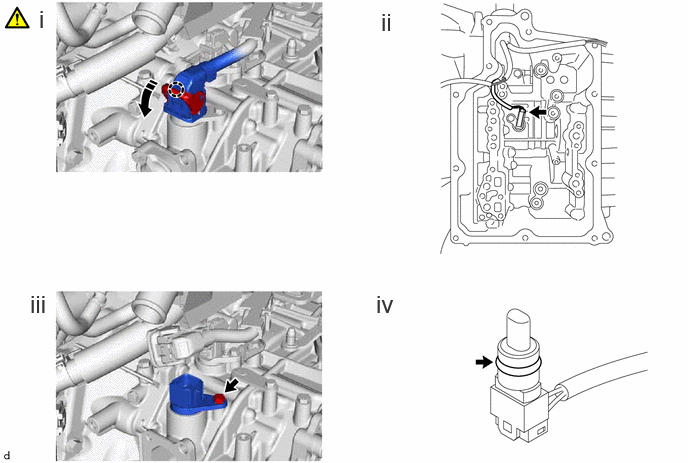

    1. GTY1180294Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Disengage the claw, rotate the lever and disconnect the transmission wire connector.
      2. Disconnect the transmission revolution sensor (NC1) connector.
      3. Remove the bolt and transmission wire from the transaxle case sub-assembly.
      4. Remove the O-ring from the temperature sensor.
