Caution / Notice / Hint
WARNING: This page is about a different car, the 2025 Toyota Corolla Cross and 2024 Toyota Corolla Cross. However, it is still accessible from the selected car via links, so may be relevant.

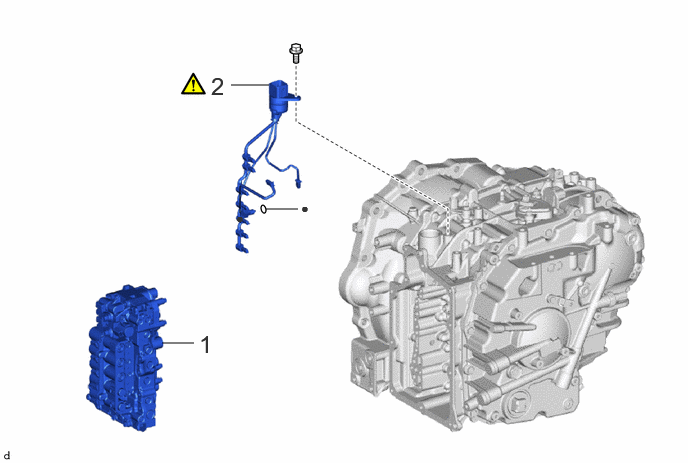

COMPONENTS (REMOVAL)
| Procedure | Part Name Code | ||||
|---|---|---|---|---|---|
| 1 | TRANSMISSION VALVE BODY ASSEMBLY | 35410J | - | - | - |
| 2 | TRANSMISSION WIRE | 82125M | See step 2 | - | - |
| • | Non-reusable part | - | - |
The necessary procedures (adjustment, calibration, initialization, or registration) that must be performed after parts are removed and installed, or replaced during the transmission wire removal/installation are shown below.
NECESSARY PROCEDURE AFTER PARTS REMOVED/INSTALLED/REPLACED
| Replacement Part or Procedure | Necessary Procedures | Effect/Inoperative Function When Necessary Procedures are not Performed | Link |
|---|---|---|---|
| CVT fluid | ATF thermal degradation estimate reset | The value of the Data List item "ATF Thermal Degradation Estimate" is not estimated correctly | Refer to INITIALIZATION [11/2023 - ] |
| Bleed air from oil pump (continuously variable transaxle assembly) | Stop and start system | Refer to REGISTRATION [09/2021 - ] |
