Removal [11/2023 - ]: Procedure

WARNING: This page is about a different car, the 2025 Toyota Corolla Cross and 2024 Toyota Corolla Cross. However, it is still accessible from the selected car via links, so may be relevant.
  1. REMOVE NO. 1 ENGINE UNDER COVER ASSEMBLY

    Refer to PROCEDURE - Step 8

  2. REMOVE REAR ENGINE UNDER COVER LH

    Refer to PROCEDURE - Step 9

  3. DRAIN ENGINE COOLANT

    Refer to PROCEDURE - Step 1

  4. DRAIN CONTINUOUSLY VARIABLE TRANSAXLE FLUID

    See step  3

  5. DISCONNECT NO. 2 WATER BY-PASS HOSE

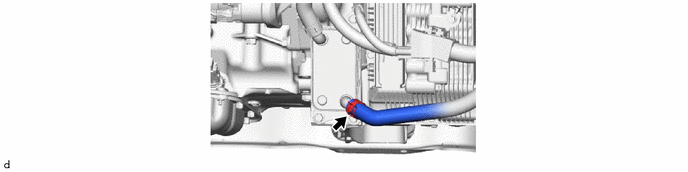

    1. GTY1179649Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  6. DISCONNECT INLET WATER HOSE

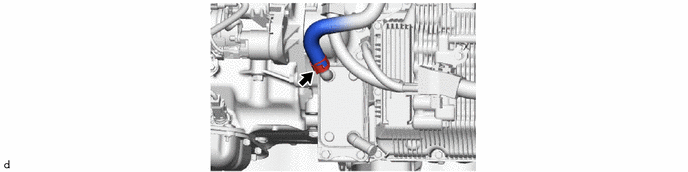

    1. GTY1179647Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  7. REMOVE TRANSMISSION OIL COOLER

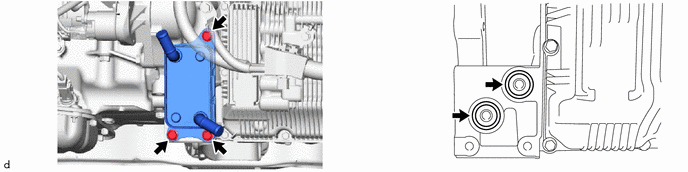

    1. GTY1179235Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
