Removal [11/2023 - ]: Procedure

WARNING: This page is about a different car, the 2025 Toyota Corolla Cross and 2024 Toyota Corolla Cross. However, it is still accessible from the selected car via links, so may be relevant.

SECURE VEHICLE

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

See step 1

REMOVE AUXILIARY BATTERY
Refer to REMOVAL [11/2022 - ]
REMOVE ECM
Refer to REMOVAL [11/2023 - ]
REMOVE BATTERY CLAMP SUB-ASSEMBLY
Refer to PROCEDURE - Step 18
REMOVE FRONT FLOOR CENTER BRACE
Refer to PROCEDURE - Step 1

REMOVE FRONT EXHAUST PIPE ASSEMBLY (TWC: Rear Catalyst)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Refer to PROCEDURE - Step 2

REMOVE FRONT LOWER NO. 1 FLOOR HEAT INSULATOR
Refer to PROCEDURE - Step 3

REMOVE SHIFT LOCK RELEASE BUTTON COVER

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

See step 2

REMOVE CONSOLE BOX ASSEMBLY
Refer to REMOVAL [11/2023 - ]
REMOVE NO. 3 CONSOLE BOX DUCT
Refer to PROCEDURE - Step 21
REMOVE NO. 2 CONSOLE BOX DUCT
Refer to PROCEDURE - Step 22
REMOVE NO. 1 CONSOLE BOX DUCT
Refer to PROCEDURE - Step 23

DISCONNECT TRANSMISSION CONTROL CABLE ASSEMBLY (Shift Lever Side)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

See step 8

DISCONNECT TRANSMISSION CONTROL CABLE ASSEMBLY (Transaxle Side)

See step 5

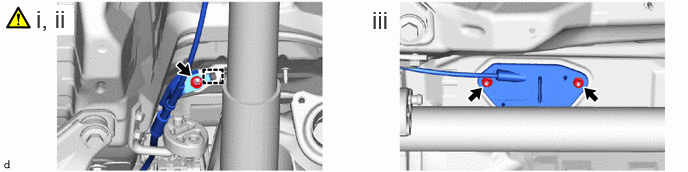

REMOVE TRANSMISSION CONTROL CABLE ASSEMBLY

Remove the nut.
Disengage the guide to separate the transmission control cable assembly from the vehicle body.
Remove the 2 nuts and transmission control cable assembly from the vehicle body.
