DTC P0ABF-2A: Hybrid/EV Battery Current Sensor "A" Signal Stuck In Range [11/2022 - ]: Procedure

WARNING: This page is about a different car, the 2025 Toyota Corolla Cross, 2024 Toyota Corolla Cross, and 2023 Toyota Corolla Cross. However, it is still accessible from the selected car via links, so may be relevant.
  1. CHECK DTC OUTPUT (HV BATTERY, HYBRID CONTROL)
    1. Check for DTCs.

      Powertrain > HV Battery > Trouble Codes

      Powertrain > Hybrid Control > Trouble Codes

      Result

      Result Proceed to
      "P0ABF-2A" only is output, or DTCs except the ones in the table below are also output. A
      DTCs of hybrid battery system in the table below are output. B
      DTCs of hybrid control system in the table below are output. C
      System Relevant DTC
      Hybrid battery system P060A-47 Hybrid/EV Battery Energy Control Module Monitoring Processor Watchdog / Safety MCU Failure
      P060B-49 Hybrid/EV Battery Energy Control Module A/D Processing Internal Electronic Failure
      P0606-87 Hybrid/EV Battery Energy Control Module Processor to Monitoring Processor Missing Message
      P0ABF-11 Hybrid/EV Battery Current Sensor "A" Circuit Short to Ground
      P0ABF-15 Hybrid/EV Battery Current Sensor "A" Circuit Short to Auxiliary Battery or Open
      P1CBB-12 Hybrid/EV Battery Current Sensor Power Supply Circuit Short to Auxiliary Battery
      P1CBB-14 Hybrid/EV Battery Current Sensor Power Supply Circuit Short to Ground or Open
      Hybrid control system P0A1F-94 Hybrid/EV Battery Energy Control Module Unexpected Operation
    2. Turn the ignition switch off.

    Result:

    B

    GO TO DTC CHART (HYBRID BATTERY SYSTEM). Refer to  DIAGNOSTIC TROUBLE CODE CHART [11/2022 - ]

    Result:

    C

    GO TO DTC CHART (HYBRID CONTROL SYSTEM)

    Refer to DIAGNOSTIC TROUBLE CODE CHART [11/2022 - 12/2024] , or refer to DIAGNOSTIC TROUBLE CODE CHART [12/2024 - ]

    Result:

    A

    See step  2

  2. READ VALUE USING GTS (HYBRID/EV BATTERY CELL VOLTAGE)
    1. Turn the ignition switch to ON.
      NOTE:

      Do not turn the ignition switch to ON (READY).

    2. Check the voltage of each "Battery Cell Vol" of "Hybrid/EV Battery Cell 1 to 60 Voltage" in the Data List with the ignition switch ON.

      Powertrain > HV Battery > Data List

      Tester Display
      Hybrid/EV Battery Cell 1 Voltage
      Hybrid/EV Battery Cell 2 Voltage
      Hybrid/EV Battery Cell 3 Voltage
      Hybrid/EV Battery Cell 4 Voltage
      Hybrid/EV Battery Cell 5 Voltage
      Hybrid/EV Battery Cell 6 Voltage
      Hybrid/EV Battery Cell 7 Voltage
      Hybrid/EV Battery Cell 8 Voltage
      Hybrid/EV Battery Cell 9 Voltage
      Hybrid/EV Battery Cell 10 Voltage
      Hybrid/EV Battery Cell 11 Voltage
      Hybrid/EV Battery Cell 12 Voltage
      Hybrid/EV Battery Cell 13 Voltage
      Hybrid/EV Battery Cell 14 Voltage
      Hybrid/EV Battery Cell 15 Voltage
      Hybrid/EV Battery Cell 16 Voltage
      Hybrid/EV Battery Cell 17 Voltage
      Hybrid/EV Battery Cell 18 Voltage
      Hybrid/EV Battery Cell 19 Voltage
      Hybrid/EV Battery Cell 20 Voltage
      Hybrid/EV Battery Cell 21 Voltage
      Hybrid/EV Battery Cell 22 Voltage
      Hybrid/EV Battery Cell 23 Voltage
      Hybrid/EV Battery Cell 24 Voltage
      Hybrid/EV Battery Cell 25 Voltage
      Hybrid/EV Battery Cell 26 Voltage
      Hybrid/EV Battery Cell 27 Voltage
      Hybrid/EV Battery Cell 28 Voltage
      Hybrid/EV Battery Cell 29 Voltage
      Hybrid/EV Battery Cell 30 Voltage
      Hybrid/EV Battery Cell 31 Voltage
      Hybrid/EV Battery Cell 32 Voltage
      Hybrid/EV Battery Cell 33 Voltage
      Hybrid/EV Battery Cell 34 Voltage
      Hybrid/EV Battery Cell 35 Voltage
      Hybrid/EV Battery Cell 36 Voltage
      Hybrid/EV Battery Cell 37 Voltage
      Hybrid/EV Battery Cell 38 Voltage
      Hybrid/EV Battery Cell 39 Voltage
      Hybrid/EV Battery Cell 40 Voltage
      Hybrid/EV Battery Cell 41 Voltage
      Hybrid/EV Battery Cell 42 Voltage
      Hybrid/EV Battery Cell 43 Voltage
      Hybrid/EV Battery Cell 44 Voltage
      Hybrid/EV Battery Cell 45 Voltage
      Hybrid/EV Battery Cell 46 Voltage
      Hybrid/EV Battery Cell 47 Voltage
      Hybrid/EV Battery Cell 48 Voltage
      Hybrid/EV Battery Cell 49 Voltage
      Hybrid/EV Battery Cell 50 Voltage
      Hybrid/EV Battery Cell 51 Voltage
      Hybrid/EV Battery Cell 52 Voltage
      Hybrid/EV Battery Cell 53 Voltage
      Hybrid/EV Battery Cell 54 Voltage
      Hybrid/EV Battery Cell 55 Voltage
      Hybrid/EV Battery Cell 56 Voltage
      Hybrid/EV Battery Cell 57 Voltage
      Hybrid/EV Battery Cell 58 Voltage
      Hybrid/EV Battery Cell 59 Voltage
      Hybrid/EV Battery Cell 60 Voltage
      NOTE:

      Select "Hybrid/EV Battery Cell 1 to 60 Voltage" only. (Do not select any other Data List items.)

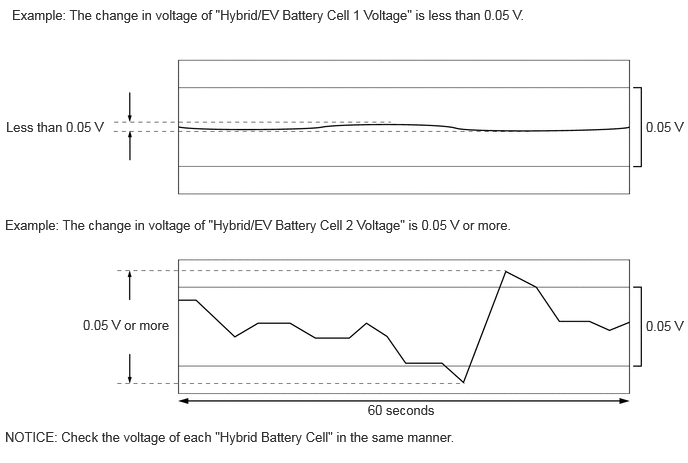

      GTY1010369Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Specified Condition

      Any "Hybrid/EV Battery Cell Voltage" changes by 0.05 V or more, 60 seconds after the ignition switch is turned to ON. (The difference between the maximum and minimum voltage is 0.05 V or more.)

      Result

      Result Proceed to
      The change in voltage of any "Hybrid/EV Battery Cell Voltage" is 0.05 V or more. A
      Other than above B
    3. Turn the ignition switch off.

    Result:

    A

    REPLACE BATTERY ECU ASSEMBLY

    Refer to REMOVAL [11/2022 - ]

    Result:

    B

    REPLACE HV BATTERY JUNCTION BLOCK ASSEMBLY

    Refer to REMOVAL [11/2022 - ]
