DTC P0ABF-28: Hybrid/EV Battery Current Sensor "A" Signal Bias Level Out of Range / Zero Adjustment Failure [11/2022 - ]: Procedure

WARNING: This page is about a different car, the 2025 Toyota Corolla Cross, 2024 Toyota Corolla Cross, and 2023 Toyota Corolla Cross. However, it is still accessible from the selected car via links, so may be relevant.
  1. CHECK DTC OUTPUT (HV BATTERY, HYBRID CONTROL)
    1. Check for DTCs.

      Powertrain > HV Battery > Trouble Codes

      Powertrain > Hybrid Control > Trouble Codes

      Result

      Result Proceed to
      "P0ABF-28" only is output, or DTCs except the ones in the table below are also output. A
      DTCs of hybrid battery system in the table below are output. B
      DTCs of hybrid control system in the table below are output. C
      System Relevant DTC
      Hybrid battery system P060A-47 Hybrid/EV Battery Energy Control Module Monitoring Processor Watchdog / Safety MCU Failure
      P060B-49 Hybrid/EV Battery Energy Control Module A/D Processing Internal Electronic Failure
      P0606-87 Hybrid/EV Battery Energy Control Module Processor to Monitoring Processor Missing Message
      P062F-46 Hybrid/EV Battery Energy Control Module EEPROM Calibration / Parameter Memory Failure
      Hybrid control system P0A1F-94 Hybrid/EV Battery Energy Control Module Unexpected Operation
    2. Turn the ignition switch off.

    Result:

    B

    GO TO DTC CHART (HYBRID BATTERY SYSTEM). Refer to  DIAGNOSTIC TROUBLE CODE CHART [11/2022 - ]

    Result:

    C

    GO TO DTC CHART (HYBRID CONTROL SYSTEM)

    Refer to DIAGNOSTIC TROUBLE CODE CHART [11/2022 - 12/2024] , or refer to DIAGNOSTIC TROUBLE CODE CHART [12/2024 - ]

    Result:

    A

    See step  2

  2. CHECK HARNESS AND CONNECTOR (BATTERY ECU ASSEMBLY - HV BATTERY JUNCTION BLOCK ASSEMBLY)
    WARNING:

    Be sure to wear insulated gloves and protective goggles.

    1. Check that the service plug grip is not installed.
      NOTE:

      After removing the service plug grip, do not turn the ignition switch to ON (READY), unless instructed by the appropriate servce information because this may cause a malfunction.

    2. Disconnect the battery ECU assembly connector.
      NOTE:

      Before disconnecting the connector, check that it is not loose or disconnected.

      GTY1106430Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Disconnect the battery current sensor connector from the HV battery junction block assembly.
      NOTE:

      Before disconnecting the connector, check that it is not loose or disconnected.

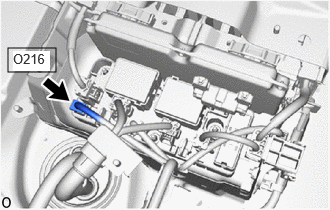

      GTY1109167Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    4. Measure the resistance according to the value(s) in the tables below.

      Standard Resistance (Check for Open)

      Tester Connection Condition Specified Condition
      O211-6 (IB1) - O216-2 (IB1) Ignition switch off Below 1 Ω
      O211-18 (GIB) - O216-3 (GIB) Ignition switch off Below 1 Ω
      O211-5 (IB0) - O216-4 (IB0) Ignition switch off Below 1 Ω
      O211-17 (VIB) - O216-1 (VIB) Ignition switch off Below 1 Ω

      Standard Resistance (Check for Short)

      Tester Connection Condition Specified Condition
      O211-6 (IB1) or O216-2 (IB1) - Body ground and other terminals Ignition switch off 10 kΩ or higher
      O211-18 (GIB) or O216-3 (GIB) - Body ground and other terminals Ignition switch off 10 kΩ or higher
      O211-5 (IB0) or O216-4 (IB0) - Body ground and other terminals Ignition switch off 10 kΩ or higher
      O211-17 (VIB) or O216-1 (VIB) - Body ground and other terminals Ignition switch off 10 kΩ or higher
    5. Reconnect the battery current sensor connector to the HV battery junction block assembly.
    6. Reconnect the battery ECU assembly connector.

      Result

      Proceed to
      OK
      NG

    Result:

    NG

    REPAIR OR REPLACE HARNESS OR CONNECTOR

    Result:

    OK

    See step  3

  3. CHECK HV BATTERY JUNCTION BLOCK ASSEMBLY (BATTERY CURRENT SENSOR (IB0))
    WARNING:

    Be sure to wear insulated gloves and protective goggles.

    1. Check that the service plug grip is not installed.
      NOTE:

      After removing the service plug grip, do not turn the ignition switch to ON (READY), unless instructed by the appropriate servce information because this may cause a malfunction.

    2. Connect the cable to the negative (-) auxiliary battery terminal.
    3. Turn the ignition switch to ON.
    4. Using a toyota electrical tester set to 40 V, measure the VIB voltage according to the value(s) in the table below.
      Tester Connection Tester Connection
      O216-1 (VIB) - O216-3 (GIB) Ignition switch ON
      NOTE:
      • Turning the ignition switch to ON with the service plug grip removed causes other DTCs to be stored. Clear the DTCs after performing this inspection.
      • Be sure to set the toyota electrical tester to 40 V when performing this test.

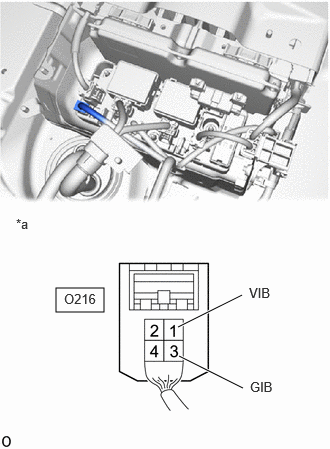

      GTY1105475Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Component with harness connected
      (HV Battery Junction Block Assembly (Battery Current Sensor))
    5. Using a toyota electrical tester set to 4 V, measure the IB0 voltage according to the value(s) in the table below.
      Tester Connection Tester Connection
      O216-4 (IB0) - O216-3 (GIB) Ignition switch ON
      NOTE:

      Be sure to set the toyota electrical tester to 4 V when performing this test.

      GTY1108831Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Component with harness connected
      (HV Battery Junction Block Assembly (Battery Current Sensor))
    6. Compare the measured values of the IB0 terminal voltage and VIB terminal voltage using the following formula:
      IB0 voltage - 0.584 X VIB Voltage = less than 0.060 V
      IB0 voltage - 0.584 X VIB Voltage = -0.060 V or higher

      Result

      Result Proceed to
      Within the specified range above A
      Other than above B
    7. Turn the ignition switch off.
    8. Disconnect the cable from the negative (-) auxiliary battery terminal.

    Result:

    B

    REPLACE HV BATTERY JUNCTION BLOCK ASSEMBLY

    Refer to REMOVAL [11/2022 - ]

    Result:

    A

    See step  4

  4. CHECK HV BATTERY JUNCTION BLOCK ASSEMBLY (BATTERY CURRENT SENSOR (IB1))
    WARNING:

    Be sure to wear insulated gloves.

    1. Check that the service plug grip is not installed.
      NOTE:

      After removing the service plug grip, do not turn the ignition switch to ON (READY), unless instructed by the appropriate servce information because this may cause a malfunction.

    2. Connect the cable to the negative (-) auxiliary battery terminal.
    3. Turn the ignition switch to ON.
    4. Using a toyota electrical tester set to 40 V, measure the VIB voltage according to the value(s) in the table below.
      Tester Connection Tester Connection
      O216-1 (VIB) - O216-3 (GIB) Ignition switch ON
      NOTE:
      • Turning the ignition switch to ON with the service plug grip removed causes other DTCs to be stored. Clear the DTCs after performing this inspection.
      • Be sure to set the toyota electrical tester to 40 V when performing this test.
      GTY1105475Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Component with harness connected
      (HV Battery Junction Block Assembly (Battery Current Sensor))
    5. Using a toyota electrical tester set to 4 V, measure the IB1 voltage according to the value(s) in the table below.
      Tester Connection Tester Connection
      O216-2 (IB1) - O216-3 (GIB) Ignition switch ON
      NOTE:

      Be sure to set the toyota electrical tester to 4 V when performing this test.

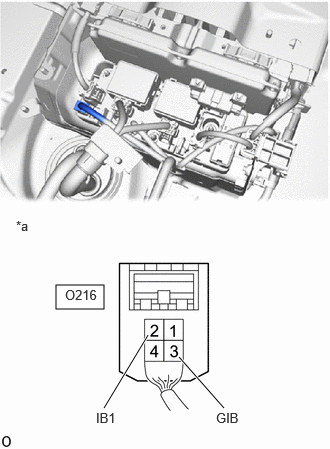

      GTY1105476Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Component with harness connected
      (HV Battery Junction Block Assembly (Battery Current Sensor))
    6. Compare the measured values of the IB1 terminal voltage and VIB terminal voltage using the following formula:
      Condition
      IB1 voltage - 0.416 X VIB Voltage = less than 0.060 V
      IB1 voltage - 0.416 X VIB Voltage = -0.060 V or higher

      Result

      Result Proceed to
      Within the specified range above. A
      Other than above B
    7. Turn the ignition switch off.
    8. Disconnect the cable from the negative (-) auxiliary battery terminal.

    Result:

    B

    REPLACE HV BATTERY JUNCTION BLOCK ASSEMBLY

    Refer to REMOVAL [11/2022 - ]

    Result:

    A

    See step  5

  5. REPLACE BATTERY ECU ASSEMBLY

    Refer to REMOVAL [11/2022 - ]

    Result

    Proceed to
    NEXT

    Result:

    NEXT

    See step  6

  6. SIMULATION TEST
    1. Clear the DTCs and freeze frame data.

      Powertrain > HV Battery > Clear DTCs

    2. Drive the vehicle on urban roads for approximately 10 minutes.
    3. Turn the ignition switch off and wait for 2 minutes or more.
    4. Turn the ignition switch to ON and wait for 10 seconds or more.

      Result

      Proceed to
      NEXT

    Result:

    NEXT

    See step  7

  7. CHECK DTC OUTPUT (HV BATTERY)
    1. Check for DTCs.

      Powertrain > HV Battery > Trouble Codes

      Result

      Result Proceed to
      DTCs are not output. A
      P0ABF-28 is also output. B
    2. Turn the ignition switch off.

    Result:

    A

    END

    Result:

    B

    REPLACE HV BATTERY JUNCTION BLOCK ASSEMBLY

    Refer to REMOVAL [11/2022 - ]
