System Diagram [11/2022 - 11/2023]

WARNING: This page is about a different car, the 2025 Toyota Corolla Cross, 2024 Toyota Corolla Cross, and 2023 Toyota Corolla Cross. However, it is still accessible from the selected car via links, so may be relevant.

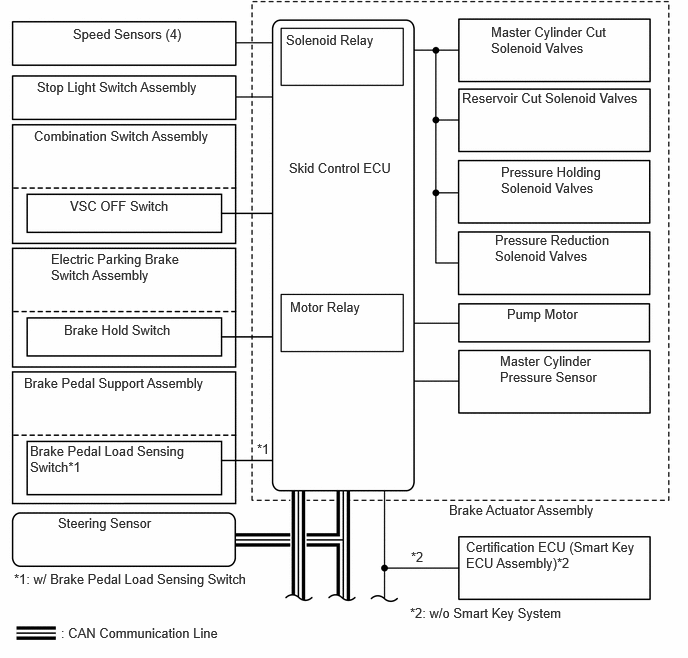

Fig 1: Electronically Controlled Brake System Diagram (For Gasoline Model) (1 of 2)
GTY1113318Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

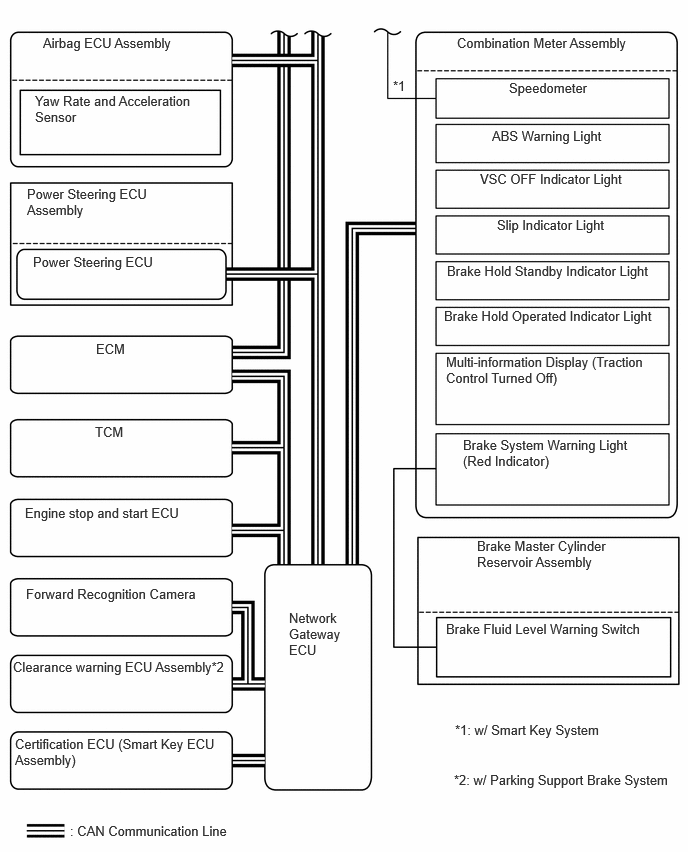

Fig 2: Electronically Controlled Brake System Diagram (For Gasoline Model) (2 of 2)
GTY1179032Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
