Parts Location [11/2022 - ]: Illustration
WARNING: This page is about a different car, the 2025 Toyota Corolla Cross, 2024 Toyota Corolla Cross, and 2023 Toyota Corolla Cross. However, it is still accessible from the selected car via links, so may be relevant.

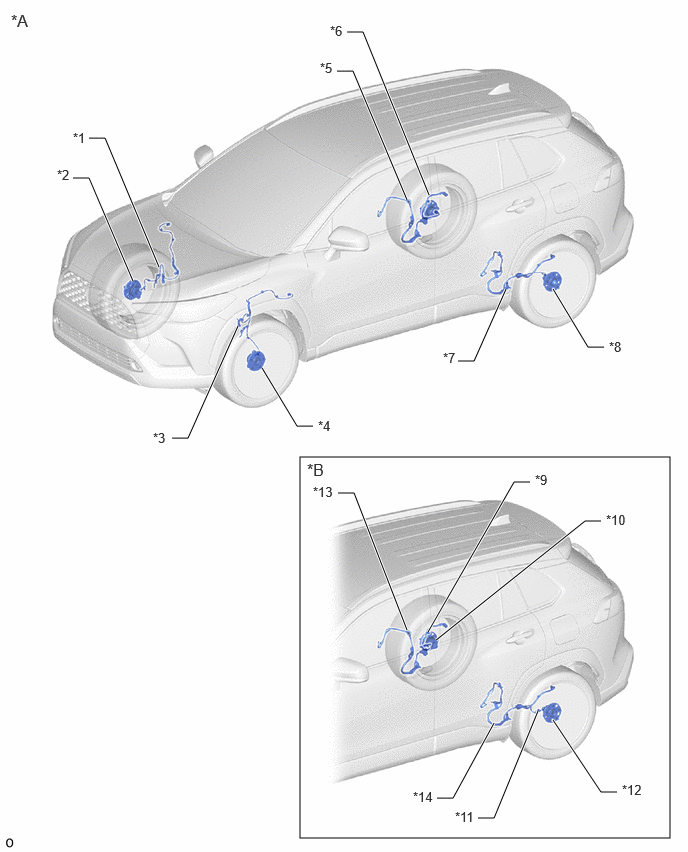

Fig 1: Electronically Controlled Brake System (For Gasoline Model) Replacement Components (1 Of 3) [11/2022 - ]
| *A | for 2WD | *B | for AWD |
| *1 | FRONT SPEED SENSOR RH | *2 | FRONT AXLE HUB SUB-ASSEMBLY RH - FRONT SPEED SENSOR ROTOR RH |
| *3 | FRONT SPEED SENSOR LH | *4 | FRONT AXLE HUB SUB-ASSEMBLY LH - FRONT SPEED SENSOR ROTOR LH |
| *5 | NO. 1 PARKING BRAKE WIRE ASSEMBLY - SKID CONTROL SENSOR WIRE RH |
*6 | REAR AXLE HUB AND BEARING ASSEMBLY RH - REAR SPEED SENSOR RH - REAR SPEED SENSOR ROTOR RH |
| *7 | NO. 2 PARKING BRAKE WIRE ASSEMBLY - SKID CONTROL SENSOR WIRE LH |
*8 | REAR AXLE HUB AND BEARING ASSEMBLY LH - REAR SPEED SENSOR LH - REAR SPEED SENSOR ROTOR LH |
| *9 | REAR SPEED SENSOR RH (REAR SKID CONTROL SENSOR RH) | *10 | REAR AXLE HUB AND BEARING ASSEMBLY RH - REAR SPEED SENSOR ROTOR RH |
| *11 | REAR SPEED SENSOR LH (REAR SKID CONTROL SENSOR LH) | *12 | REAR AXLE HUB AND BEARING ASSEMBLY LH - REAR SPEED SENSOR ROTOR LH |
| *13 | NO. 1 PARKING BRAKE WIRE ASSEMBLY - SKID CONTROL SENSOR WIRE RH |
*14 | NO. 2 PARKING BRAKE WIRE ASSEMBLY - SKID CONTROL SENSOR WIRE LH |

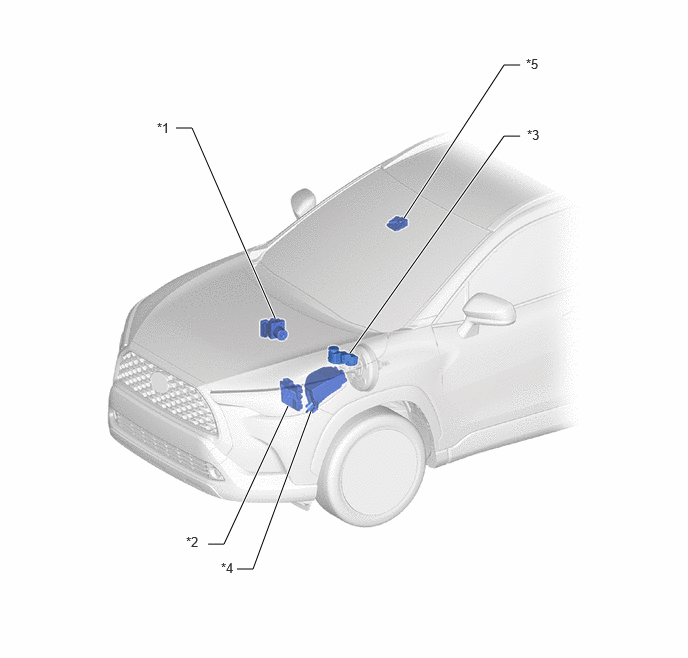

Fig 1: Electronically Controlled Brake System (For Gasoline Model) Replacement Components (2 Of 3) [11/2022 - ]
| *1 | BRAKE ACTUATOR ASSEMBLY -SKID CONTROL ECU |
*2 | ECM |
| *3 | BRAKE MASTER CYLINDER RESERVOIR ASSEMBLY - BRAKE FLUID LEVEL WARNING SWITCH |
*4 | NO. 1 ENGINE ROOM RELAY BLOCK - ABS MTR FUSE - ABS-MAIN FUSE |
| *5 | FORWARD RECOGNITION CAMERA | - | - |

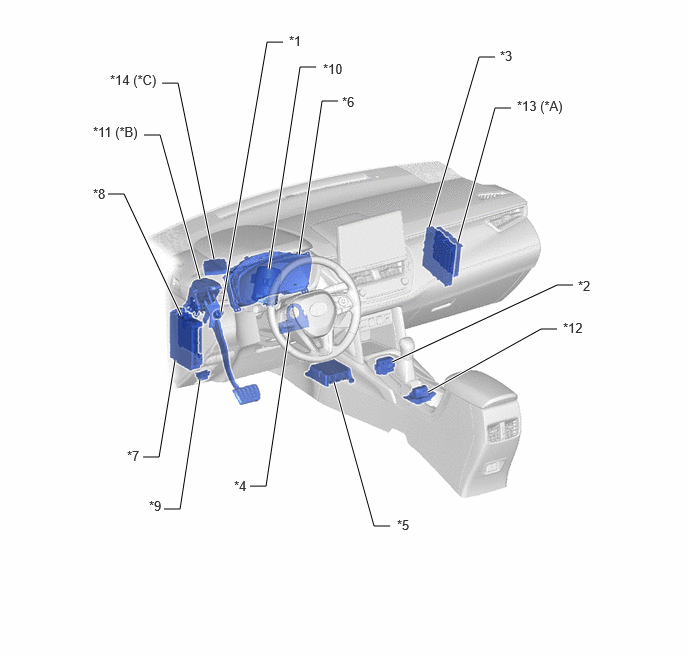

Fig 1: Electronically Controlled Brake System (For Gasoline Model) Replacement Components (3 Of 3) [11/2022 - ]
| *A | w/ Smart Key System | *B | w/ Brake Pedal Load Sensing Switch |
| *C | w/ Parking Support Brake System | - | - |
| *1 | STOP LIGHT SWITCH ASSEMBLY | *2 | COMBINATION SWITCH ASSEMBLY - VSC OFF SWITCH |
| *3 | ENGINE STOP AND START ECU | *4 | STEERING SENSOR |
| *5 | AIRBAG ECU ASSEMBLY - YAW RATE AND ACCELERATION SENSOR |
*6 | COMBINATION METER ASSEMBLY - ABS WARNING LIGHT - BRAKE SYSTEM WARNING LIGHT (RED INDICATOR) - SLIP INDICATOR LIGHT - VSC OFF INDICATOR LIGHT - BRAKE HOLD STANDBY INDICATOR LIGHT - BRAKE HOLD OPERATED INDICATOR LIGHT - MULTI-INFORMATION DISPLAY (TRACTION CONTROL TURNED OFF) |
| *7 | POWER DISTRIBUTION BOX ASSEMBLY - ECU-DCC NO. 1 FUSE - A/BAG-IGR FUSE - STOP FUSE |
*8 | MAIN BODY ECU (MULTIPLEX NETWORK BODY ECU) |
| *9 | DLC3 | *10 | POWER STEERING ECU ASSEMBLY |
| *11 | BRAKE PEDAL SUPPORT ASSEMBLY - BRAKE PEDAL LOAD SENSING SWITCH |
*12 | ELECTRIC PARKING BRAKE SWITCH ASSEMBLY - BRAKE HOLD SWITCH |
| *13 | CERTIFICATION ECU (SMART KEY ECU ASSEMBLY) | *14 | CLEARANCE WARNING ECU ASSEMBLY |
