Removal [11/2022 - ]: Procedure

WARNING: This page is about a different car, the 2025 Toyota Corolla Cross, 2024 Toyota Corolla Cross, and 2023 Toyota Corolla Cross. However, it is still accessible from the selected car via links, so may be relevant.

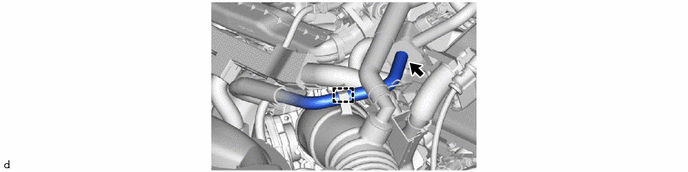

  1. DISCONNECT NO. 2 FUEL VAPOR FEED HOSE
    1. GTY1108502Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

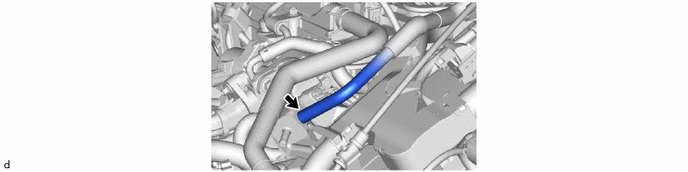

  2. DISCONNECT FUEL VAPOR FEED HOSE ASSEMBLY
    1. GTY1103872Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

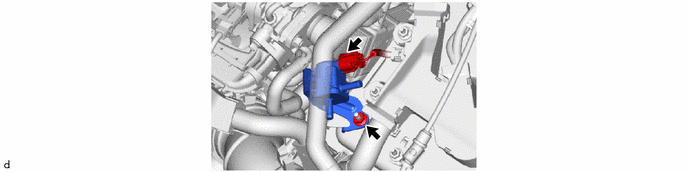

  3. REMOVE PURGE VALVE (PURGE VSV)
    1. GTY1103873Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
