Section 15 (Emission Control System (M20A-FXS) - Service Information)
>>
Purge Valve
>>
Removal [11/2022 - ]
>>
Caution / Notice / Hint
Caution / Notice / Hint
WARNING:
This page is about a different car, the 2025 Toyota Corolla Cross, 2024 Toyota Corolla Cross, and 2023 Toyota Corolla Cross. However, it is still accessible from the selected car via links, so may be relevant.
COMPONENTS (REMOVAL)

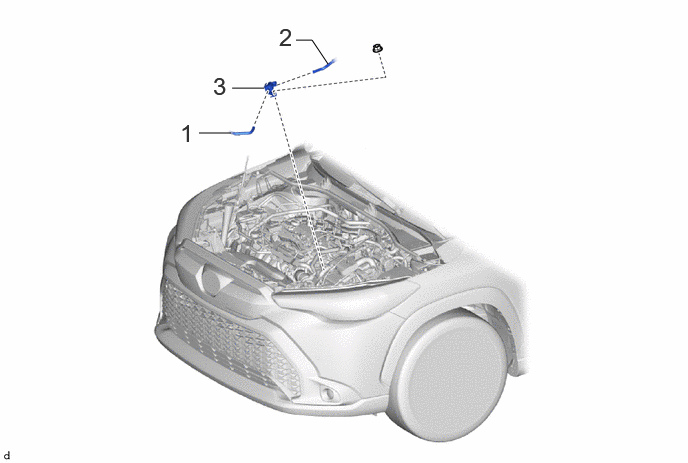

Fig 1: Purge Valve Removal Components
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Procedure
Part Name Code
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
1
NO. 2 FUEL VAPOR FEED HOSE
23827A
-
-
-
2
FUEL VAPOR FEED HOSE ASSEMBLY
23820
-
-
-
3
PURGE VALVE (PURGE VSV)
25860
-
-
-
