COMPONENTS (REMOVAL)

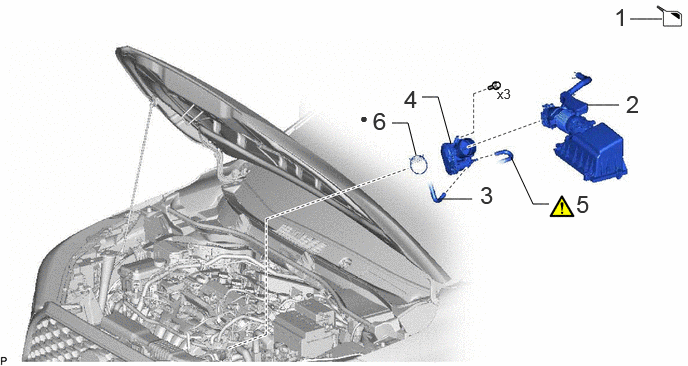

Fig 1: Throttle Body Removal Components

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Procedure		Part Name Code	Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
1	DRAIN ENGINE COOLANT	-	-	See step 1	-
2	AIR CLEANER CAP WITH AIR CLEANER HOSE	-	-	-	-
3	NO. 8 WATER BY-PASS HOSE	16296	-	-	-
4	THROTTLE BODY WITH MOTOR ASSEMBLY	22030	-	-	-
5	NO. 5 WATER BY-PASS HOSE	-	See step 5	-	-
6	THROTTLE BODY GASKET	22271	-	-	-

•

Non-reusable part

The necessary procedures (adjustment, calibration, initialization or registration) that must be performed after parts are removed and installed, or replaced during throttle body with motor assembly removal/installation are shown below.

NECESSARY PROCEDURES AFTER PARTS REMOVED/INSTALLED/REPLACED

Replaced Part or Performed Procedure	Necessary Procedure	Effect/Inoperative Function when Necessary Procedure not Performed	Link
Replacement of throttle body with motor assembly Cleaning the deposits from the throttle body with motor assembly	Inspection after repair	Poor idle, etc. Engine start function, etc.	Refer to INITIALIZATION [11/2022 - ]

NOTE:

This procedure includes the removal of small-head bolts. Refer to Small-Head Bolts of Basic Repair Hint to identify the small-head bolts.

Refer to PRECAUTION [11/2022 - ]
