Removal [11/2022 - ]: Procedure

WARNING: This page is about a different car, the 2025 Toyota Corolla Cross, 2024 Toyota Corolla Cross, and 2023 Toyota Corolla Cross. However, it is still accessible from the selected car via links, so may be relevant.
  1. REMOVE MASS AIR FLOW METER SUB-ASSEMBLY

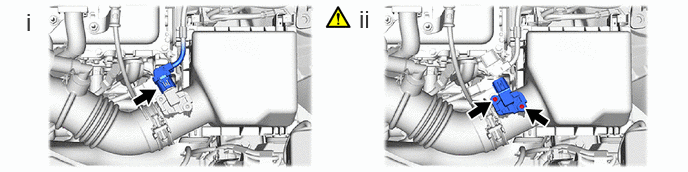

    1. GTY1104660Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Disconnect the mass air flow meter sub-assembly connector.
      2. Remove the 2 screws and mass air flow meter sub-assembly from the air cleaner cap sub-assembly.
        NOTE:

        If the mass air flow meter sub-assembly has been struck or dropped, replace it.
