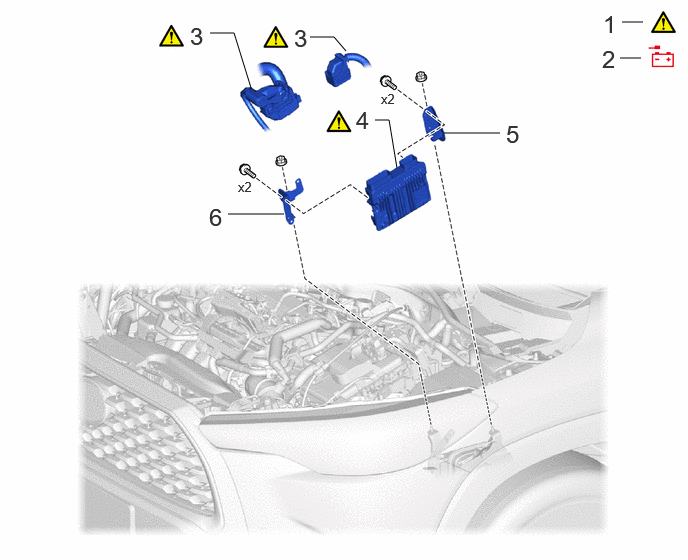

COMPONENTS (REMOVAL)
| Procedure | Part Name Code | ||||
|---|---|---|---|---|---|
| 1 | PRECAUTION | - | See step 1 | - | - |
| 2 | CABLE FROM NEGATIVE AUXILIARY BATTERY TERMINAL | - | - | - | - |
| 3 | ENGINE WIRE | 82121 | See step 3 | - | - |
| 4 | ECM | 89661 | See step 4 | - | - |
| 5 | NO. 2 ECM BRACKET | 89668 | - | - | - |
| 6 | NO. 1 ECM BRACKET | 89667E | - | - | - |
The necessary procedures (adjustment, calibration, initialization or registration) that must be performed after parts are removed and installed, or replaced during ECM removal/installation are shown below.
NECESSARY PROCEDURES AFTER PARTS REMOVED/INSTALLED/REPLACED
| Replaced Part or Performed Procedure | Necessary Procedure | Effect/Inoperative Function when Necessary Procedure not Performed | Link |
|---|---|---|---|
| Replacement of ECM | Update ECU security key | Vehicle Control History (RoB) are stored | Refer to UPDATE ECU SECURITY KEY [11/2022 - ] |
| Perform Vehicle Identification Number (VIN) or frame number registration | DTC is output | Refer to REGISTRATION [11/2022 - ] | |
| ECU configuration | - | Refer to ECU CONFIGURATION [11/2022 - ] |
NOTE:
If both left and right front flexible hoses are disconnected at the same time, be sure to place an identification mark on each hose to indicate its installation position.
HINT:
- When the cable is disconnected/reconnected to the auxiliary battery terminal, systems temporarily stop operating. However, each system has a function that completes learning the first time the system is used. (for HEV Model)
- Learning completes when vehicle is driven
Effect/Inoperative Function When Necessary Procedures are not Performed Necessary Procedures Link Front Camera System Drive the vehicle straight ahead at 15 km/h(10 mph) or more for 1 second or more. Refer to INITIALIZATION [11/2022 - ] - Learning completes when vehicle is operated normally
Effect/Inoperative Function When Necessary Procedures are not Performed Necessary Procedures Link Power door lock control system - Back door opener
Perform door unlock operation with door control switch or electrical key transmitter sub-assembly switch. Refer to INITIALIZATION [11/2022 - ] Power back door system Fully close the back door by hand.
HINT:
Initialization is not necessary if the above procedures are performed while the back door is closed.Refer to INITIALIZATION [09/2021 - ] Air conditioning system After the ignition switch is turned to ON, the servo motor standard position is recognized. -
- Learning completes when vehicle is driven
