On-Vehicle Inspection [11/2022 - ]: Procedure
WARNING: This page is about a different car, the 2025 Toyota Corolla Cross, 2024 Toyota Corolla Cross, and 2023 Toyota Corolla Cross. However, it is still accessible from the selected car via links, so may be relevant.
- REMOVE CAM TIMING OIL CONTROL SOLENOID ASSEMBLY
Refer to REMOVAL [11/2022 - ]
- INSPECT CAMSHAFT TIMING OIL CONTROL VALVE ASSEMBLY (EXHAUST CAMSHAFT TIMING GEAR BOLT ASSEMBLY)
- Check the stroke of the plunger in the center of the camshaft timing oil control valve assembly (exhaust camshaft timing gear bolt assembly).

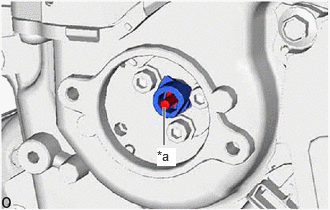

*a Plunger Standard Stroke
2.2 mm (0.0866 in.) or more
If the result is not as specified, replace the camshaft timing oil control valve assembly (exhaust camshaft timing gear bolt assembly).
- Check the stroke of the plunger in the center of the camshaft timing oil control valve assembly (exhaust camshaft timing gear bolt assembly).
- INSTALL CAM TIMING OIL CONTROL SOLENOID ASSEMBLY
Refer to INSTALLATION [11/2022 - ]
