Removal [11/2022 - ]: Procedure

WARNING: This page is about a different car, the 2025 Toyota Corolla Cross, 2024 Toyota Corolla Cross, and 2023 Toyota Corolla Cross. However, it is still accessible from the selected car via links, so may be relevant.

REMOVE CAM TIMING OIL CONTROL SOLENOID ASSEMBLY

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

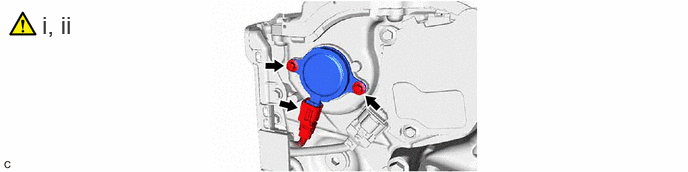

Disconnect the cam timing oil control solenoid assembly connector.
Using an 8 mm socket wrench, remove the 2 bolts and cam timing oil control solenoid assembly from the No. 2 timing chain cover assembly.
NOTE:
If the cam timing oil control solenoid assembly has been struck or dropped, replace it.

REMOVE O-RING

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

HINT:
Perform this procedure only when replacement of the O-ring is necessary.

Remove the O-ring from the cam timing oil control solenoid assembly.
NOTE:
- When removing the O-ring, be careful not to damage the O-ring groove of the cam timing oil control solenoid assembly.
- If the O-ring groove of the cam timing oil control solenoid assembly is damaged, replace the cam timing oil control solenoid assembly with a new one.
