Check Bus 4 Line [12/2024 - ]: Procedure

WARNING: This page is about a different car, the 2025 Toyota Corolla Cross, 2024 Toyota Corolla Cross, and 2023 Toyota Corolla Cross. However, it is still accessible from the selected car via links, so may be relevant.
  1. CHECK FOR OPEN IN CAN MAIN BUS LINES
    1. Disconnect the cable from the negative (-) auxiliary battery terminal.
    2. Measure the resistance according to the value(s) in the table below.

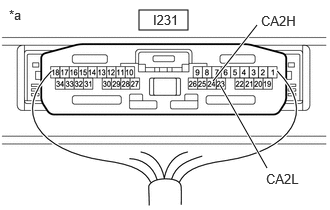

      GTY1117709Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Component with harness connected
      (Central Gateway ECU (Network Gateway ECU))

      Standard Resistance

      Tester Connection Condition Specified Condition
      I231-24 (CA2H) - I231-23 (CA2L) Cable disconnected from negative (-) auxiliary battery terminal Below 70 Ω

      Result

      Proceed to
      OK
      NG

    Result:

    NG

    See step  41

    Result:

    OK

    See step  2

  2. CHECK FOR SHORT IN CAN BUS LINES
    1. Measure the resistance according to the value(s) in the table below.
      GTY1117709Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Component with harness connected
      (Central Gateway ECU (Network Gateway ECU))

      Standard Resistance

      Tester Connection Condition Specified Condition
      I231-24 (CA2H) - I231-23 (CA2L) Cable disconnected from negative (-) auxiliary battery terminal 54 Ω or higher

      Result

      Proceed to
      OK
      NG

    Result:

    NG

    See step  29

    Result:

    OK

    See step  3

  3. CHECK FOR SHORT TO +B IN CAN BUS LINE
    1. Measure the resistance according to the value(s) in the table below.

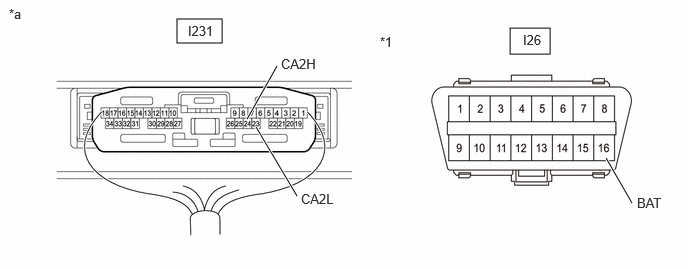

      GTY1118519Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 DLC3 - -
      *a Component with harness connected
      (Central Gateway ECU (Network Gateway ECU))      		 - -

      Standard Resistance

      Tester Connection Condition Specified Condition
      I231-24 (CA2H) - I26-16 (BAT) Cable disconnected from negative (-) auxiliary battery terminal 6 kΩ or higher
      I231-23 (CA2L) - I26-16 (BAT)

      Result

      Proceed to
      OK
      NG

    Result:

    NG

    See step  17

    Result:

    OK

    See step  4

  4. CHECK FOR SHORT TO GND IN CAN BUS LINE
    1. Measure the resistance according to the value(s) in the table below.

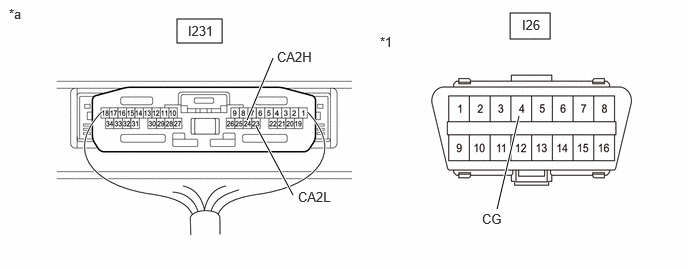

      GTY1113377Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 DLC3 - -
      *a Component with harness connected
      (Central Gateway ECU (Network Gateway ECU))      		 - -

      Standard Resistance

      Tester Connection Condition Specified Condition
      I231-24 (CA2H) - I26-4 (CG) Cable disconnected from negative (-) auxiliary battery terminal 200 Ω or higher
      I231-23 (CA2L) - I26-4 (CG)

      Result

      Proceed to
      OK
      NG

    Result:

    OK

    REPLACE CENTRAL GATEWAY ECU (NETWORK GATEWAY ECU)

    Refer to REMOVAL [11/2022 - ]

    Result:

    NG

    See step  5

  5. CHECK FOR SHORT TO GND IN CAN BUS LINE (NO. 9 GLOBAL CAN JUNCTION CONNECTOR - CENTRAL GATEWAY ECU (NETWORK GATEWAY ECU))
    1. Disconnect the No. 9 global CAN junction connector.
    2. Measure the resistance according to the value(s) in the table below.
      GTY1117818Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 DLC3 - -
      *a Front view of wire harness connector
      (to No. 9 Global CAN Junction Connector)      		 *b to Central Gateway ECU (Network Gateway ECU)

      Standard Resistance

      Tester Connection Condition Specified Condition
      A193-9 (CANH) - I26-4 (CG) Cable disconnected from negative (-) auxiliary battery terminal 200 Ω or higher
      A193-20 (CANL) - I26-4 (CG)

      Result

      Proceed to
      OK
      NG

    Result:

    NG

    See step  8

    Result:

    OK

    See step  6

  6. CHECK FOR SHORT TO GND IN CAN BUS LINE (NO. 9 GLOBAL CAN JUNCTION CONNECTOR - NO. 11 GLOBAL CAN JUNCTION CONNECTOR)
    1. Measure the resistance according to the value(s) in the table below.
      GTY1117817Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 DLC3 - -
      *a Front view of wire harness connector
      (to No. 9 Global CAN Junction Connector)      		 *b to No. 11 Global CAN Junction Connector

      Standard Resistance

      Tester Connection Condition Specified Condition
      A193-11 (CANH) - I26-4 (CG) Cable disconnected from negative (-) auxiliary battery terminal 200 Ω or higher
      A193-22 (CANL) - I26-4 (CG)

      Result

      Proceed to
      OK
      NG

    Result:

    NG

    See step  10

    Result:

    OK

    See step  7

  7. CHECK FOR SHORT TO GND IN CAN BUS LINE (NO. 9 GLOBAL CAN JUNCTION CONNECTOR - BRAKE ACTUATOR ASSEMBLY)
    1. Measure the resistance according to the value(s) in the table below.
      GTY1117816Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 DLC3 - -
      *a Front view of wire harness connector
      (to No. 9 Global CAN Junction Connector)      		 *b to Brake Actuator Assembly

      Standard Resistance

      Tester Connection Condition Specified Condition
      A193-10 (CANH) - I26-4 (CG) Cable disconnected from negative (-) auxiliary battery terminal 200 Ω or higher
      A193-21 (CANL) - I26-4 (CG)

      Result

      Proceed to
      OK
      NG

    Result:

    OK

    REPLACE NO. 9 GLOBAL CAN JUNCTION CONNECTOR

    Result:

    NG

    See step  9

  8. CHECK FOR SHORT TO GND IN CAN BUS LINE (NO. 9 GLOBAL CAN JUNCTION CONNECTOR - CENTRAL GATEWAY ECU (NETWORK GATEWAY ECU))
    1. Disconnect the I231 central gateway ECU (network gateway ECU) connector.
    2. Measure the resistance according to the value(s) in the table below.
      GTY1117818Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 DLC3 - -
      *a Front view of wire harness connector
      (to No. 9 Global CAN Junction Connector)      		 *b to Central Gateway ECU (Network Gateway ECU)

      Standard Resistance

      Tester Connection Condition Specified Condition
      A193-9 (CANH) - I26-4 (CG) Cable disconnected from negative (-) auxiliary battery terminal 200 Ω or higher
      A193-20 (CANL) - I26-4 (CG)

      Result

      Proceed to
      OK
      NG

    Result:

    OK

    REPLACE CENTRAL GATEWAY ECU (NETWORK GATEWAY ECU)

    Refer to REMOVAL [11/2022 - ]

    Result:

    NG

    REPAIR OR REPLACE CAN MAIN BUS LINE OR CONNECTOR (NO. 9 GLOBAL CAN JUNCTION CONNECTOR - CENTRAL GATEWAY ECU (NETWORK GATEWAY ECU))

  9. CHECK FOR SHORT TO GND IN CAN BUS LINE (NO. 9 GLOBAL CAN JUNCTION CONNECTOR - BRAKE ACTUATOR ASSEMBLY)
    1. Disconnect the A151 brake actuator assembly connector.
    2. Measure the resistance according to the value(s) in the table below.
      GTY1117816Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 DLC3 - -
      *a Front view of wire harness connector
      (to No. 9 Global CAN Junction Connector)      		 *b to Brake Actuator Assembly

      Standard Resistance

      Tester Connection Condition Specified Condition
      A193-10 (CANH) - I26-4 (CG) Cable disconnected from negative (-) auxiliary battery terminal 200 Ω or higher
      A193-21 (CANL) - I26-4 (CG)

      Result

      Proceed to
      OK
      NG

    Result:

    OK

    REPLACE BRAKE ACTUATOR ASSEMBLY

    Refer to REMOVAL [11/2022 - ]

    Result:

    NG

    REPAIR OR REPLACE CAN BRANCH LINE OR CONNECTOR (NO. 9 GLOBAL CAN JUNCTION CONNECTOR - BRAKE ACTUATOR ASSEMBLY)

  10. CHECK FOR SHORT TO GND IN CAN BUS LINE (NO. 11 GLOBAL CAN JUNCTION CONNECTOR - NO. 9 GLOBAL CAN JUNCTION CONNECTOR)
    1. Disconnect the No. 11 global CAN junction connector.
    2. Measure the resistance according to the value(s) in the table below.
      GTY1111857Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 DLC3 - -
      *a Front view of wire harness connector
      (to No. 11 Global CAN Junction Connector)      		 *b to No. 9 Global CAN Junction Connector

      Standard Resistance

      Tester Connection Condition Specified Condition
      I264-3 (CANH) - I26-4 (CG) Cable disconnected from negative (-) auxiliary battery terminal 200 Ω or higher
      I264-10 (CANL) - I26-4 (CG)

      Result

      Proceed to
      OK
      NG

    Result:

    NG

    REPAIR OR REPLACE CAN MAIN BUS LINE OR CONNECTOR (NO. 11 GLOBAL CAN JUNCTION CONNECTOR - NO. 9 GLOBAL CAN JUNCTION CONNECTOR)

    Result:

    OK

    See step  11

  11. CHECK FOR SHORT TO GND IN CAN BUS LINE (NO. 11 GLOBAL CAN JUNCTION CONNECTOR - STEERING SENSOR)
    1. Measure the resistance according to the value(s) in the table below.
      GTY1111858Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 DLC3 - -
      *a Front view of wire harness connector
      (to No. 11 Global CAN Junction Connector)      		 *b to Steering Sensor

      Standard Resistance

      Tester Connection Condition Specified Condition
      I264-5 (CANH) - I26-4 (CG) Cable disconnected from negative (-) auxiliary battery terminal 200 Ω or higher
      I264-12 (CANL) - I26-4 (CG)

      Result

      Proceed to
      OK
      NG

    Result:

    NG

    See step  14

    Result:

    OK

    See step  12

  12. CHECK FOR SHORT TO GND IN CAN BUS LINE (NO. 11 GLOBAL CAN JUNCTION CONNECTOR - AIRBAG ECU ASSEMBLY)
    1. Measure the resistance according to the value(s) in the table below.
      GTY1111859Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 DLC3 - -
      *a Front view of wire harness connector
      (to No. 11 Global CAN Junction Connector)      		 *b to Airbag ECU Assembly

      Standard Resistance

      Tester Connection Condition Specified Condition
      I264-1 (CANH) - I26-4 (CG) Cable disconnected from negative (-) auxiliary battery terminal 200 Ω or higher
      I264-8 (CANL) - I26-4 (CG)

      Result

      Proceed to
      OK
      NG

    Result:

    NG

    See step  15

    Result:

    OK

    See step  13

  13. CHECK FOR SHORT TO GND IN CAN BUS LINE (NO. 11 GLOBAL CAN JUNCTION CONNECTOR - POWER STEERING ECU ASSEMBLY)
    1. Measure the resistance according to the value(s) in the table below.
      GTY1111860Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 DLC3 - -
      *a Front view of wire harness connector
      (to No. 11 Global CAN Junction Connector)      		 *b to Power Steering ECU Assembly

      Standard Resistance

      Tester Connection Condition Specified Condition
      I264-7 (CANH) - I26-4 (CG) Cable disconnected from negative (-) auxiliary battery terminal 200 Ω or higher
      I264-14 (CANL) - I26-4 (CG)

      Result

      Proceed to
      OK
      NG

    Result:

    OK

    REPLACE NO. 11 GLOBAL CAN JUNCTION CONNECTOR

    Result:

    NG

    See step  16

  14. CHECK FOR SHORT TO GND IN CAN BUS LINE (NO. 11 GLOBAL CAN JUNCTION CONNECTOR - STEERING SENSOR)
    1. Disconnect the I229 steering sensor connector.
    2. Measure the resistance according to the value(s) in the table below.
      GTY1111858Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 DLC3 - -
      *a Front view of wire harness connector
      (to No. 11 Global CAN Junction Connector)      		 *b to Steering Sensor

      Standard Resistance

      Tester Connection Condition Specified Condition
      I264-5 (CANH) - I26-4 (CG) Cable disconnected from negative (-) auxiliary battery terminal 200 Ω or higher
      I264-12 (CANL) - I26-4 (CG)

      Result

      Proceed to
      OK
      NG

    Result:

    OK

    REPLACE STEERING SENSOR

    Refer to REMOVAL [11/2022 - ]

    Result:

    NG

    REPAIR OR REPLACE CAN BRANCH LINE OR CONNECTOR (NO. 11 GLOBAL CAN JUNCTION CONNECTOR - STEERING SENSOR)

  15. CHECK FOR SHORT TO GND IN CAN BUS LINE (NO. 11 GLOBAL CAN JUNCTION CONNECTOR - AIRBAG ECU ASSEMBLY)
    1. Disconnect the I292 airbag ECU assembly connector.
    2. Measure the resistance according to the value(s) in the table below.
      GTY1111859Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 DLC3 - -
      *a Front view of wire harness connector
      (to No. 11 Global CAN Junction Connector)      		 *b to Airbag ECU Assembly

      Standard Resistance

      Tester Connection Condition Specified Condition
      I264-1 (CANH) - I26-4 (CG) Cable disconnected from negative (-) auxiliary battery terminal 200 Ω or higher
      I264-8 (CANL) - I26-4 (CG)

      Result

      Proceed to
      OK
      NG

    Result:

    OK

    REPLACE AIRBAG ECU ASSEMBLY

    Refer to REMOVAL [11/2022 - ]

    Result:

    NG

    REPAIR OR REPLACE CAN BRANCH LINE OR CONNECTOR (NO. 11 GLOBAL CAN JUNCTION CONNECTOR - AIRBAG ECU ASSEMBLY)

  16. CHECK FOR SHORT TO GND IN CAN BUS LINE (NO. 11 GLOBAL CAN JUNCTION CONNECTOR - POWER STEERING ECU ASSEMBLY)
    1. Disconnect the I21 power steering ECU assembly connector.
    2. Measure the resistance according to the value(s) in the table below.
      GTY1111860Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 DLC3 - -
      *a Front view of wire harness connector
      (to No. 11 Global CAN Junction Connector)      		 *b to Power Steering ECU Assembly

      Standard Resistance

      Tester Connection Condition Specified Condition
      I264-7 (CANH) - I26-4 (CG) Cable disconnected from negative (-) auxiliary battery terminal 200 Ω or higher
      I264-14 (CANL) - I26-4 (CG)

      Result

      Proceed to
      OK
      NG

    Result:

    OK

    REPLACE POWER STEERING ECU ASSEMBLY

    Refer to REMOVAL [11/2022 - ]

    Result:

    NG

    REPAIR OR REPLACE CAN MAIN BUS LINE OR CONNECTOR (NO. 11 GLOBAL CAN JUNCTION CONNECTOR - POWER STEERING ECU ASSEMBLY)

  17. CHECK FOR SHORT TO +B IN CAN BUS LINE (NO. 9 GLOBAL CAN JUNCTION CONNECTOR - CENTRAL GATEWAY ECU (NETWORK GATEWAY ECU))
    1. Disconnect the No. 9 global CAN junction connector.
    2. Measure the resistance according to the value(s) in the table below.
      GTY1119256Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 DLC3 - -
      *a Front view of wire harness connector
      (to No. 9 Global CAN Junction Connector)      		 *b to Central Gateway ECU (Network Gateway ECU)

      Standard Resistance

      Tester Connection Condition Specified Condition
      A193-9 (CANH) - I26-16 (BAT) Cable disconnected from negative (-) auxiliary battery terminal 6 kΩ or higher
      A193-20 (CANL) - I26-16 (BAT)

      Result

      Proceed to
      OK
      NG

    Result:

    NG

    See step  20

    Result:

    OK

    See step  18

  18. CHECK FOR SHORT TO +B IN CAN BUS LINE (NO. 9 GLOBAL CAN JUNCTION CONNECTOR - NO. 11 GLOBAL CAN JUNCTION CONNECTOR)
    1. Measure the resistance according to the value(s) in the table below.
      GTY1116927Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 DLC3 - -
      *a Front view of wire harness connector
      (to No. 9 Global CAN Junction Connector)      		 *b to No. 11 Global CAN Junction Connector

      Standard Resistance

      Tester Connection Condition Specified Condition
      A193-11 (CANH) - I26-16 (BAT) Cable disconnected from negative (-) auxiliary battery terminal 6 kΩ or higher
      A193-22 (CANL) - I26-16 (BAT)

      Result

      Proceed to
      OK
      NG

    Result:

    NG

    See step  22

    Result:

    OK

    See step  19

  19. CHECK FOR SHORT TO +B IN CAN BUS LINE (NO. 9 GLOBAL CAN JUNCTION CONNECTOR - BRAKE ACTUATOR ASSEMBLY)
    1. Measure the resistance according to the value(s) in the table below.
      GTY1116926Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 DLC3 - -
      *a Front view of wire harness connector
      (to No. 9 Global CAN Junction Connector)      		 *b to Brake Actuator Assembly

      Standard Resistance

      Tester Connection Condition Specified Condition
      A193-10 (CANH) - I26-16 (BAT) Cable disconnected from negative (-) auxiliary battery terminal 6 kΩ or higher
      A193-21 (CANL) - I26-16 (BAT)

      Result

      Proceed to
      OK
      NG

    Result:

    OK

    REPLACE NO. 9 GLOBAL CAN JUNCTION CONNECTOR

    Result:

    NG

    See step  21

  20. CHECK FOR SHORT TO +B IN CAN BUS LINE (NO. 9 GLOBAL CAN JUNCTION CONNECTOR - CENTRAL GATEWAY ECU (NETWORK GATEWAY ECU))
    1. Disconnect the I231 central gateway ECU (network gateway ECU) connector.
    2. Measure the resistance according to the value(s) in the table below.
      GTY1119256Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 DLC3 - -
      *a Front view of wire harness connector
      (to No. 9 Global CAN Junction Connector)      		 *b to Central Gateway ECU (Network Gateway ECU)

      Standard Resistance

      Tester Connection Condition Specified Condition
      A193-9 (CANH) - I26-16 (BAT) Cable disconnected from negative (-) auxiliary battery terminal 6 kΩ or higher
      A193-20 (CANL) - I26-16 (BAT)

      Result

      Proceed to
      OK
      NG

    Result:

    OK

    REPLACE CENTRAL GATEWAY ECU (NETWORK GATEWAY ECU)

    Refer to REMOVAL [11/2022 - ]

    Result:

    NG

    REPAIR OR REPLACE CAN MAIN BUS LINE OR CONNECTOR (NO. 9 GLOBAL CAN JUNCTION CONNECTOR - CENTRAL GATEWAY ECU (NETWORK GATEWAY ECU))

  21. CHECK FOR SHORT TO +B IN CAN BUS LINE (NO. 9 GLOBAL CAN JUNCTION CONNECTOR - BRAKE ACTUATOR ASSEMBLY)
    1. Disconnect the A151 brake actuator assembly connector.
    2. Measure the resistance according to the value(s) in the table below.
      GTY1116926Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 DLC3 - -
      *a Front view of wire harness connector
      (to No. 9 Global CAN Junction Connector)      		 *b to Brake Actuator Assembly

      Standard Resistance

      Tester Connection Condition Specified Condition
      A193-10 (CANH) - I26-16 (BAT) Cable disconnected from negative (-) auxiliary battery terminal 6 kΩ or higher
      A193-21 (CANL) - I26-16 (BAT)

      Result

      Proceed to
      OK
      NG

    Result:

    OK

    REPLACE BRAKE ACTUATOR ASSEMBLY

    Refer to REMOVAL [11/2022 - ]

    Result:

    NG

    REPAIR OR REPLACE CAN BRANCH LINE OR CONNECTOR (NO. 9 GLOBAL CAN JUNCTION CONNECTOR - BRAKE ACTUATOR ASSEMBLY)

  22. CHECK FOR SHORT TO +B IN CAN BUS LINE (NO. 11 GLOBAL CAN JUNCTION CONNECTOR - NO. 9 GLOBAL CAN JUNCTION CONNECTOR)
    1. Disconnect the No. 11 global CAN junction connector.
    2. Measure the resistance according to the value(s) in the table below.
      GTY1111856Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 DLC3 - -
      *a Front view of wire harness connector
      (to No. 11 Global CAN Junction Connector)      		 *b to No. 9 Global CAN Junction Connector

      Standard Resistance

      Tester Connection Condition Specified Condition
      I264-3 (CANH) - I26-16 (BAT) Cable disconnected from negative (-) auxiliary battery terminal 6 kΩ or higher
      I264-10 (CANL) - I26-16 (BAT)

      Result

      Proceed to
      OK
      NG

    Result:

    NG

    REPAIR OR REPLACE CAN MAIN BUS LINE OR CONNECTOR (NO. 11 GLOBAL CAN JUNCTION CONNECTOR - NO. 9 GLOBAL CAN JUNCTION CONNECTOR)

    Result:

    OK

    See step  23

  23. CHECK FOR SHORT TO +B IN CAN BUS LINE (NO. 11 GLOBAL CAN JUNCTION CONNECTOR - STEERING SENSOR)
    1. Measure the resistance according to the value(s) in the table below.
      GTY1111864Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 DLC3 - -
      *a Front view of wire harness connector
      (to No. 11 Global CAN Junction Connector)      		 *b to Steering Sensor

      Standard Resistance

      Tester Connection Condition Specified Condition
      I264-5 (CANH) - I26-16 (BAT) Cable disconnected from negative (-) auxiliary battery terminal 6 kΩ or higher
      I264-12 (CANL) - I26-16 (BAT)

      Result

      Proceed to
      OK
      NG

    Result:

    NG

    See step  26

    Result:

    OK

    See step  24

  24. CHECK FOR SHORT TO +B IN CAN BUS LINE (NO. 11 GLOBAL CAN JUNCTION CONNECTOR - AIRBAG ECU ASSEMBLY)
    1. Measure the resistance according to the value(s) in the table below.
      GTY1111865Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 DLC3 - -
      *a Front view of wire harness connector
      (to No. 11 Global CAN Junction Connector)      		 *b to Airbag ECU Assembly

      Standard Resistance

      Tester Connection Condition Specified Condition
      I264-1 (CANH) - I26-16 (BAT) Cable disconnected from negative (-) auxiliary battery terminal 6 kΩ or higher
      I264-8 (CANL) - I26-16 (BAT)

      Result

      Proceed to
      OK
      NG

    Result:

    NG

    See step  27

    Result:

    OK

    See step  25

  25. CHECK FOR SHORT TO +B IN CAN BUS LINE (NO. 11 GLOBAL CAN JUNCTION CONNECTOR - POWER STEERING ECU ASSEMBLY)
    1. Measure the resistance according to the value(s) in the table below.
      GTY1118203Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 DLC3 - -
      *a Front view of wire harness connector
      (to No. 11 Global CAN Junction Connector)      		 *b to Power Steering ECU Assembly

      Standard Resistance

      Tester Connection Condition Specified Condition
      I264-7 (CANH) - I26-16 (BAT) Cable disconnected from negative (-) auxiliary battery terminal 6 kΩ or higher
      I264-14 (CANL) - I26-16 (BAT)

      Result

      Proceed to
      OK
      NG

    Result:

    OK

    REPLACE NO. 11 GLOBAL CAN JUNCTION CONNECTOR

    Result:

    NG

    See step  28

  26. CHECK FOR SHORT TO +B IN CAN BUS LINE (NO. 11 GLOBAL CAN JUNCTION CONNECTOR - STEERING SENSOR)
    1. Disconnect the I229 steering sensor connector.
    2. Measure the resistance according to the value(s) in the table below.
      GTY1111864Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 DLC3 - -
      *a Front view of wire harness connector
      (to No. 11 Global CAN Junction Connector)      		 *b to Steering Sensor

      Standard Resistance

      Tester Connection Condition Specified Condition
      I264-5 (CANH) - I26-16 (BAT) Cable disconnected from negative (-) auxiliary battery terminal 6 kΩ or higher
      I264-12 (CANL) - I26-16 (BAT)

      Result

      Proceed to
      OK
      NG

    Result:

    OK

    REPLACE STEERING SENSOR

    Refer to REMOVAL [11/2022 - ]

    Result:

    NG

    REPAIR OR REPLACE CAN BRANCH LINE OR CONNECTOR (NO. 11 GLOBAL CAN JUNCTION CONNECTOR - STEERING SENSOR)

  27. CHECK FOR SHORT TO +B IN CAN BUS LINE (NO. 11 GLOBAL CAN JUNCTION CONNECTOR - AIRBAG ECU ASSEMBLY)
    1. Disconnect the I292 airbag ECU assembly connector.
    2. Measure the resistance according to the value(s) in the table below.
      GTY1111865Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 DLC3 - -
      *a Front view of wire harness connector
      (to No. 11 Global CAN Junction Connector)      		 *b to Airbag ECU Assembly

      Standard Resistance

      Tester Connection Condition Specified Condition
      I264-1 (CANH) - I26-16 (BAT) Cable disconnected from negative (-) auxiliary battery terminal 6 kΩ or higher
      I264-8 (CANL) - I26-16 (BAT)

      Result

      Proceed to
      OK
      NG

    Result:

    OK

    REPLACE AIRBAG ECU ASSEMBLY

    Refer to REMOVAL [11/2022 - ]

    Result:

    NG

    REPAIR OR REPLACE CAN BRANCH LINE OR CONNECTOR (NO. 11 GLOBAL CAN JUNCTION CONNECTOR - AIRBAG ECU ASSEMBLY)

  28. CHECK FOR SHORT TO +B IN CAN BUS LINE (NO. 11 GLOBAL CAN JUNCTION CONNECTOR - POWER STEERING ECU ASSEMBLY)
    1. Disconnect the I21 power steering ECU assembly connector.
    2. Measure the resistance according to the value(s) in the table below.
      GTY1118203Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 DLC3 - -
      *a Front view of wire harness connector
      (to No. 11 Global CAN Junction Connector)      		 *b to Power Steering ECU Assembly

      Standard Resistance

      Tester Connection Condition Specified Condition
      I264-7 (CANH) - I26-16 (BAT) Cable disconnected from negative (-) auxiliary battery terminal 6 kΩ or higher
      I264-14 (CANL) - I26-16 (BAT)

      Result

      Proceed to
      OK
      NG

    Result:

    OK

    REPLACE POWER STEERING ECU ASSEMBLY

    Refer to REMOVAL [11/2022 - ]

    Result:

    NG

    REPAIR OR REPLACE CAN MAIN BUS LINE OR CONNECTOR (NO. 11 GLOBAL CAN JUNCTION CONNECTOR - POWER STEERING ECU ASSEMBLY)

  29. CHECK FOR SHORT IN CAN BUS LINES (NO. 9 GLOBAL CAN JUNCTION CONNECTOR - CENTRAL GATEWAY ECU (NETWORK GATEWAY ECU))
    1. Disconnect the No. 9 global CAN junction connector.
    2. Measure the resistance according to the value(s) in the table below.
      GTY1117125Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Front view of wire harness connector
      (to No. 9 Global CAN Junction Connector)      		 *b to Central Gateway ECU (Network Gateway ECU)

      Standard Resistance

      Tester Connection Condition Specified Condition
      A193-9 (CANH) - A193-20 (CANL) Cable disconnected from negative (-) auxiliary battery terminal 108 to 132 Ω

      Result

      Proceed to
      OK
      NG

    Result:

    NG

    See step  32

    Result:

    OK

    See step  30

  30. CHECK FOR SHORT IN CAN BUS LINES (NO. 9 GLOBAL CAN JUNCTION CONNECTOR - NO. 11 GLOBAL CAN JUNCTION CONNECTOR)
    1. Measure the resistance according to the value(s) in the table below.
      GTY1117124Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Front view of wire harness connector
      (to No. 9 Global CAN Junction Connector)      		 *b to No. 11 Global CAN Junction Connector

      Standard Resistance

      Tester Connection Condition Specified Condition
      A193-11 (CANH) - A193-22 (CANL) Cable disconnected from negative (-) auxiliary battery terminal 108 to 132 Ω

      Result

      Proceed to
      OK
      NG

    Result:

    NG

    See step  34

    Result:

    OK

    See step  31

  31. CHECK FOR SHORT IN CAN BUS LINES (NO. 9 GLOBAL CAN JUNCTION CONNECTOR - BRAKE ACTUATOR ASSEMBLY)
    1. Measure the resistance according to the value(s) in the table below.
      GTY1117126Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Front view of wire harness connector
      (to No. 9 Global CAN Junction Connector)      		 *b to Brake Actuator Assembly

      Standard Resistance

      Tester Connection Condition Specified Condition
      A193-10 (CANH) - A193-21 (CANL) Cable disconnected from negative (-) auxiliary battery terminal 200 Ω or higher

      Result

      Proceed to
      OK
      NG

    Result:

    OK

    REPLACE NO. 9 GLOBAL CAN JUNCTION CONNECTOR

    Result:

    NG

    See step  33

  32. CHECK FOR SHORT IN CAN BUS LINES (NO. 9 GLOBAL CAN JUNCTION CONNECTOR - CENTRAL GATEWAY ECU (NETWORK GATEWAY ECU))
    1. Disconnect the I231 central gateway ECU (network gateway ECU) connector.
    2. Measure the resistance according to the value(s) in the table below.
      GTY1117125Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Front view of wire harness connector
      (to No. 9 Global CAN Junction Connector)      		 *b to Central Gateway ECU (Network Gateway ECU)

      Standard Resistance

      Tester Connection Condition Specified Condition
      A193-9 (CANH) - A193-20 (CANL) Cable disconnected from negative (-) auxiliary battery terminal 1 MΩ or higher

      Result

      Proceed to
      OK
      NG

    Result:

    OK

    REPLACE CENTRAL GATEWAY ECU (NETWORK GATEWAY ECU)

    Refer to REMOVAL [11/2022 - ]

    Result:

    NG

    REPAIR OR REPLACE CAN MAIN BUS LINES OR CONNECTOR (NO. 9 GLOBAL CAN JUNCTION CONNECTOR - CENTRAL GATEWAY ECU (NETWORK GATEWAY ECU))

  33. CHECK FOR SHORT IN CAN BUS LINES (NO. 9 GLOBAL CAN JUNCTION CONNECTOR - BRAKE ACTUATOR ASSEMBLY)
    1. Disconnect the A151 brake actuator assembly connector.
    2. Measure the resistance according to the value(s) in the table below.
      GTY1117126Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Front view of wire harness connector
      (to No. 9 Global CAN Junction Connector)      		 *b to Brake Actuator Assembly

      Standard Resistance

      Tester Connection Condition Specified Condition
      A193-10 (CANH) - A193-21 (CANL) Cable disconnected from negative (-) auxiliary battery terminal 1 MΩ or higher

      Result

      Proceed to
      OK
      NG

    Result:

    OK

    REPLACE BRAKE ACTUATOR ASSEMBLY

    Refer to REMOVAL [11/2022 - ]

    Result:

    NG

    REPAIR OR REPLACE CAN BRANCH LINES OR CONNECTOR (NO. 9 GLOBAL CAN JUNCTION CONNECTOR - BRAKE ACTUATOR ASSEMBLY)

  34. CHECK FOR SHORT IN CAN BUS LINES (NO. 11 GLOBAL CAN JUNCTION CONNECTOR - NO. 9 GLOBAL CAN JUNCTION CONNECTOR)
    1. Reconnect the A193 No. 9 global CAN junction connector.
    2. Disconnect the No. 11 global CAN junction connector.
    3. Measure the resistance according to the value(s) in the table below.
      GTY1113776Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Front view of wire harness connector
      (to No. 11 Global CAN Junction Connector)      		 *b to No. 9 Global CAN Junction Connector

      Standard Resistance

      Tester Connection Condition Specified Condition
      I264-3 (CANH) - I264-10 (CANL) Cable disconnected from negative (-) auxiliary battery terminal 108 to 132 Ω

      Result

      Proceed to
      OK
      NG

    Result:

    NG

    REPAIR OR REPLACE CAN MAIN BUS LINES OR CONNECTOR (NO. 11 GLOBAL CAN JUNCTION CONNECTOR - NO. 9 GLOBAL CAN JUNCTION CONNECTOR)

    Result:

    OK

    See step  35

  35. CHECK FOR SHORT IN CAN BUS LINES (NO. 11 GLOBAL CAN JUNCTION CONNECTOR - STEERING SENSOR)
    1. Measure the resistance according to the value(s) in the table below.
      GTY1118602Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Front view of wire harness connector
      (to No. 11 Global CAN Junction Connector)      		 *b to Steering Sensor

      Standard Resistance

      Tester Connection Condition Specified Condition
      I264-5 (CANH) - I264-12 (CANL) Cable disconnected from negative (-) auxiliary battery terminal 200 Ω or higher

      Result

      Proceed to
      OK
      NG

    Result:

    NG

    See step  38

    Result:

    OK

    See step  36

  36. CHECK FOR SHORT IN CAN BUS LINES (NO. 11 GLOBAL CAN JUNCTION CONNECTOR - AIRBAG ECU ASSEMBLY)
    1. Measure the resistance according to the value(s) in the table below.
      GTY1113773Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Front view of wire harness connector
      (to No. 11 Global CAN Junction Connector)      		 *b to Airbag ECU Assembly

      Standard Resistance

      Tester Connection Condition Specified Condition
      I264-1 (CANH) - I264-8 (CANL) Cable disconnected from negative (-) auxiliary battery terminal 200 Ω or higher

      Result

      Proceed to
      OK
      NG

    Result:

    NG

    See step  39

    Result:

    OK

    See step  37

  37. CHECK FOR SHORT IN CAN BUS LINES (NO. 11 GLOBAL CAN JUNCTION CONNECTOR - POWER STEERING ECU ASSEMBLY)
    1. Measure the resistance according to the value(s) in the table below.
      GTY1113775Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Front view of wire harness connector
      (to No. 11 Global CAN Junction Connector)      		 *b to Power Steering ECU Assembly

      Standard Resistance

      Tester Connection Condition Specified Condition
      I264-7 (CANH) - I264-14 (CANL) Cable disconnected from negative (-) auxiliary battery terminal 108 to 132 Ω

      Result

      Proceed to
      OK
      NG

    Result:

    OK

    REPLACE NO. 11 GLOBAL CAN JUNCTION CONNECTOR

    Result:

    NG

    See step  40

  38. CHECK FOR SHORT IN CAN BUS LINES (NO. 11 GLOBAL CAN JUNCTION CONNECTOR - STEERING SENSOR)
    1. Disconnect the I229 steering sensor connector.
    2. Measure the resistance according to the value(s) in the table below.
      GTY1118602Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Front view of wire harness connector
      (to No. 11 Global CAN Junction Connector)      		 *b to Steering Sensor

      Standard Resistance

      Tester Connection Condition Specified Condition
      I264-5 (CANH) - I264-12 (CANL) Cable disconnected from negative (-) auxiliary battery terminal 1 MΩ or higher

      Result

      Proceed to
      OK
      NG

    Result:

    OK

    REPLACE STEERING SENSOR

    Refer to REMOVAL [11/2022 - ]

    Result:

    NG

    REPAIR OR REPLACE CAN BRANCH LINES OR CONNECTOR (NO. 11 GLOBAL CAN JUNCTION CONNECTOR - STEERING SENSOR)

  39. CHECK FOR SHORT IN CAN BUS LINES (NO. 11 GLOBAL CAN JUNCTION CONNECTOR - AIRBAG ECU ASSEMBLY)
    1. Disconnect the I292 airbag ECU assembly connector.
    2. Measure the resistance according to the value(s) in the table below.
      GTY1113773Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Front view of wire harness connector
      (to No. 11 Global CAN Junction Connector)      		 *b to Airbag ECU Assembly

      Standard Resistance

      Tester Connection Condition Specified Condition
      I264-1 (CANH) - I264-8 (CANL) Cable disconnected from negative (-) auxiliary battery terminal 1 MΩ or higher

      Result

      Proceed to
      OK
      NG

    Result:

    OK

    REPLACE AIRBAG ECU ASSEMBLY

    Refer to REMOVAL [11/2022 - ]

    Result:

    NG

    REPAIR OR REPLACE CAN BRANCH LINES OR CONNECTOR (NO. 11 GLOBAL CAN JUNCTION CONNECTOR - AIRBAG ECU ASSEMBLY)

  40. CHECK FOR SHORT IN CAN BUS LINES (NO. 11 GLOBAL CAN JUNCTION CONNECTOR - POWER STEERING ECU ASSEMBLY)
    1. Disconnect the I21 power steering ECU assembly connector.
    2. Measure the resistance according to the value(s) in the table below.
      GTY1113775Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Front view of wire harness connector
      (to No. 11 Global CAN Junction Connector)      		 *b to Power Steering ECU Assembly

      Standard Resistance

      Tester Connection Condition Specified Condition
      I264-7 (CANH) - I264-14 (CANL) Cable disconnected from negative (-) auxiliary battery terminal 1 MΩ or higher

      Result

      Proceed to
      OK
      NG

    Result:

    OK

    REPLACE POWER STEERING ECU ASSEMBLY

    Refer to REMOVAL [11/2022 - ]

    Result:

    NG

    REPAIR OR REPLACE CAN MAIN BUS LINES OR CONNECTOR (NO. 11 GLOBAL CAN JUNCTION CONNECTOR - POWER STEERING ECU ASSEMBLY)

  41. CHECK FOR OPEN IN CAN MAIN BUS LINES (CENTRAL GATEWAY ECU (NETWORK GATEWAY ECU))
    1. Disconnect the central gateway ECU (network gateway ECU) connector.
    2. Measure the resistance according to the value(s) in the table below.

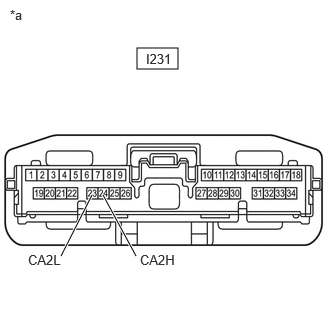

      GTY1115356Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Front view of wire harness connector
      (Central Gateway ECU (Network Gateway ECU))

      Standard Resistance

      Tester Connection Condition Specified Condition
      I231-24 (CA2H) - I231-23 (CA2L) Cable disconnected from negative (-) auxiliary battery terminal 108 to 132 Ω

      Result

      Proceed to
      OK
      NG

    Result:

    OK

    REPLACE CENTRAL GATEWAY ECU (NETWORK GATEWAY ECU)

    Refer to REMOVAL [11/2022 - ]

    Result:

    NG

    See step  42

  42. CHECK FOR OPEN IN CAN MAIN BUS LINES (NO. 9 GLOBAL CAN JUNCTION CONNECTOR - CENTRAL GATEWAY ECU (NETWORK GATEWAY ECU))
    1. Reconnect the I231 central gateway ECU (network gateway ECU) connector.
    2. Disconnect the No. 9 global CAN junction connector.
    3. Measure the resistance according to the value(s) in the table below.
      GTY1117125Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Front view of wire harness connector
      (to No. 9 Global CAN Junction Connector)      		 *b to Central Gateway ECU (Network Gateway ECU)

      Standard Resistance

      Tester Connection Condition Specified Condition
      A193-9 (CANH) - A193-20 (CANL) Cable disconnected from negative (-) auxiliary battery terminal 108 to 132 Ω

      Result

      Proceed to
      OK
      NG

    Result:

    NG

    REPAIR OR REPLACE CAN MAIN BUS LINES OR CONNECTOR (NO. 9 GLOBAL CAN JUNCTION CONNECTOR - CENTRAL GATEWAY ECU (NETWORK GATEWAY ECU))

    Result:

    OK

    See step  43

  43. CHECK FOR OPEN IN CAN MAIN BUS LINES (NO. 9 GLOBAL CAN JUNCTION CONNECTOR - NO. 11 GLOBAL CAN JUNCTION CONNECTOR)
    1. Measure the resistance according to the value(s) in the table below.
      GTY1117124Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Front view of wire harness connector
      (to No. 9 Global CAN Junction Connector)      		 *b to No. 11 Global CAN Junction Connector

      Standard Resistance

      Tester Connection Condition Specified Condition
      A193-11 (CANH) - A193-22 (CANL) Cable disconnected from negative (-) auxiliary battery terminal 108 to 132 Ω

      Result

      Proceed to
      OK
      NG

    Result:

    OK

    REPLACE NO. 9 GLOBAL CAN JUNCTION CONNECTOR

    Result:

    NG

    See step  44

  44. CHECK FOR OPEN IN CAN MAIN BUS LINES (NO. 11 GLOBAL CAN JUNCTION CONNECTOR - NO. 9 GLOBAL CAN JUNCTION CONNECTOR)
    1. Reconnect the A193 No. 9 global CAN junction connector.
    2. Disconnect the No. 11 global CAN junction connector.
    3. Measure the resistance according to the value(s) in the table below.
      GTY1113776Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Front view of wire harness connector
      (to No. 11 Global CAN Junction Connector)      		 *b to No. 9 Global CAN Junction Connector

      Standard Resistance

      Tester Connection Condition Specified Condition
      I264-3 (CANH) - I264-10 (CANL) Cable disconnected from negative (-) auxiliary battery terminal 108 to 132 Ω

      Result

      Proceed to
      OK
      NG

    Result:

    NG

    REPAIR OR REPLACE CAN MAIN BUS LINES OR CONNECTOR (NO. 11 GLOBAL CAN JUNCTION CONNECTOR - NO. 9 GLOBAL CAN JUNCTION CONNECTOR)

    Result:

    OK

    See step  45

  45. CHECK FOR OPEN IN CAN MAIN BUS LINES (NO. 11 GLOBAL CAN JUNCTION CONNECTOR - POWER STEERING ECU ASSEMBLY)
    1. Measure the resistance according to the value(s) in the table below.
      GTY1113775Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Front view of wire harness connector
      (to No. 11 Global CAN Junction Connector)      		 *b to Power Steering ECU Assembly

      Standard Resistance

      Tester Connection Condition Specified Condition
      I264-7 (CANH) - I264-14 (CANL) Cable disconnected from negative (-) auxiliary battery terminal 108 to 132 Ω

      Result

      Proceed to
      OK
      NG

    Result:

    OK

    REPLACE NO. 11 GLOBAL CAN JUNCTION CONNECTOR

    Result:

    NG

    See step  46

  46. CHECK FOR OPEN IN CAN MAIN BUS LINES (POWER STEERING ECU ASSEMBLY)
    1. Reconnect the I264 No. 11 global CAN junction connector.
    2. Disconnect the power steering ECU assembly connector.
    3. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      I21-7 (CANH) - I21-8 (CANL) Cable disconnected from negative (-) auxiliary battery terminal 108 to 132 Ω
      GTY1032158Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Front view of wire harness connector
      (to Power Steering ECU Assembly)

      Result

      Proceed to
      OK
      NG

    Result:

    OK

    REPLACE POWER STEERING ECU ASSEMBLY

    Refer to REMOVAL [11/2022 - ]

    Result:

    NG

    REPAIR OR REPLACE CAN MAIN BUS LINES OR CONNECTOR (NO. 11 GLOBAL CAN JUNCTION CONNECTOR - POWER STEERING ECU ASSEMBLY)

scientia non olet · About LEMON Manuals
