Check Bus 3 Line [11/2023 - ]: Procedure

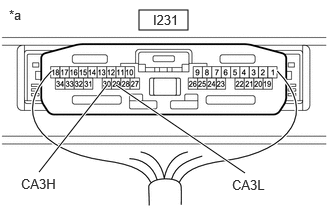

- CHECK FOR OPEN IN CAN MAIN BUS LINES
- Disconnect the cable from the negative (-) auxiliary battery terminal.
- Measure the resistance according to the value(s) in the table below.
*a Component with harness connected
(Central Gateway ECU (Network Gateway ECU))Standard Resistance
Tester Connection Condition Specified Condition I231-30 (CA3H) - I231-29 (CA3L) Cable disconnected from negative (-) auxiliary battery terminal Below 70 Ω Result
Proceed to OK NG
Result:
NG
See step 32
Result:
OK
See step 2
- CHECK FOR SHORT IN CAN BUS LINES
- Measure the resistance according to the value(s) in the table below.
*a Component with harness connected
(Central Gateway ECU (Network Gateway ECU))Standard Resistance
Tester Connection Condition Specified Condition I231-30 (CA3H) - I231-29 (CA3L) Cable disconnected from negative (-) auxiliary battery terminal 54 Ω or higher Result
Proceed to OK NG
Result:
NG
See step 23
Result:
OK
See step 3
- Measure the resistance according to the value(s) in the table below.

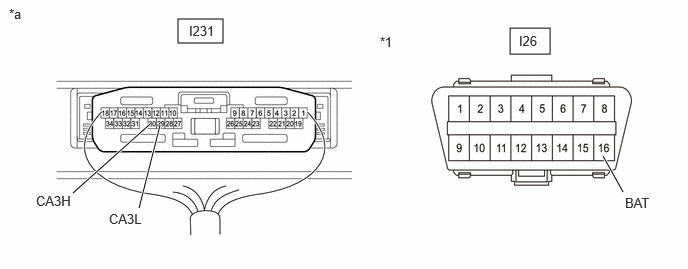

- CHECK FOR SHORT TO +B IN CAN BUS LINE
- Measure the resistance according to the value(s) in the table below.
*1 DLC3 - - *a Component with harness connected (Central Gateway ECU (Network Gateway ECU)) - - Standard Resistance
Tester Connection Condition Specified Condition I231-30 (CA3H) - I26-16 (BAT) Cable disconnected from negative (-) auxiliary battery terminal 6 kΩ or higher I231-29 (CA3L) - I26-16 (BAT) Result
Proceed to OK NG
Result:
NG
See step 14
Result:
OK
See step 4
- Measure the resistance according to the value(s) in the table below.

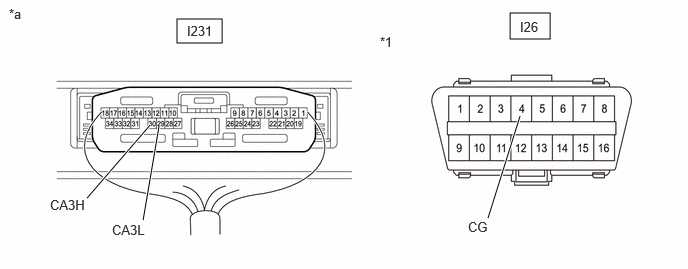

- CHECK FOR SHORT TO GND IN CAN BUS LINE
- Measure the resistance according to the value(s) in the table below.
*1 DLC3 - - *a Component with harness connected (Central Gateway ECU (Network Gateway ECU)) - - Standard Resistance
Tester Connection Condition Specified Condition I231-30 (CA3H) - I26-4 (CG) Cable disconnected from negative (-) auxiliary battery terminal 200 Ω or higher I231-29 (CA3L) - I26-4 (CG) Result
Proceed to OK NG
Result:
OK
REPLACE CENTRAL GATEWAY ECU (NETWORK GATEWAY ECU)
Refer to REMOVAL [11/2022 - ]
Result:
NG
See step 5
- Measure the resistance according to the value(s) in the table below.
- CHECK FOR SHORT TO GND IN CAN BUS LINE (NO. 15 GLOBAL CAN JUNCTION CONNECTOR - CENTRAL GATEWAY ECU (NETWORK GATEWAY ECU))
- Disconnect the No. 15 global CAN junction connector.
- Measure the resistance according to the value(s) in the table below.
*1 DLC3 - - *a Front view of wire harness connector
(to No. 15 Global CAN Junction Connector)*b to Central Gateway ECU (Network Gateway ECU) Standard Resistance
Tester Connection Condition Specified Condition I291-3 (CANH) - I26-4 (CG) Cable disconnected from negative (-) auxiliary battery terminal 200 Ω or higher I291-14 (CANL) - I26-4 (CG) Result
Proceed to OK NG
Result:
NG
See step 10
Result:
OK
See step 6
- CHECK FOR SHORT TO GND IN CAN BUS LINE (NO. 15 GLOBAL CAN JUNCTION CONNECTOR - RADIO AND DISPLAY RECEIVER ASSEMBLY)
- Measure the resistance according to the value(s) in the table below.
*1 DLC3 - - *a Front view of wire harness connector
(to No. 15 Global CAN Junction Connector)*b to Radio and Display Receiver Assembly Standard Resistance
Tester Connection Condition Specified Condition I291-1 (CANH) - I26-4 (CG) Cable disconnected from negative (-) auxiliary battery terminal 200 Ω or higher I291-12 (CANL) - I26-4 (CG) Result
Proceed to OK NG
Result:
NG
See step 11
Result:
OK
See step 7
- Measure the resistance according to the value(s) in the table below.
- CHECK VEHICLE TYPE
- Check for vehicle type.
Result
Result Proceed to w/ Telematics Transceiver A w/o Telematics Transceiver B
Result:
B
See step 9
Result:
A
See step 8
- Check for vehicle type.
- CHECK FOR SHORT TO GND IN CAN BUS LINE (NO. 15 GLOBAL CAN JUNCTION CONNECTOR - DCM (TELEMATICS TRANSCEIVER))
- Measure the resistance according to the value(s) in the table below.
*1 DLC3 - - *a Front view of wire harness connector
(to No. 15 Global CAN Junction Connector)*b to DCM (Telematics Transceiver) Standard Resistance
Tester Connection Condition Specified Condition I291-2 (CANH) - I26-4 (CG) Cable disconnected from negative (-) auxiliary battery terminal 200 Ω or higher I291-13 (CANL) - I26-4 (CG) Result
Proceed to OK NG
Result:
NG
See step 12
Result:
OK
See step 9
- Measure the resistance according to the value(s) in the table below.
- CHECK FOR SHORT TO GND IN CAN BUS LINE (NO. 15 GLOBAL CAN JUNCTION CONNECTOR - COMBINATION METER ASSEMBLY)
- Measure the resistance according to the value(s) in the table below.
*1 DLC3 - - *a Front view of wire harness connector
(to No. 15 Global CAN Junction Connector)*b to Combination Meter Assembly Standard Resistance
Tester Connection Condition Specified Condition I291-4 (CANH) - I26-4 (CG) Cable disconnected from negative (-) auxiliary battery terminal 200 Ω or higher I291-15 (CANL) - I26-4 (CG) Result
Proceed to OK NG
Result:
OK
REPLACE NO. 15 GLOBAL CAN JUNCTION CONNECTOR
Result:
NG
See step 13
- Measure the resistance according to the value(s) in the table below.
- CHECK FOR SHORT TO GND IN CAN BUS LINE (NO. 15 GLOBAL CAN JUNCTION CONNECTOR - CENTRAL GATEWAY ECU (NETWORK GATEWAY ECU))
- Disconnect the I231 central gateway ECU (network gateway ECU) connector
- Measure the resistance according to the value(s) in the table below.
*1 DLC3 - - *a Front view of wire harness connector
(to No. 15 Global CAN Junction Connector)*b to Central Gateway ECU (Network Gateway ECU) Standard Resistance
Tester Connection Condition Specified Condition I291-3 (CANH) - I26-4 (CG) Cable disconnected from negative (-) auxiliary battery terminal 200 Ω or higher I291-14 (CANL) - I26-4 (CG) Result
Proceed to OK NG
Result:
OK
REPLACE CENTRAL GATEWAY ECU (NETWORK GATEWAY ECU)
Refer to REMOVAL [11/2022 - ]
Result:
NG
REPAIR OR REPLACE CAN MAIN BUS LINE OR CONNECTOR (NO. 15 GLOBAL CAN JUNCTION CONNECTOR - CENTRAL GATEWAY ECU (NETWORK GATEWAY ECU))
- CHECK FOR SHORT TO GND IN CAN BUS LINE (NO. 15 GLOBAL CAN JUNCTION CONNECTOR - RADIO AND DISPLAY RECEIVER ASSEMBLY)
- Disconnect the I253 radio and display receiver assembly connector.
- Measure the resistance according to the value(s) in the table below.
*1 DLC3 - - *a Front view of wire harness connector
(to No. 15 Global CAN Junction Connector)*b to Radio and Display Receiver Assembly Standard Resistance
Tester Connection Condition Specified Condition I291-1 (CANH) - I26-4 (CG) Cable disconnected from negative (-) auxiliary battery terminal 200 Ω or higher I291-12 (CANL) - I26-4 (CG) Result
Proceed to OK NG
Result:
OK
REPLACE RADIO AND DISPLAY RECEIVER ASSEMBLY
Refer to REMOVAL [11/2022 - ]
Result:
NG
REPAIR OR REPLACE CAN BRANCH LINE OR CONNECTOR (NO. 15 GLOBAL CAN JUNCTION CONNECTOR - RADIO AND DISPLAY RECEIVER ASSEMBLY)
- CHECK FOR SHORT TO GND IN CAN BUS LINE (NO. 15 GLOBAL CAN JUNCTION CONNECTOR - DCM (TELEMATICS TRANSCEIVER))
- Disconnect the I200 DCM (telematics transceiver) connector.
- Measure the resistance according to the value(s) in the table below.
*1 DLC3 - - *a Front view of wire harness connector
(to No. 15 Global CAN Junction Connector)*b to DCM (Telematics Transceiver) Standard Resistance
Tester Connection Condition Specified Condition I291-2 (CANH) - I26-4 (CG) Cable disconnected from negative (-) auxiliary battery terminal 200 Ω or higher I291-13 (CANL) - I26-4 (CG) Result
Proceed to OK NG
Result:
OK
REPLACE DCM (TELEMATICS TRANSCEIVER)
Refer to REMOVAL [09/2021 - ]
Result:
NG
REPAIR OR REPLACE CAN BRANCH LINE OR CONNECTOR (NO. 15 GLOBAL CAN JUNCTION CONNECTOR - DCM (TELEMATICS TRANSCEIVER))
- CHECK FOR SHORT TO GND IN CAN BUS LINE (NO. 15 GLOBAL CAN JUNCTION CONNECTOR - COMBINATION METER ASSEMBLY)
- Disconnect the I5 combination meter assembly connector.
- Measure the resistance according to the value(s) in the table below.
*1 DLC3 - - *a Front view of wire harness connector
(to No. 15 Global CAN Junction Connector)*b to Combination Meter Assembly Standard Resistance
Tester Connection Condition Specified Condition I291-4 (CANH) - I26-4 (CG) Cable disconnected from negative (-) auxiliary battery terminal 200 Ω or higher I291-15 (CANL) - I26-4 (CG) Result
Proceed to OK NG
Result:
OK
REPLACE COMBINATION METER ASSEMBLY
Refer to REMOVAL [11/2023 - ]
Result:
NG
REPAIR OR REPLACE CAN MAIN BUS LINE OR CONNECTOR (NO. 15 GLOBAL CAN JUNCTION CONNECTOR - COMBINATION METER ASSEMBLY)
- CHECK FOR SHORT TO B+ IN CAN BUS LINE (NO. 15 GLOBAL CAN JUNCTION CONNECTOR - CENTRAL GATEWAY ECU (NETWORK GATEWAY ECU))
- Disconnect the No. 15 global CAN junction connector.
- Measure the resistance according to the value(s) in the table below.
*1 DLC3 - - *a Front view of wire harness connector
(to No. 15 Global CAN Junction Connector)*b to Central Gateway ECU (Network Gateway ECU) Standard Resistance
Tester Connection Condition Specified Condition I291-3 (CANH) - I26-16 (BAT) Cable disconnected from negative (-) auxiliary battery terminal 6 kΩ or higher I291-14 (CANL) - I26-16 (BAT) Result
Proceed to OK NG
Result:
NG
See step 19
Result:
OK
See step 15
- CHECK FOR SHORT TO B+ IN CAN BUS LINE (NO. 15 GLOBAL CAN JUNCTION CONNECTOR - RADIO AND DISPLAY RECEIVER ASSEMBLY)
- Measure the resistance according to the value(s) in the table below.
*1 DLC3 - - *a Front view of wire harness connector
(to No. 15 Global CAN Junction Connector)*b to Radio and Display Receiver Assembly Standard Resistance
Tester Connection Condition Specified Condition I291-1 (CANH) - I26-16 (BAT) Cable disconnected from negative (-) auxiliary battery terminal 6 kΩ or higher I291-12 (CANL) - I26-16 (BAT) Result
Proceed to OK NG
Result:
NG
See step 20
Result:
OK
See step 16
- Measure the resistance according to the value(s) in the table below.
- CHECK VEHICLE TYPE
- Check for vehicle type.
Result
Result Proceed to w/ Telematics Transceiver A w/o Telematics Transceiver B
Result:
B
See step 18
Result:
A
See step 17
- Check for vehicle type.
- CHECK FOR SHORT TO B+ IN CAN BUS LINE (NO. 15 GLOBAL CAN JUNCTION CONNECTOR - DCM (TELEMATICS TRANSCEIVER))
- Measure the resistance according to the value(s) in the table below.
*1 DLC3 - - *a Front view of wire harness connector
(to No. 15 Global CAN Junction Connector)*b to DCM (Telematics Transceiver) Standard Resistance
Tester Connection Condition Specified Condition I291-2 (CANH) - I26-16 (BAT) Cable disconnected from negative (-) auxiliary battery terminal 6 kΩ or higher I291-13 (CANL) - I26-16 (BAT) Result
Proceed to OK NG
Result:
NG
See step 21
Result:
OK
See step 18
- Measure the resistance according to the value(s) in the table below.
- CHECK FOR SHORT TO B+ IN CAN BUS LINE (NO. 15 GLOBAL CAN JUNCTION CONNECTOR - COMBINATION METER ASSEMBLY)
- Measure the resistance according to the value(s) in the table below.
*1 DLC3 - - *a Front view of wire harness connector
(to No. 15 Global CAN Junction Connector)*b to Combination Meter Assembly Standard Resistance
Tester Connection Condition Specified Condition I291-4 (CANH) - I26-16 (BAT) Cable disconnected from negative (-) auxiliary battery terminal 6 kΩ or higher I291-15 (CANL) - I26-16 (BAT) Result
Proceed to OK NG
Result:
OK
REPLACE NO. 15 GLOBAL CAN JUNCTION CONNECTOR
Result:
NG
See step 22
- Measure the resistance according to the value(s) in the table below.
- CHECK FOR SHORT TO B+ IN CAN BUS LINE (NO. 15 GLOBAL CAN JUNCTION CONNECTOR - CENTRAL GATEWAY ECU (NETWORK GATEWAY ECU))
- Disconnect the I231 central gateway ECU (network gateway ECU) connector.
- Measure the resistance according to the value(s) in the table below.
*1 DLC3 - - *a Front view of wire harness connector
(to No. 15 Global CAN Junction Connector)*b to Central Gateway ECU (Network Gateway ECU) Standard Resistance
Tester Connection Condition Specified Condition I291-3 (CANH) - I26-16 (BAT) Cable disconnected from negative (-) auxiliary battery terminal 6 kΩ or higher I291-14 (CANL) - I26-16 (BAT) Result
Proceed to OK NG
Result:
OK
REPLACE CENTRAL GATEWAY ECU (NETWORK GATEWAY ECU)
Refer to REMOVAL [11/2022 - ]
Result:
NG
REPAIR OR REPLACE CAN MAIN BUS LINE OR CONNECTOR (NO. 15 GLOBAL CAN JUNCTION CONNECTOR - CENTRAL GATEWAY ECU (NETWORK GATEWAY ECU))
- CHECK FOR SHORT TO B+ IN CAN BUS LINE (NO. 15 GLOBAL CAN JUNCTION CONNECTOR - RADIO AND DISPLAY RECEIVER ASSEMBLY)
- Disconnect the I253 radio and display receiver assembly connector.
- Measure the resistance according to the value(s) in the table below.
*1 DLC3 - - *a Front view of wire harness connector
(to No. 15 Global CAN Junction Connector)*b to Radio and Display Receiver Assembly Standard Resistance
Tester Connection Condition Specified Condition I291-1 (CANH) - I26-16 (BAT) Cable disconnected from negative (-) auxiliary battery terminal 6 kΩ or higher I291-12 (CANL) - I26-16 (BAT) Result
Proceed to OK NG
Result:
OK
REPLACE RADIO AND DISPLAY RECEIVER ASSEMBLY
Refer to REMOVAL [11/2022 - ]
Result:
NG
REPAIR OR REPLACE CAN BRANCH LINE OR CONNECTOR (NO. 15 GLOBAL CAN JUNCTION CONNECTOR - RADIO AND DISPLAY RECEIVER ASSEMBLY)
- CHECK FOR SHORT TO B+ IN CAN BUS LINE (NO. 15 GLOBAL CAN JUNCTION CONNECTOR - DCM (TELEMATICS TRANSCEIVER))
- Disconnect the I200 DCM (telematics transceiver) connector.
- Measure the resistance according to the value(s) in the table below.
*1 DLC3 - - *a Front view of wire harness connector
(to No. 15 Global CAN Junction Connector)*b to DCM (Telematics Transceiver) Standard Resistance
Tester Connection Condition Specified Condition I291-2 (CANH) - I26-16 (BAT) Cable disconnected from negative (-) auxiliary battery terminal 6 kΩ or higher I291-13 (CANL) - I26-16 (BAT) Result
Proceed to OK NG
Result:
OK
REPLACE DCM (TELEMATICS TRANSCEIVER)
Refer to REMOVAL [09/2021 - ]
Result:
NG
REPAIR OR REPLACE CAN BRANCH LINE OR CONNECTOR (NO. 15 GLOBAL CAN JUNCTION CONNECTOR - DCM (TELEMATICS TRANSCEIVER))
- CHECK FOR SHORT TO B+ IN CAN BUS LINE (NO. 15 GLOBAL CAN JUNCTION CONNECTOR - COMBINATION METER ASSEMBLY)
- Disconnect the I5 combination meter assembly connector.
- Measure the resistance according to the value(s) in the table below.
*1 DLC3 - - *a Front view of wire harness connector
(to No. 15 Global CAN Junction Connector)*b to Combination Meter Assembly Standard Resistance
Tester Connection Condition Specified Condition I291-4 (CANH) - I26-16 (BAT) Cable disconnected from negative (-) auxiliary battery terminal 6 kΩ or higher I291-15 (CANL) - I26-16 (BAT) Result
Proceed to OK NG
Result:
OK
REPLACE COMBINATION METER ASSEMBLY
Refer to REMOVAL [11/2023 - ]
Result:
NG
REPAIR OR REPLACE CAN MAIN BUS LINE OR CONNECTOR (NO. 15 GLOBAL CAN JUNCTION CONNECTOR - COMBINATION METER ASSEMBLY)
- CHECK FOR SHORT IN CAN BUS LINES (NO. 15 GLOBAL CAN JUNCTION CONNECTOR - CENTRAL GATEWAY ECU (NETWORK GATEWAY ECU))
- Disconnect the No. 15 global CAN junction connector.
- Measure the resistance according to the value(s) in the table below.
*a Front view of wire harness connector
(to No. 15 Global CAN Junction Connector)*b to Central Gateway ECU (Network Gateway ECU) Standard Resistance
Tester Connection Condition Specified Condition I291-3 (CANH) - I291-14 (CANL) Cable disconnected from negative (-) auxiliary battery terminal 108 to 132 Ω Result
Proceed to OK NG
Result:
NG
See step 28
Result:
OK
See step 24
- CHECK FOR SHORT IN CAN BUS LINES (NO. 15 GLOBAL CAN JUNCTION CONNECTOR - RADIO AND DISPLAY RECEIVER ASSEMBLY)
- Measure the resistance according to the value(s) in the table below.
*a Front view of wire harness connector
(to No. 15 Global CAN Junction Connector)*b to Radio and Display Receiver Assembly Standard Resistance
Tester Connection Condition Specified Condition I291-1 (CANH) - I291-12 (CANL) Cable disconnected from negative (-) auxiliary battery terminal 200 Ω or higher Result
Proceed to OK NG
Result:
NG
See step 29
Result:
OK
See step 25
- Measure the resistance according to the value(s) in the table below.
- CHECK VEHICLE TYPE
- Check for vehicle type.
Result
Result Proceed to w/ Telematics Transceiver A w/o Telematics Transceiver B
Result:
B
See step 27
Result:
A
See step 26
- Check for vehicle type.
- CHECK FOR SHORT IN CAN BUS LINES (NO. 15 GLOBAL CAN JUNCTION CONNECTOR - DCM (TELEMATICS TRANSCEIVER))
- Measure the resistance according to the value(s) in the table below.
*a Front view of wire harness connector
(to No. 15 Global CAN Junction Connector)*b to DCM (Telematics Transceiver) Standard Resistance
Tester Connection Condition Specified Condition I291-2 (CANH) - I291-13 (CANL) Cable disconnected from negative (-) auxiliary battery terminal 200 Ω or higher Result
Proceed to OK NG
Result:
NG
See step 30
Result:
OK
See step 27
- Measure the resistance according to the value(s) in the table below.
- CHECK FOR SHORT IN CAN BUS LINES (NO. 15 GLOBAL CAN JUNCTION CONNECTOR - COMBINATION METER ASSEMBLY)
- Measure the resistance according to the value(s) in the table below.
*a Front view of wire harness connector
(to No. 15 Global CAN Junction Connector)*b to Combination Meter Assembly Standard Resistance
Tester Connection Condition Specified Condition I291-4 (CANH) - I291-15 (CANL) Cable disconnected from negative (-) auxiliary battery terminal 108 to 132 Ω Result
Proceed to OK NG
Result:
OK
REPLACE NO. 15 GLOBAL CAN JUNCTION CONNECTOR
Result:
NG
See step 31
- Measure the resistance according to the value(s) in the table below.
- CHECK FOR SHORT IN CAN BUS LINES (NO. 15 GLOBAL CAN JUNCTION CONNECTOR - CENTRAL GATEWAY ECU (NETWORK GATEWAY ECU))
- Disconnect the I231 central gateway ECU (network gateway ECU) connector.
- Measure the resistance according to the value(s) in the table below.
*a Front view of wire harness connector
(to No. 15 Global CAN Junction Connector)*b to Central Gateway ECU (Network Gateway ECU) Standard Resistance
Tester Connection Condition Specified Condition I291-3 (CANH) - I291-14 (CANL) Cable disconnected from negative (-) auxiliary battery terminal 1 MΩ or higher Result
Proceed to OK NG
Result:
OK
REPLACE CENTRAL GATEWAY ECU (NETWORK GATEWAY ECU)
Refer to REMOVAL [11/2022 - ]
Result:
NG
REPAIR OR REPLACE CAN MAIN BUS LINES OR CONNECTOR (NO. 15 GLOBAL CAN JUNCTION CONNECTOR - CENTRAL GATEWAY ECU (NETWORK GATEWAY ECU))
- CHECK FOR SHORT IN CAN BUS LINES (NO. 15 GLOBAL CAN JUNCTION CONNECTOR - RADIO AND DISPLAY RECEIVER ASSEMBLY)
- Disconnect the I253 radio and display receiver assembly connector.
- Measure the resistance according to the value(s) in the table below.
*a Front view of wire harness connector
(to No. 15 Global CAN Junction Connector)*b to Radio and Display Receiver Assembly Standard Resistance
Tester Connection Condition Specified Condition I291-1 (CANH) - I291-12 (CANL) Cable disconnected from negative (-) auxiliary battery terminal 1 MΩ or higher Result
Proceed to OK NG
Result:
OK
REPLACE RADIO AND DISPLAY RECEIVER ASSEMBLY
Refer to REMOVAL [11/2022 - ]
Result:
NG
REPAIR OR REPLACE CAN BRANCH LINES OR CONNECTOR (NO. 15 GLOBAL CAN JUNCTION CONNECTOR - RADIO AND DISPLAY RECEIVER ASSEMBLY)
- CHECK FOR SHORT IN CAN BUS LINES (NO. 15 GLOBAL CAN JUNCTION CONNECTOR - DCM (TELEMATICS TRANSCEIVER))
- Disconnect the I200 DCM (telematics transceiver) connector.
- Measure the resistance according to the value(s) in the table below.
*a Front view of wire harness connector
(to No. 15 Global CAN Junction Connector)*b to DCM (Telematics Transceiver) Standard Resistance
Tester Connection Condition Specified Condition I291-2 (CANH) - I291-13 (CANL) Cable disconnected from negative (-) auxiliary battery terminal 1 MΩ or higher Result
Proceed to OK NG
Result:
OK
REPLACE DCM (TELEMATICS TRANSCEIVER)
Refer to REMOVAL [09/2021 - ]
Result:
NG
REPAIR OR REPLACE CAN BRANCH LINES OR CONNECTOR (NO. 15 GLOBAL CAN JUNCTION CONNECTOR - DCM (TELEMATICS TRANSCEIVER))
- CHECK FOR SHORT IN CAN BUS LINES (NO. 15 GLOBAL CAN JUNCTION CONNECTOR - COMBINATION METER ASSEMBLY)
- Disconnect the I5 combination meter assembly connector.
- Measure the resistance according to the value(s) in the table below.
*a Front view of wire harness connector
(to No. 15 Global CAN Junction Connector)*b to Combination Meter Assembly Standard Resistance
Tester Connection Condition Specified Condition I291-4 (CANH) - I291-15 (CANL) Cable disconnected from negative (-) auxiliary battery terminal 1 MΩ or higher Result
Proceed to OK NG
Result:
OK
REPLACE COMBINATION METER ASSEMBLY
Refer to REMOVAL [11/2023 - ]
Result:
NG
REPAIR OR REPLACE CAN MAIN BUS LINES OR CONNECTOR (NO. 15 GLOBAL CAN JUNCTION CONNECTOR - COMBINATION METER ASSEMBLY)
- CHECK FOR OPEN IN CAN BUS LINES (CENTRAL GATEWAY ECU (NETWORK GATEWAY ECU))
- Disconnect the central gateway ECU (network gateway ECU) connector.
- Measure the resistance according to the value(s) in the table below.
Standard Resistance
Tester Connection Condition Specified Condition I231-30 (CA3H) - I231-29 (CA3L) Cable disconnected from negative (-) auxiliary battery terminal 108 to 132 Ω *a Front view of wire harness connector
(to Central Gateway ECU (Network Gateway ECU))Result
Proceed to OK NG
Result:
OK
REPLACE CENTRAL GATEWAY ECU (NETWORK GATEWAY ECU)
Refer to REMOVAL [11/2022 - ]
Result:
NG
See step 33
- CHECK FOR OPEN IN CAN BUS LINES (NO. 15 GLOBAL CAN JUNCTION CONNECTOR - CENTRAL GATEWAY ECU (NETWORK GATEWAY ECU))
- Reconnect the I231 central gateway ECU (network gateway ECU) connector.
- Disconnect the No. 15 global CAN junction connector.
- Measure the resistance according to the value(s) in the table below.
*a Front view of wire harness connector
(to No. 15 Global CAN Junction Connector)*b to Central Gateway ECU (Network Gateway ECU) Standard Resistance
Tester Connection Condition Specified Condition I291-3 (CANH) - I291-14 (CANL) Cable disconnected from negative (-) auxiliary battery terminal 108 to 132 Ω Result
Proceed to OK NG
Result:
NG
REPAIR OR REPLACE CAN MAIN BUS LINES OR CONNECTOR (NO. 15 GLOBAL CAN JUNCTION CONNECTOR - CENTRAL GATEWAY ECU (NETWORK GATEWAY ECU))
Result:
OK
See step 34
- CHECK FOR OPEN IN CAN BUS LINES (NO. 15 GLOBAL CAN JUNCTION CONNECTOR - COMBINATION METER ASSEMBLY)
- Measure the resistance according to the value(s) in the table below.
*a Front view of wire harness connector
(to No. 15 Global CAN Junction Connector)*b to Combination Meter Assembly Standard Resistance
Tester Connection Condition Specified Condition I291-4 (CANH) - I291-15 (CANL) Cable disconnected from negative (-) auxiliary battery terminal 108 to 132 Ω Result
Proceed to OK NG
Result:
OK
REPLACE NO. 15 GLOBAL CAN JUNCTION CONNECTOR
Result:
NG
See step 35
- Measure the resistance according to the value(s) in the table below.
- CHECK FOR OPEN IN CAN BUS LINES (COMBINATION METER ASSEMBLY)
- Reconnect the I291 No. 15 global CAN junction connector.
- Disconnect the combination meter assembly connector.
- Measure the resistance according to the value(s) in the table below.
*a Front view of wire harness connector
(to Combination Meter Assembly)Standard Resistance
Tester Connection Condition Specified Condition I5-31 (CANH) - I5-14 (CANL) Cable disconnected from negative (-) auxiliary battery terminal 108 to 132 Ω Result
Proceed to OK NG
Result:
OK
REPLACE COMBINATION METER ASSEMBLY
Refer to REMOVAL [11/2023 - ]
Result:
NG
REPAIR OR REPLACE CAN MAIN BUS LINES OR CONNECTOR (COMBINATION METER ASSEMBLY - NO. 15 GLOBAL CAN JUNCTION CONNECTOR)
